A100-EPP-GNPN-S70

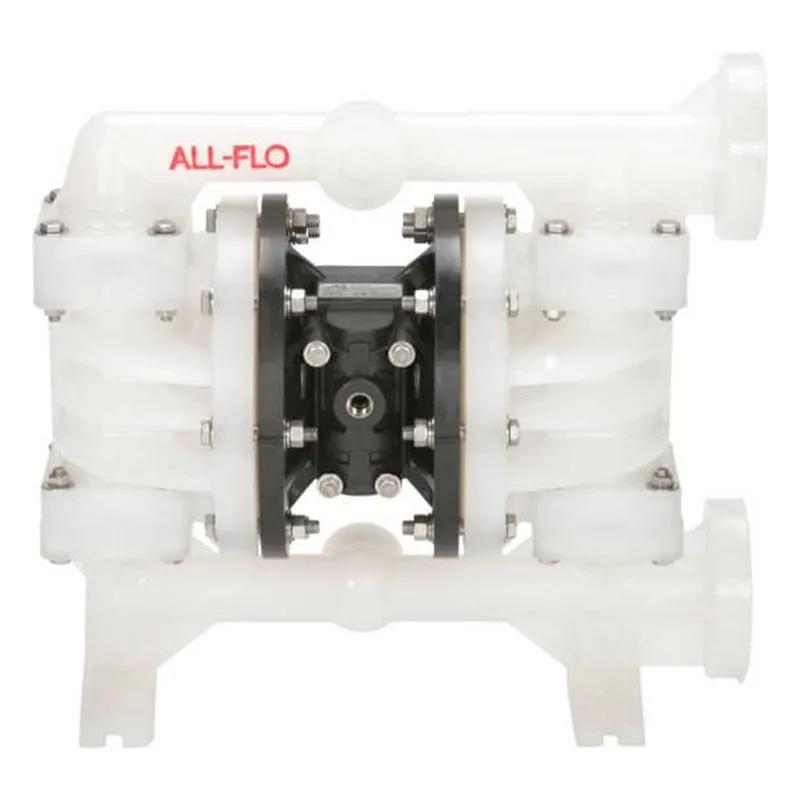

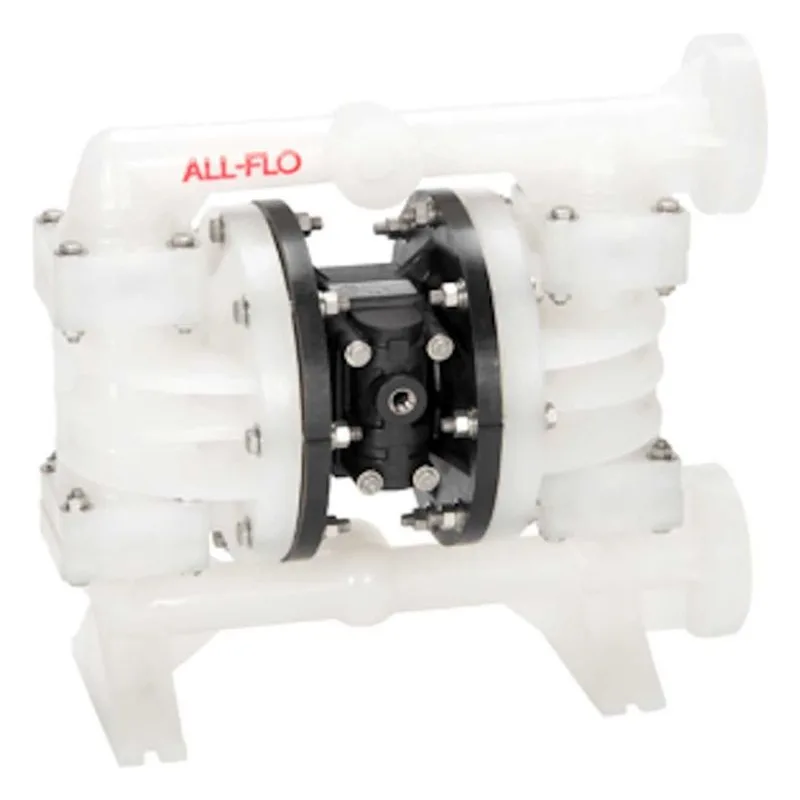

All-Pro A100-EPP-GNPN-S70 A100 Plastic Non Metallic Diaphragm Pumps. 41 GPM Maximum Flow Rate with a Max Pressure of120 PSI. Capable of handling 1/4" Diameter Solids with a 1" Liquid Inlet and a 1" Liquid Discharge and 15 ft-H2O (4.6 m-H2O) Dry, 26 ft-H2O (7.9 m-H2O) Wet Maximum Lift. Build Materials consist of a Polypropylene Intermediate-Pneumatic Shift Air Section, Bunalast Diaphragm, Buna-N Valve/Ball and Buna-N O-Rings.
List: $1,458.00
$1,195.56
1
Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.
Returns accepted within 30 days. View Returns Policy
Estimate Shipping
Overview
All-Pro A100-EPP-GNPN-S70 A100 Plastic Non Metallic Diaphragm Pumps. 41 GPM Maximum Flow Rate with a Max Pressure of120 PSI. Capable of handling 1/4" Diameter Solids with a 1" Liquid Inlet and a 1" Liquid Discharge and 15 ft-H2O (4.6 m-H2O) Dry, 26 ft-H2O (7.9 m-H2O) Wet Maximum Lift. Build Materials consist of a Polypropylene Intermediate-Pneumatic Shift Air Section, Bunalast Diaphragm, Buna-N Valve/Ball and Buna-N O-Rings.
Literature & Manuals
Find the manuals, product sheets and all the information you need
| Type | Title | Link |
|---|---|---|
| Brochures | All-Flo A100 Metallic AODD Exploded View Brochure | View |
| Brochures | All-Flo A100 Metallic AODD Specifications Sheet Brochure | View |
| Installation & Operation Manuals | All-Flo A100 Metallic AODD IOM Manual | View |
