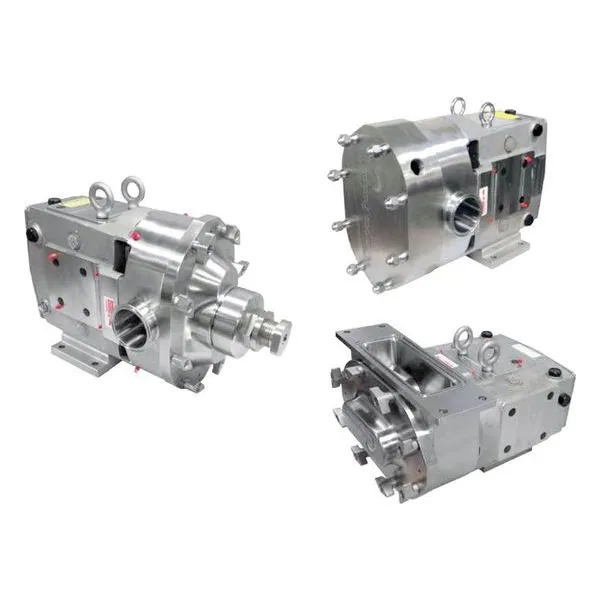

ZP Series ZP1 / ZP+1 / ZP2 / ZP3

AMPCO ZP Positive Displacement Pumps

ZP1 / ZP1+ / ZP2 / ZP3

The ZP Series establishes a new standard of value, quality and features in the positive displacement pump market.

In 2010, Ampco introduced the ZP1 and ZP2 Series of positive displacement pumps. The ZP Series offers more standard features than competing pumps including a stainless steel gearcase. ZP1 and ZP2 Series pumps are part-for-part, 100% interchangeable with the competition.

Raising the bar in 2012 Ampco introduced the ZP3 Series. The patented ZP3 is fully CIP-able without modification or loss of efficiency. The front-loading seal design allows for fast and easy maintenance without removing process piping or the heavy fluid end. The unique rotor case design eliminates all dead zones within the pump making the ZP3 the only fully CIP-able choice in sanitary positive displacement pumps. The ZP3 is EHEDG certified; in conformance with 3A standards and the ATEX Directive.

Further advancing the traditional design features of positive displacement pumps Ampco introduced the patented ZP1+ Series, which is designed to allow o-ring seals to be changed without disconnecting the pump from the piping system. Both the ZP3 and ZP1+ set a new standard for sanitary processing. The entire ZP Series offers quality, enhanced features, value and proven performance.

Available Options

• Rectangular inlets

• Heating jackets

• Pressure relief valves

• Aseptic design

• Optional rotor designs

• Full assemblies

• Flat body profile

• Tethered wing nuts

• Cover handles

• Consult with engineering for additional options

ZP Performance Specifications Range

• Capacity range: 0.1 to 648 gpm (0.02 to 147.2 m 3 /hr)

• Pressure range: up to 500 psi/34 Bar

• Temperature range: -40˚F to +300˚F (-40˚C to +150˚C) Note: Hot clearances required for high temp operation

• Viscosity range: 1 to 1,000,000 CPS
