47776309001

Name: 47776309001 PumpCatalog ARO
Brand: ARO
SKU: 47776309001
Price: 5008.90 USD
Availability: InStock

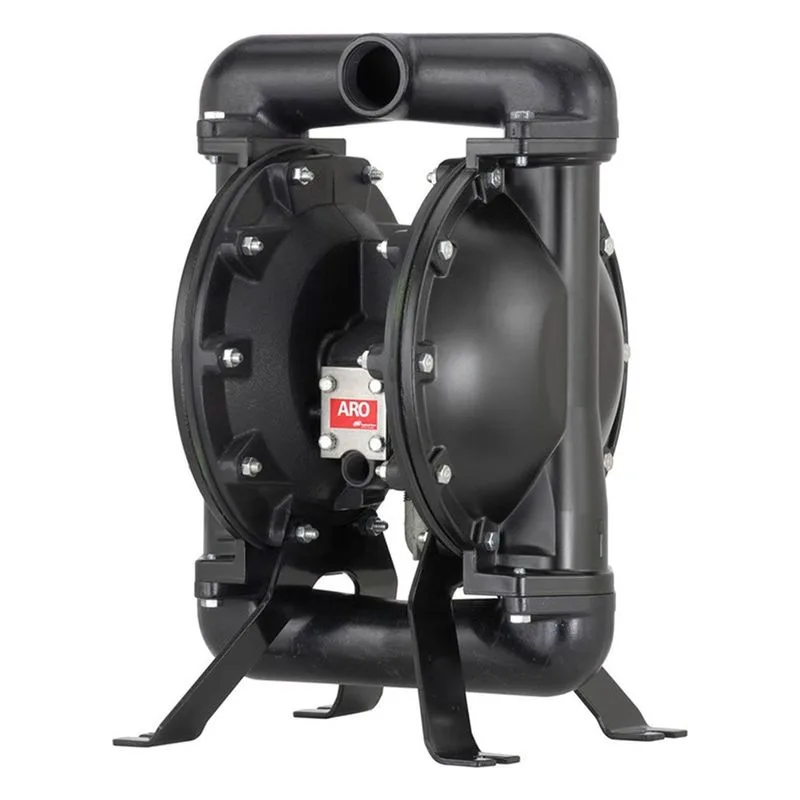

ARO 47776309001 1-1/2" Metallic Pro Series AODD Diaphragm Pump.

Brand: ARO

Series:

1-1 / 2” Metallic Pro

Item: 47776309001

List: ~~$6,861.50~~

$5,008.90

Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.

Returns accepted within 30 days. View Returns Policy

Estimate Shipping

Zip Code

Overview

ARO 47776309001 1-1/2" Metallic Pro Series AODD Diaphragm Pump.

Literature & Manuals

Find the manuals, product sheets and all the information you need

Type	Title	Link
Brochures	Pro Series Diaphragm Piston Pumps Brochure	View
Data Sheets	66615X-XXX-C 1 1/2" Metallic Datasheet	View
Installation & Operation Manuals	66615X-XXX C 1 1/2" Metallic Manual	View

Series Information

1-1 / 2” Metallic Pro Information

Features & Benefits

1-1/2” Metallic Performance Specifications
Ratio: 1:1
Maximum Flow: 90-g.p.m. (340.7-l.p.m.)
Displacement per cycle: 0.64-Gallons (2.42-Liters)
Air Inlet: (Female) 1/2 - 14 N.P.T.F. - 1
Fluid Inlet: 1-1/2 11-1/2 N.P.T.F. - 1
Rp 1-1/2 (1-1/2 - 11 BSP parallel)
Fluid Outlet: 1-1/2 11-1/2 N.P.T.F. - 1
Rp 1-1/2 (1-1/2 - 11 BSP parallel)
Max. operating pressure: 120-psi (8.3-bar)
Suspended solids max. dia.: 1/4-inch (6.4-mm)
Weight: lbs (kg)
666150-X-C (aluminum) 51.5 (23.4)
666151-X-C (stainless steel) 84.5 (38.3)
666152-X-C (cast iron) 79.5 (36.1)
Note: Add 23-lbs (10.4-kg) for cast iron air motor section
Maximum dry suction lift: ft (m) 19 (5.8)
