670094

Name: 670094 PumpCatalog ARO
Brand: ARO
SKU: 670094
Price: 3140.46 USD
Availability: InStock

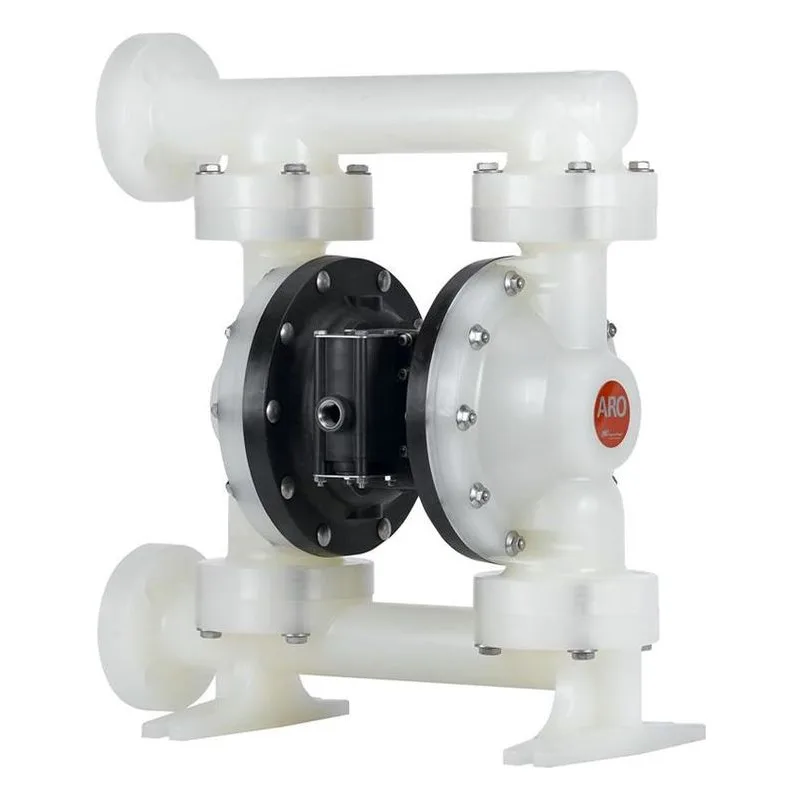

ARO 670094 1-1/2" Non-Metallic Expert Series AODD Diaphragm Pump, An Ingersoll Rand Business.

Brand: ARO

Series:

1-1 / 2” Non-Metallic Expert

Item: 670094

List: ~~$4,302.00~~

$3,140.46

Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.

Returns accepted within 30 days. View Returns Policy

Estimate Shipping

Zip Code

Overview

ARO 670094 1-1/2" Non-Metallic Expert Series AODD Diaphragm Pump, An Ingersoll Rand Business.

Literature & Manuals

Find the manuals, product sheets and all the information you need

Type	Title	Link
Brochures	Electronic Interface Brochure	View
Brochures	Expert Seriess Brochure	View
Data Sheets	PD15P XXS PE15P XXS 1 1/2" Non Metallic Datasheet	View
Data Sheets	PE15P-XXS-XXX-AOS 1 1/2" Non Metallic Datasheet	View
Installation & Operation Manuals	PD15P PE15P 1 1/2" Non Metallic Manual	View
Installation & Operation Manuals	PE15P-X-X-A0S 1 1/2" Non Metallic Manual	View

Series Information

1-1 / 2” Non-Metallic Expert Information

Features & Benefits

1-1/2” Non-Metallic Performance Specifications
Ratio: 1:1
Maximum GPM (LPM): 123 (465)
Displacement per cycle Gallons (Liters): 0.617 (2.34)
Air Inlet (Female): 1/2 - 14 N.P.T.
Fluid Inlet: 1-1/2” A.N.S.I./DIN flange (side or center)
Fluid Outlet: 1-1/2” A.N.S.I./DIN flange (side or center)
Max. operating pressure psi (bar): 120 (8.3)
Suspended solids max. dia. in. (mm): 1/4” (6.4)
Weight lbs (kg): Polypropylene, Side Ported 42.6 (19.3)
PVDF, Side Ported 63.9 (29)
Polypropylene, Center Ported 42.3 (19.2)
PVDF, Center Ported 55.9 (25.3)
Maximum dry suction lift ft (m) : 14 (4.2)
Sound Level:
PSI Cycles / Min db(A)
70 60 81.0
