PD05A-ASS-PTT-B

Name: PD05A-ASS-PTT-B PumpCatalog ARO
Brand: ARO
SKU: PD05A-ASS-PTT-B
Price: 2271.90 USD
Availability: InStock

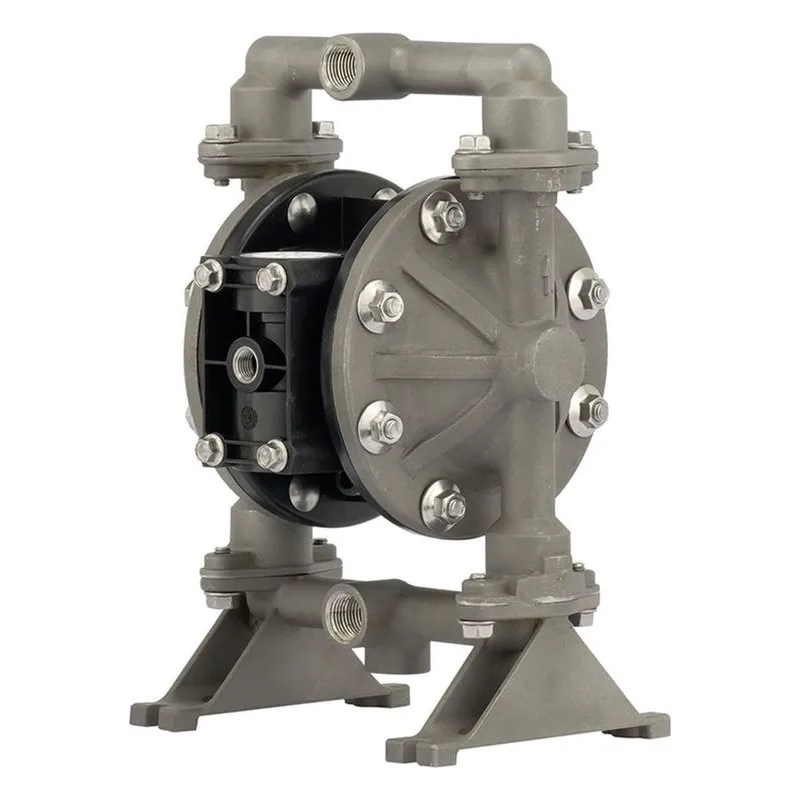

ARO PD05A-ASS-PTT-B 1/2" Metallic Compact Series Air Operated Double Diaphragm Pump. 1:1 Ratio, Aluminum Construction with PTFE Diaphragms & 1/2" NPTF Connections. 12 GPM (Gallons Per Minute) Max Flow, 100 PSIG Max Pressure, 3/32" Solids Handling & 225°F Max Temperature. An Ingersoll Rand Brand.

Brand: ARO

Series:

1 / 2” Metallic Compact

Item: PD05A-ASS-PTT-B

List: ~~$2,790.00~~

$2,271.90

Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.

Returns accepted within 30 days. View Returns Policy

Estimate Shipping

Zip Code

Overview

Literature & Manuals

Find the manuals, product sheets and all the information you need

Type	Title	Link
Brochures	ARO Expert & Compact Series AODD Pumps Catalog	View
Brochures	Pro Series Diaphragm Piston Pumps Brochure	View
Data Sheets	PD05P-XXX-XXX 1/2" Metallic Datasheet	View
Installation & Operation Manuals	PD05P-XXX-XXX 1/2" Metallic Manual	View

Series Information

1 / 2” Metallic Compact Information

Features & Benefits

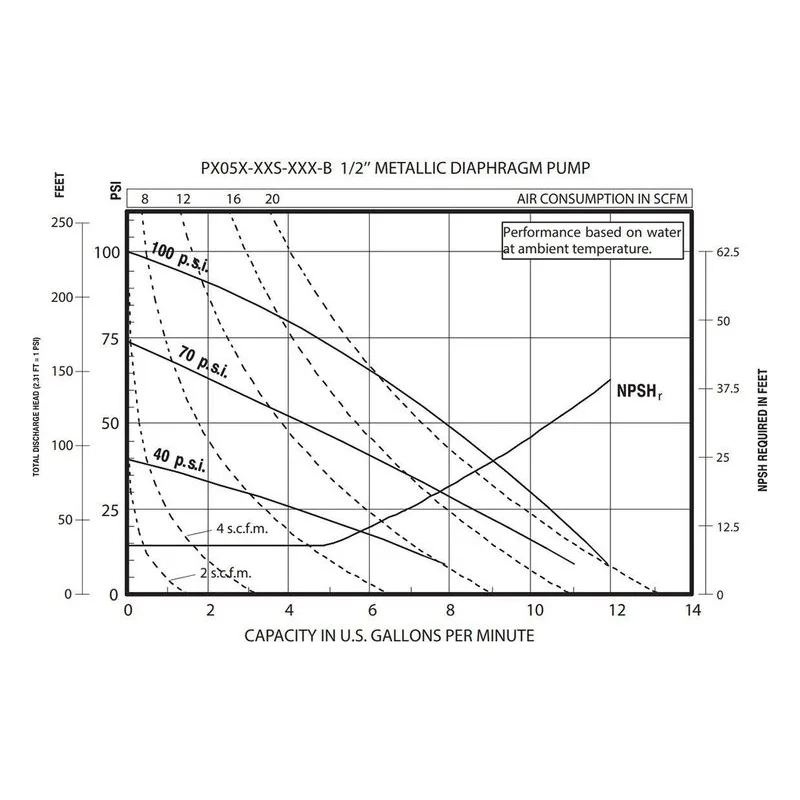

1/2” Metallic Performance Specifications
Ratio: 1:1
Maximum GPM (LPM): 12 (45.4)
Displacement per cycle Gallons (Liters): 0.039 (.15)
Air Inlet (Female): 1/4 -18 P.T.F. SAE SHORT
Fluid Inlet/Outlet: 1/2 - 14 N.P.T.F. -1
Rp 1/2(1/2 - 14 BSP, parallel)
Max. operating pressure psi (bar): 100 (6.9)
Suspended solids max. dia. in. (mm): 3/32” (2.4)
Weight lbs (kg): PD05A-XAS-XXX-B 10.36 (4.7)
PD05R-XAS-XXX-B 8.04 (3.65)
PD05R-XSS-XXX-B 14.25 (6.46)
Maximum dry suction lift ft (m): 15.0 (4.5)
Sound Level:
PSI Cycles / Min db(A)
70 60 71.1
