Home ARO 1” Non-Metallic ExpertPD10P-FPS-HTT

PD10P-FPS-HTT

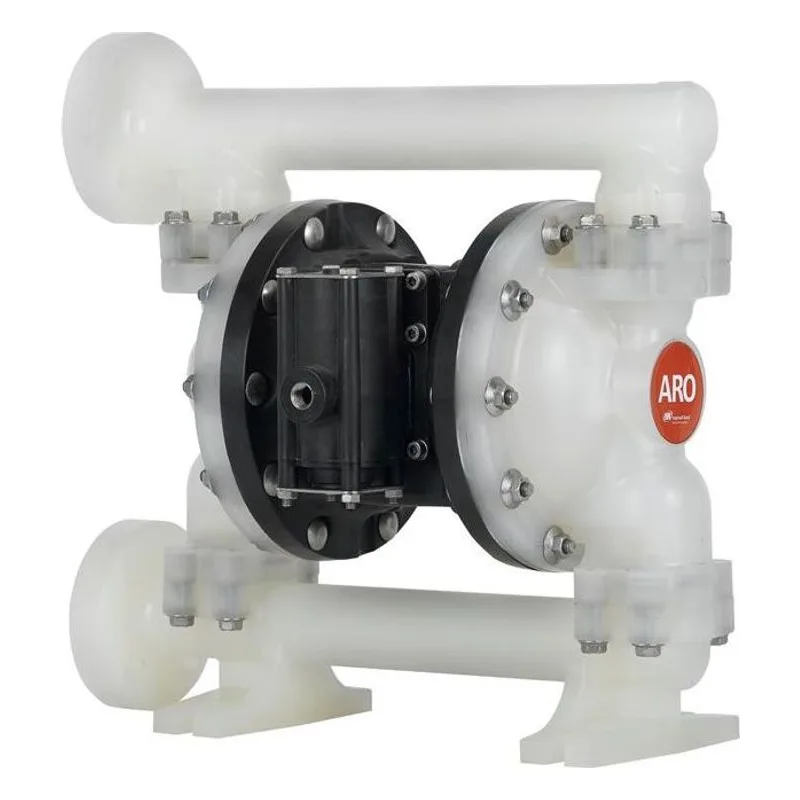

ARO PD10P-FPS-HTT 1" Non-Metallic Expert Series AODD Diaphragm Pump. Polypropylene Center Body, Polypropylene Fluid Caps & Manifold, Stainless Steel Hardware. 53.0 GPM (200.6 LPM) Maximum Flow Rate, Hard 440 Stainless Steel Seats, PTFE Balls, PTFE / Santoprene Diaphragm, 1" ANSI / DIN Flange / End Connection. An Ingersoll Rand Business.

Brand: ARO

Series:

1” Non-Metallic Expert

Item: PD10P-FPS-HTT

Retail Price: $2,119.91

Estimate Shipping

Zip Code

Overview

Literature & Manuals

Find the manuals, product sheets and all the information you need

Type	Title	Link
Brochures	Electronic Interface Brochure	View
Brochures	Expert Seriess Brochure	View
Data Sheets	PD10P-XXS PE10P-XXS 1" Non Metallic Datasheet	View
Data Sheets	PE10P-XXS-XXX-A0S 1" Non Metallic Datasheet	View
Installation & Operation Manuals	PD10P PE10P 1" Non Metallic Manual	View
Installation & Operation Manuals	PE10P-XXX-XXX-A0S 1" Non Metallic Manual	View
Parts Breakdowns	PD10P-AKS-KAA ARO Pump Repair Parts Exploded View, Fluid Section	View
Parts Breakdowns	PD10P-AKS-KAA ARO Pump Repair Parts Exploded View, Air Section	View

Series Information

1” Non-Metallic Expert Information

Features & Benefits
1” Non-Metallic Performance Specifications Ratio: 1:1 Maximum GPM (LPM): 53 (200) Displacement per cycle Gallons (Liters): 0.226 (.86) Air Inlet (Female): 1/4 - 18 N.P.T. Fluid Inlet: 1 - 11-1/2 N.P.T.F., Rp1(1-11 BSP) 1” A.N.S.I./DIN flange (side or center) Fluid Outlet: 1 - 11-1/2 N.P.T.F., Rp1(1-11 BSP) 1” A.N.S.I./DIN flange (side or center) Max. operating pressure psi (bar): 120 (8.3) Suspended solids max. dia. in.(mm): 1/8” (3.2) Weight lbs (kg): Polypropylene, Threaded Port 19.35 (8.78) Polypropylene, Center Ported 19.59 (8.89) Polypropylene, Side Ported 19.87 (9.01) PVDF, Threaded Port 25.83 (11.72) PVDF, Center Ported 26.72 (12.12) PVDF, Side Ported 27.15 (12.32) Maximum dry suction lift ft(m) : 19 (5.7) Sound Level: PSI Cycles / Min db(A) 70 60 79.7

Features & Benefits

1” Non-Metallic Performance Specifications
Ratio: 1:1
Maximum GPM (LPM): 53 (200)
Displacement per cycle Gallons (Liters): 0.226 (.86)
Air Inlet (Female): 1/4 - 18 N.P.T.
Fluid Inlet: 1 - 11-1/2 N.P.T.F., Rp1(1-11 BSP)
1” A.N.S.I./DIN flange (side or center)
Fluid Outlet: 1 - 11-1/2 N.P.T.F., Rp1(1-11 BSP)
1” A.N.S.I./DIN flange (side or center)
Max. operating pressure psi (bar): 120 (8.3)
Suspended solids max. dia. in.(mm): 1/8” (3.2)
Weight lbs (kg): Polypropylene, Threaded Port 19.35 (8.78)
Polypropylene, Center Ported 19.59 (8.89)
Polypropylene, Side Ported 19.87 (9.01)
PVDF, Threaded Port 25.83 (11.72)
PVDF, Center Ported 26.72 (12.12)
PVDF, Side Ported 27.15 (12.32)
Maximum dry suction lift ft(m) : 19 (5.7)
Sound Level:
PSI Cycles / Min db(A)
70 60 79.7
