6661BJ-3EB-C

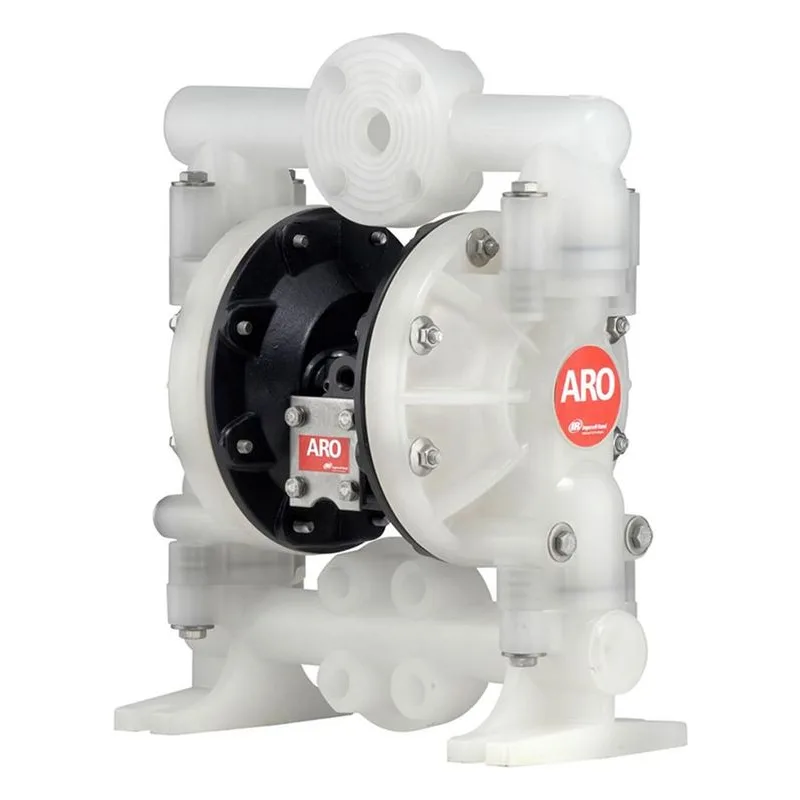

ARO 6661BJ-3EB-C 1" Non-Metallic Pro Series Air Operated Double Diaphragm Pump. 1:1 Ratio, Cast Iron Construction with Santoprene Diaphragms & 1" ANSI / DIN Hybrid Flange Connections. 47 GPM (Gallons Per Minute) Max Flow, 120 PSI Max Pressure, 1/8" Solids Handling, 175°F Max Temperature & 15 ft. Dry suction Lift. An Ingersoll Rand Brand.
List: $1,789.00
$1,456.78
1
Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.
Returns accepted within 30 days. View Returns Policy
Estimate Shipping
Overview
ARO 6661BJ-3EB-C 1" Non-Metallic Pro Series Air Operated Double Diaphragm Pump. 1:1 Ratio, Cast Iron Construction with Santoprene Diaphragms & 1" ANSI / DIN Hybrid Flange Connections. 47 GPM (Gallons Per Minute) Max Flow, 120 PSI Max Pressure, 1/8" Solids Handling, 175°F Max Temperature & 15 ft. Dry suction Lift. An Ingersoll Rand Brand.
Literature & Manuals
Find the manuals, product sheets and all the information you need
- Pro Series Diaphragm Piston Pumps BrochureBrochures (PDF)
- 6661AX 6661BX 1" Non Metallic DatasheetData Sheets (PDF)
- 6661 1" Non Metallic ManualInstallation & Operation Manuals (PDF)
| Type | Title | Link |
|---|---|---|
| Brochures | Pro Series Diaphragm Piston Pumps Brochure | View |
| Data Sheets | 6661AX 6661BX 1" Non Metallic Datasheet | View |
| Installation & Operation Manuals | 6661 1" Non Metallic Manual | View |
