PD20A-FSS-STA-B

Name: PD20A-FSS-STA-B PumpCatalog ARO
Brand: ARO
SKU: PD20A-FSS-STA-B
Price: 7387.33 USD
Availability: InStock

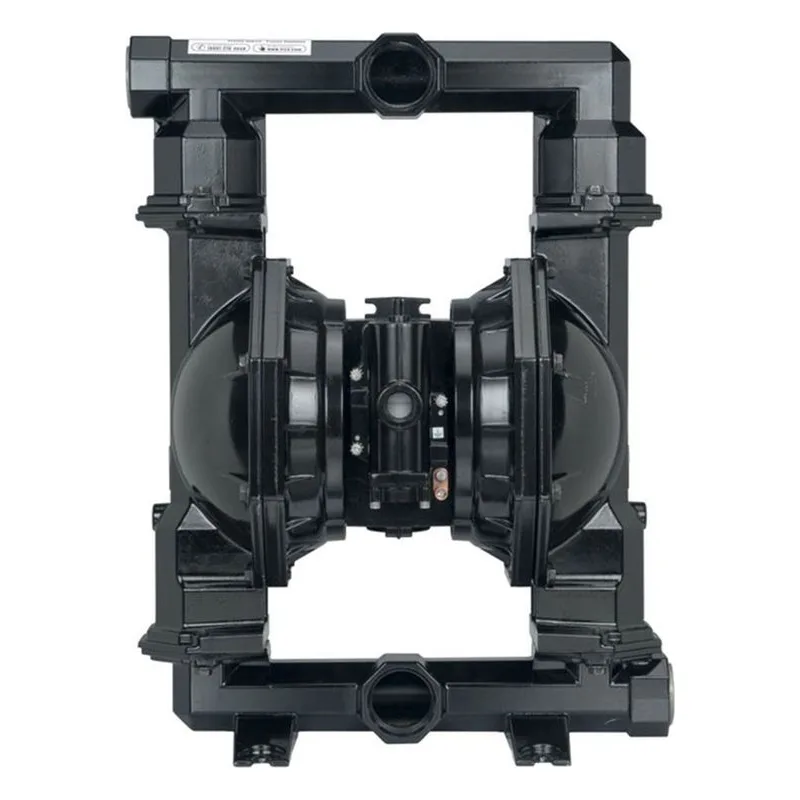

ARO PD20A-FSS-STA-B 2" Metallic Expert Series Air Operated Double Diaphragm Pump. 1:1 Ratio, Aluminum Construction with Santoprene Diaphragms & 2" ANSI / DIN Flange Connections. 172 GPM (Gallons Per Minute) Max Flow, 120 PSIG Max Pressure, 1/4" Solids Handling & 225°F Max Temperature. An Ingersoll Rand Brand.

Brand: ARO

Series:

2” Metallic Expert

Item: PD20A-FSS-STA-B

List: ~~$9,072.00~~

$7,387.33

Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.

Returns accepted within 30 days. View Returns Policy

Estimate Shipping

Zip Code

Overview

Literature & Manuals

Find the manuals, product sheets and all the information you need

Type	Title	Link
Brochures	ARO Expert & Compact Series AODD Pumps Catalog	View
Brochures	Electronic Interface Brochure	View
Brochures	Expert Seriess Brochure	View
Data Sheets	PD20R PE20R PD20Y PE20Y 2" Metallic Datasheet	View
Data Sheets	PE20A BOS PE20S B0S 2" Metallic Datasheet	View
Installation & Operation Manuals	PD20R-X-B PE20R-X-B 2" Metallic Manual	View
Installation & Operation Manuals	PD20X PE20X 2" Metallic Manual	View
Installation & Operation Manuals	PE20X-X-X-B0S 2" Metallic Manual	View

Series Information

2” Metallic Expert Information

Features & Benefits

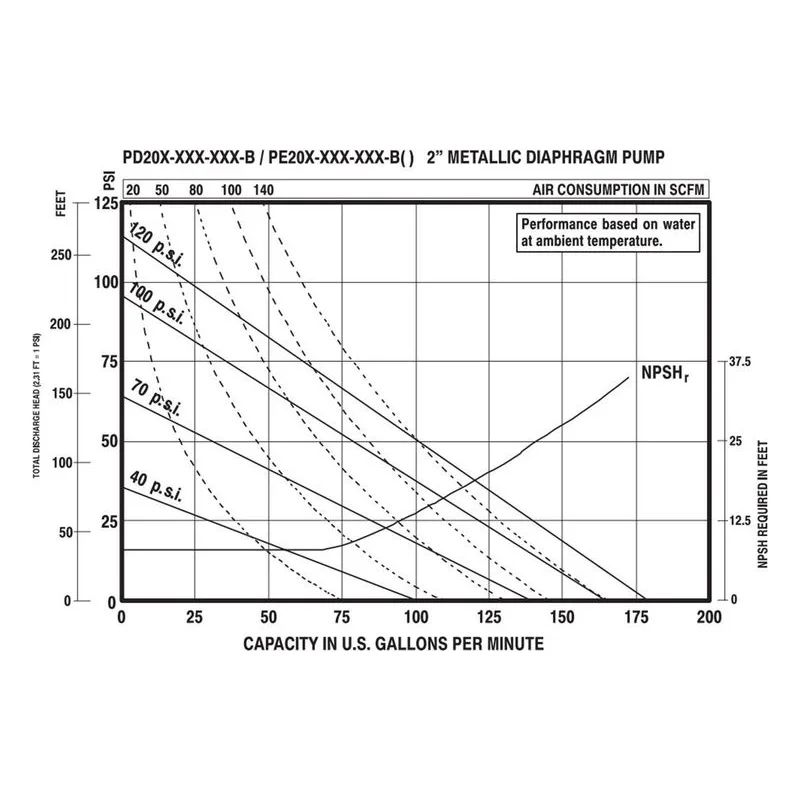

2” Metallic Performance Specifications
Ratio: 1:1
Maximum GPM (LPM): 172 (651)
Displacement per cycle: 1.4 (5.3)
@ 100 psi Gallons (Liters)
Air Inlet (Female): 3/4 - 14 N.P.T.F.-1
Fluid Inlet/Outlet (Female): PX20X-AXX-XXX-B( ) 2 - 11-1/2 N.P.T.F.-1
PX20X-BXX-XXX-B( ) Rp 2 (2 - 11 BSP parallel)
PX20X-FXX-XXX-B( ) 2” A.N.S.I./DIN Flange
Max. operating pressure psi (bar): 120 (8.3)
Suspended solids max. dia. in. (mm): 1/4” (6.4)
Maximum dry suction lift ft (m): 14 (4.2)
