PF20S-FSS-SVT-B

Name: PF20S-FSS-SVT-B PumpCatalog ARO
Brand: ARO
SKU: PF20S-FSS-SVT-B
Price: 8800.14 USD
Availability: InStock

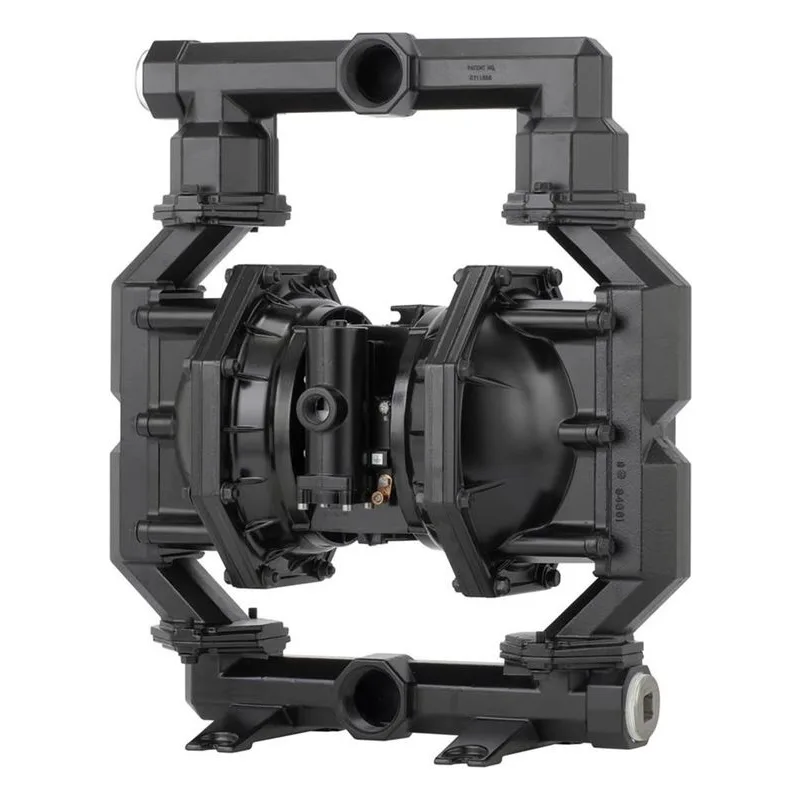

ARO PF20S-FSS-SVT-B 2" Metallic Flap Valve Air Operated Double Diaphragm Pump. 1:1 Ratio, Stainless Steel Construction with PTFE/Santoprene Diaphragms & 2" ANSI / DIN Flange Connections. 172 GPM (Gallons Per Minute) Max Flow, 120 PSIG Max Pressure, 2" Solids Handling, 225°F Max Temperature & 14 ft. Suction Lift. An Ingersoll Rand Brand.

Brand: ARO

Series:

2” Metallic Flap Valve

Item: PF20S-FSS-SVT-B

List: ~~$10,807.00~~

$8,800.14

Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.

Returns accepted within 30 days. View Returns Policy

Estimate Shipping

Zip Code

Overview

Literature & Manuals

Find the manuals, product sheets and all the information you need

Type	Title	Link
Brochures	ARO Expert & Compact Series AODD Pumps Catalog	View
Brochures	ARO Long Life PTFE Diaphragm Brochure	View
Brochures	Expert Seriess Brochure	View
Data Sheets	PF20A PF20S 2" Metallic Flap Valve Datasheet	View
Data Sheets	PF20R PF20Y 2" Metallic Flap Valve Datasheet	View
Installation & Operation Manuals	ARO 2" Metallic Flap Valve Electric Diaphragm Pumps Operator's Manual	View
Installation & Operation Manuals	PF20R PF20Y 2 Metallic Flap Valve Manual	View
Installation & Operation Manuals	PF20X 2" Metallic Flap Valve Manual	View

Series Information

2” Metallic Flap Valve Information

Features & Benefits

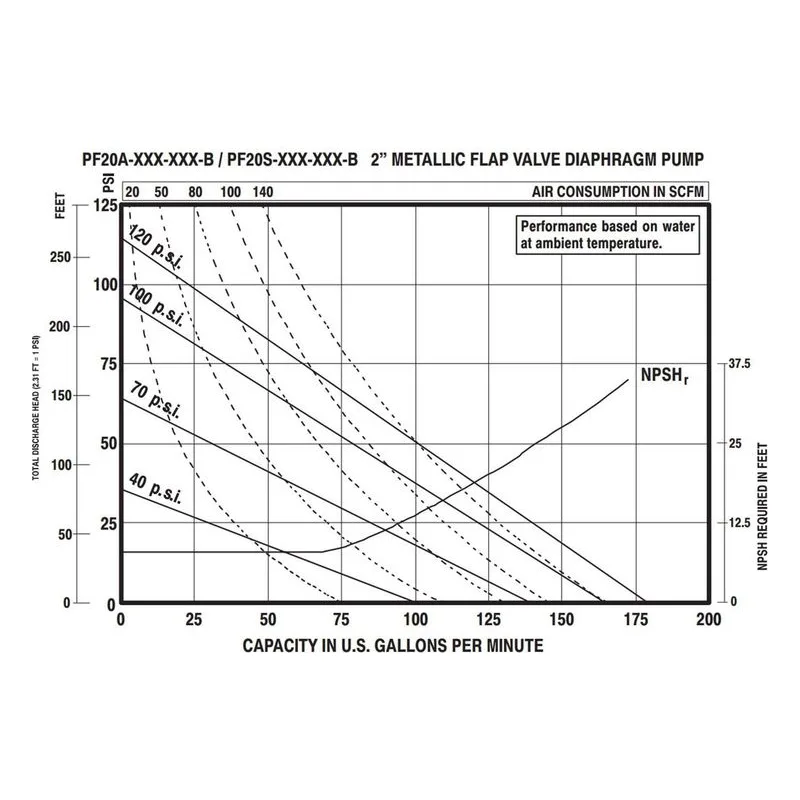

2” Flap Valve Performance Specifications
Ratio: 1:1
Maximum GPM (LPM): 172 (651)
Displacement per cycle: 1.4 (5.3)
@ 100 psi Gallons (Liters)
Air Inlet (Female): 3/4 - 14 N.P.T.F.-1
Fluid Inlet/Outlet (Female):
PF20X-AXX-XXX-B 2 - 11-1/2 N.P.T.F.-1
PF20X-BXX-XXX-B Rp 2 (2 - 11 BSP parallel)
Max. operating pressure psi (bar): 120 (8.3)
Suspended solids max. dia. in. (mm): 2” (51) Semi-solid
Maximum dry suction lift ft (m): 14 (4.2)
Weight lbs (kg): PF20X-XAX-SXX-B 74 (34)
PF20X-XCX-SXX-B 161 (73)
PF20X-XSX-SXX-B 188 (85)
Sound Level:
PSI Cycles / Min db(A)
70 60 85.0
