PE07P-APS-PTT-A0F

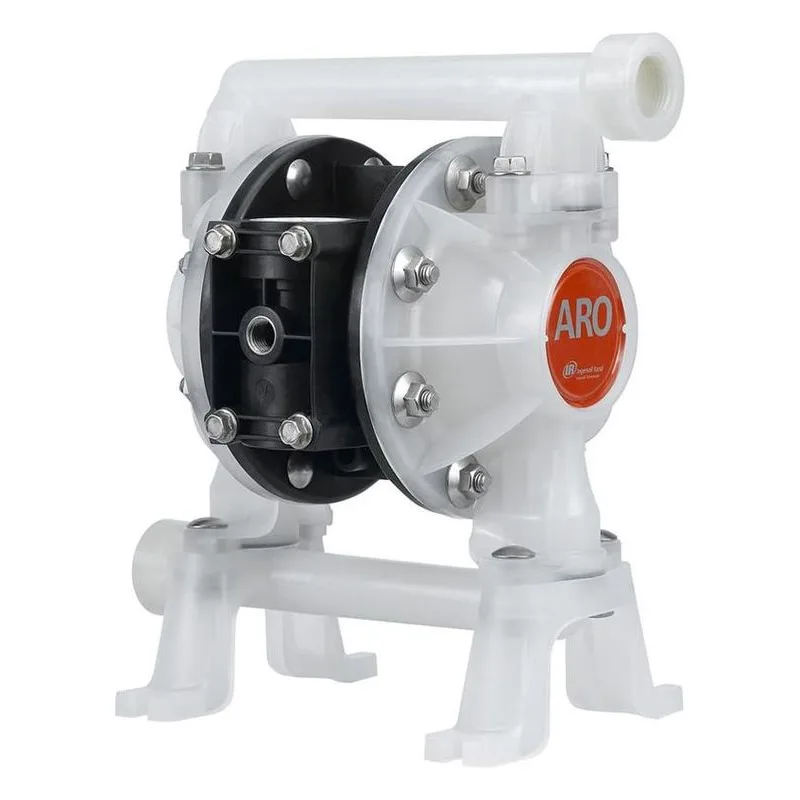

ARO PE07P-APS-PTT-A0F 3/4" Non-Metallic Compact AODD Diaphragm Pump with Electronic Interface. Polypropylene Center Body, Seats, Fluid Caps & Manifold, Stainless Steel Hardware. PTFE Balls, PTFE / Santoprene Diaphragms, 3/4 - 14 NPTF - 2 Connection. An Ingersoll Rand Business.

Brand: ARO

Series:

3 / 4” Non-Metallic Compact

Item: PE07P-APS-PTT-A0F

Retail Price: $1,468.62

Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.

Returns accepted within 30 days. View Returns Policy

Estimate Shipping

Zip Code

Overview

Literature & Manuals

Find the manuals, product sheets and all the information you need

Type	Title	Link
Brochures	Pro Series Diaphragm Piston Pumps Brochure	View
Data Sheets	PD07P 3/4" Non Metallic Datasheet	View
Installation & Operation Manuals	PD07P 3/4" Non Metallic Manual	View

Series Information

3 / 4” Non-Metallic Compact Information

Features & Benefits
3/4” Non-Metallic Performance Specifications Ratio: 1:1 Maximum GPM (LPM): 14.8 (56.0) Displacement per cycle Gallons (Liters): 0.032 (.12) Air Inlet (Female): 1/4 -18 P.T.F. SAE SHORT Fluid Inlet/Outlet: 3/4 - N.P.T.F. - 1 Rp 3/4 (3/4 - 14 BSP) Max. operating pressure psi (bar): 100 (6.9) Suspended solids max. dia. in. (mm): 3/32” (2.4) Weight lbs (kg): 5.61 (2.54) Maximum dry suction lift ft (m): 15.0 (4.5) PTFE 13.5 (4.1) Santoprene Sound Level: PSI Cycles / Min db(A) 70 60 75.0

Features & Benefits

3/4” Non-Metallic Performance Specifications
Ratio: 1:1
Maximum GPM (LPM): 14.8 (56.0)
Displacement per cycle Gallons (Liters): 0.032 (.12)
Air Inlet (Female): 1/4 -18 P.T.F. SAE SHORT
Fluid Inlet/Outlet: 3/4 - N.P.T.F. - 1
Rp 3/4 (3/4 - 14 BSP)
Max. operating pressure psi (bar): 100 (6.9)
Suspended solids max. dia. in. (mm): 3/32” (2.4)
Weight lbs (kg): 5.61 (2.54)
Maximum dry suction lift ft (m): 15.0 (4.5) PTFE
13.5 (4.1) Santoprene
Sound Level:
PSI Cycles / Min db(A)
70 60 75.0
