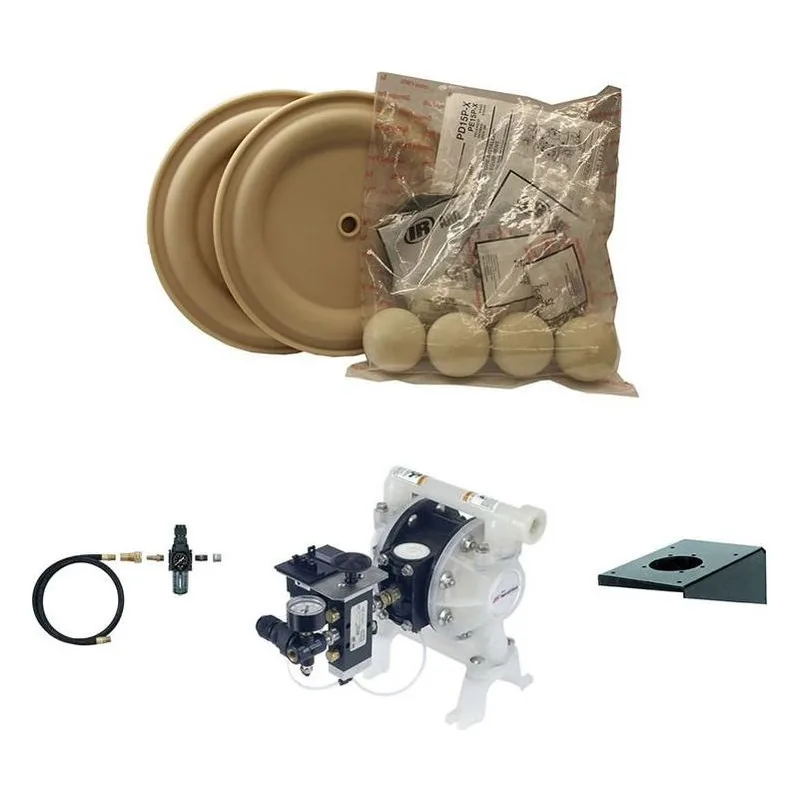

Image shown may not be actual product

670100

Name: 670100 PumpCatalog ARO
Brand: ARO
SKU: 670100
Price: 12640.68 USD
Availability: OutOfStock

ARO 670100 3" Metallic Pro Series AODD Diaphragm Pump. Stainless Steel Air Motor/Cap, Stainless Steel Fluid Caps & Manifold, Stainless Steel Hardware. 237 GPM (897 LPM) Maximum Flow Rate, Santoprene Seats, Balls & Diaphragm, Rp 3 (3 - 11 BSP parallel) Connection. An Ingersoll Rand Business.

Brand: ARO

Series:

3” Metallic Pro

Item: 670100

List: ~~$17,316.00~~

$12,640.68

Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.

Returns accepted within 30 days. View Returns Policy

Estimate Shipping

Zip Code

Overview

Literature & Manuals

Find the manuals, product sheets and all the information you need

Type	Title	Link
Brochures	Pro Series Diaphragm Piston Pumps Brochure	View
Data Sheets	66630X 66632X 3" Metallic Datasheet	View
Installation & Operation Manuals	666300-XXX-C 3" Metallic Manual	View

Series Information

3” Metallic Pro Information

Features & Benefits

3” Metallic Performance Specifications
Ratio: 1:1
Maximum Flow: 237-g.p.m. (897-l.p.m.)
Displacement per cycle: 2.65-Gallons (10.03-Liters)
Air Inlet: (Female) 3/4 - 14 N.P.T.F. - 1
Fluid Inlet: 3 - 8 N.P.T.F. - 1
Rp 3 (3 - 11 BSP parallel)
Fluid Outlet: 3 - 8 N.P.T.F. - 1
Rp 3 (3 - 11 BSP, parallel)
Max. operating pressure: 120-psi (8.3-bar)
Suspended solids max. dia.: 3/8-in. (9.5-mm)
Weight: lbs (kg)
6663X0-XXX-C 109.8 (49.8)
6663X1-XXX-C 222.2 (100.8)
6663X2-XXX-C 213.1 (96.7)
Maximum dry suction lift: ft (m) 17.6 (5.4)
