Image shown may not be actual product
TP0623T21KK47S22

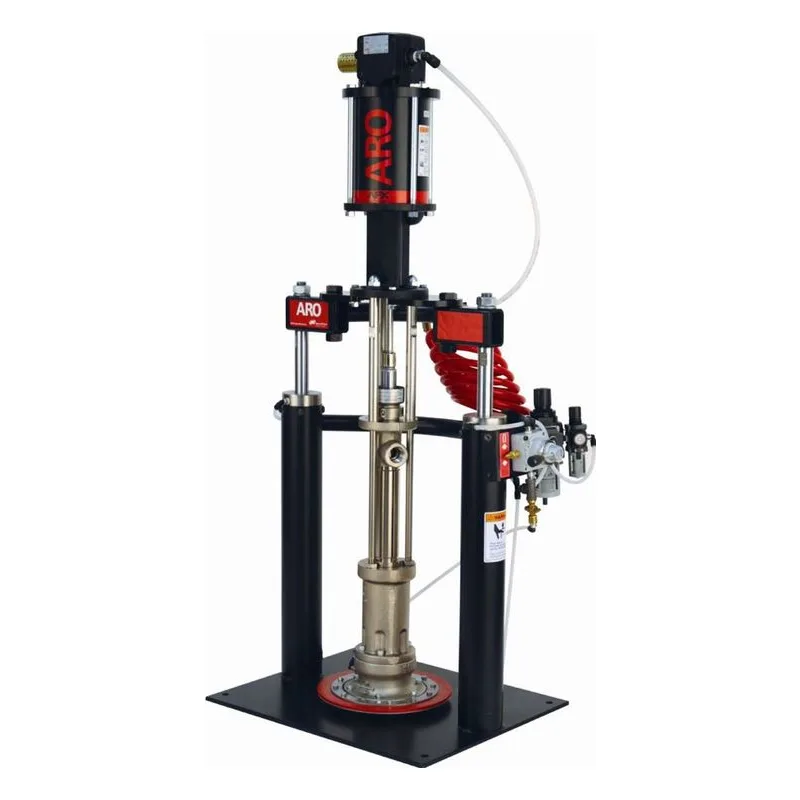

ARO TP0623T21KK47S22 TPX Series 5 Gallon Two-Post Ram Piston Pump Package with Pump Model: AF0623T11KK47. 23:1 Ratio, Stainless Steel Construction with 6" Air Motor, 6" Stroke Length, Glass Filled PTFE (Upper) Glass filled PTFE (Lower) Packing Materials & 1 - 11-1/2 NPTF - 1 Connections. 3.2 GPM (Gallons Per Minute) Max Flow & 4215 PSI Max Pressure, an Ingersoll Rand Brand.
List: $17,186.00
$13,994.56
1
Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.
Returns accepted within 30 days. View Returns Policy
Estimate Shipping
Overview
ARO TP0623T21KK47S22 TPX Series 5 Gallon Two-Post Ram Piston Pump Package with Pump Model: AF0623T11KK47. 23:1 Ratio, Stainless Steel Construction with 6" Air Motor, 6" Stroke Length, Glass Filled PTFE (Upper) Glass filled PTFE (Lower) Packing Materials & 1 - 11-1/2 NPTF - 1 Connections. 3.2 GPM (Gallons Per Minute) Max Flow & 4215 PSI Max Pressure, an Ingersoll Rand Brand.
Literature & Manuals
Find the manuals, product sheets and all the information you need
| Type | Title | Link |
|---|---|---|
| Brochures | AFX Piston Pumps and Packages Brochure | View |
| Brochures | ARO Piston Pumps and Packages Product Overview | View |
| Brochures | ARO Stainless Steel Chop Check Piston Pumps Packages Brochure | View |
| Brochures | ARO Stainless Steel Chop Check Pumps Catalog | View |
| Installation & Operation Manuals | ARO Force 5 Gallon TPX Piston Pump Package AF0623T Operator's Manual | View |
