Image shown may not be actual product
TP1265S51PF17AE2

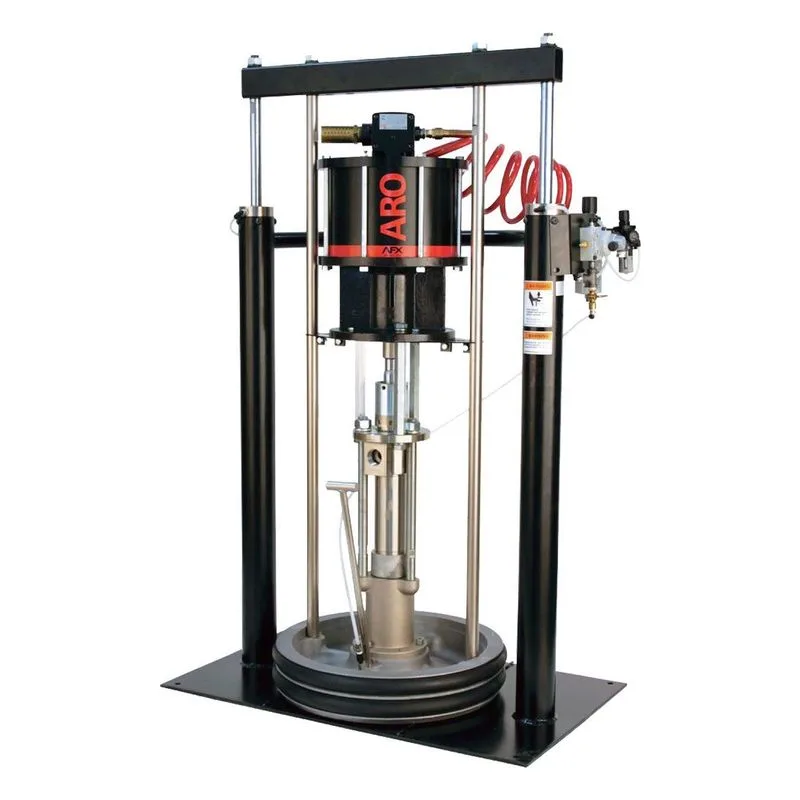

ARO TP1265S51PF17AE2 is a Two-Post Ram and Double-acting Rxtrusion pump package for 55-gallon drums. It features a 12" Air Motor with a 65:1 Ratio in a Carbon Steel build. It includes a Chop Check, uses a Flange Mount setup, and is built with a defined Stroke Length for consistent dispensing. Air Inlet is 3/4" NPT(F) and Material Outlet is 1-1/4"-11-1/2 NPTF-1. Air Pressure Range is 30-90 PSI and has Advanced Ram & Pump Controls.
List: $24,481.00
$17,871.13
1
Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.
Returns generally accepted within 30 days; manufacturer terms apply. View Returns Policy
Estimate Shipping
Overview
ARO TP1265S51PF17AE2 is a Two-Post Ram and Double-acting Rxtrusion pump package for 55-gallon drums. It features a 12" Air Motor with a 65:1 Ratio in a Carbon Steel build. It includes a Chop Check, uses a Flange Mount setup, and is built with a defined Stroke Length for consistent dispensing. Air Inlet is 3/4" NPT(F) and Material Outlet is 1-1/4"-11-1/2 NPTF-1. Air Pressure Range is 30-90 PSI and has Advanced Ram & Pump Controls.
Literature & Manuals
Find the manuals, product sheets and all the information you need
- AFX Piston Pumps and Packages BrochureBrochures (PDF)
- Expert and Compact Air Operated Diaphragm Pumps BrochureBrochures (PDF)
- ARO TP1265S5X 6 Inch Motor Two Post Piston Pump IOM ManualInstallation & Operation Manuals (PDF)
| Type | Title | Link |
|---|---|---|
| Brochures | AFX Piston Pumps and Packages Brochure | View |
| Brochures | Expert and Compact Air Operated Diaphragm Pumps Brochure | View |
| Installation & Operation Manuals | ARO TP1265S5X 6 Inch Motor Two Post Piston Pump IOM Manual | View |
