P35A1-EU

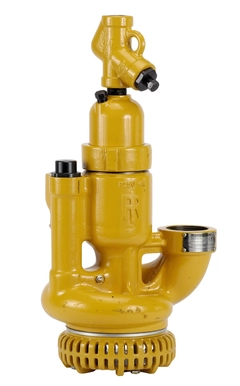

ARO P35A1-EU Centrifugal Dewatering Sump Pump.230 GPM (870.5 LPM) Maximum Flow Rate, An Ingersoll Rand Business.

Brand: ARO

Series:

Centrifugal Dewatering

Item: P35A1-EU

Retail Price: $6,072.82

Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.

Returns accepted within 30 days. View Returns Policy

Estimate Shipping

Zip Code

Overview

ARO P35A1-EU Centrifugal Dewatering Sump Pump.230 GPM (870.5 LPM) Maximum Flow Rate, An Ingersoll Rand Business.

Literature & Manuals

Find the manuals, product sheets and all the information you need

Type	Title	Link
Brochures	Expert Seriess Brochure	View
Installation & Operation Manuals	P237A1 P237A3 Sump Pump Manual	View
Installation & Operation Manuals	P35A1 EU Sump Pump Manual	View
Parts Breakdowns	P35A1-EU ARO Pump Repair Parts Exploded View	View

Series Information

Centrifugal Dewatering Information

Features & Benefits
Centrifugal Pump Performance Specifications Maximum Flow GPM (LPM): 200 (757) P237AX-EU 230 (870.5) P35AX-EU Air Inlet (Female): 3/4 -14 N.P.T. (P237AX-EU) 1 - 11-1/2 N.P.T. (P35A1-EU) Fluid Inlet: Screened Inlet Fluid Outlet: 2” N.P.T.F. P35A1-EU 2-1/2” N.P.T.F. P237A1-EU 2-1/2” BSP P237A3-EU Max. operating pressure psi (bar): 90 (6.2) Air Consumption in CFM: P237AX-EU 100 P35A1-EU 160 Suspended solids max. dia. in. (mm): 1/4” (6.4) Pump Housing Material: P237AX-EU Cast Iron P35A1-EU Cast Iron Weight lbs (kg): P237AX-EU 48 (21.8) P35A1-EU 79 (36)

Features & Benefits

Centrifugal Pump Performance Specifications
Maximum Flow GPM (LPM): 200 (757) P237AX-EU
230 (870.5) P35AX-EU
Air Inlet (Female): 3/4 -14 N.P.T. (P237AX-EU)
1 - 11-1/2 N.P.T. (P35A1-EU)
Fluid Inlet: Screened Inlet
Fluid Outlet: 2” N.P.T.F. P35A1-EU
2-1/2” N.P.T.F. P237A1-EU
2-1/2” BSP P237A3-EU
Max. operating pressure psi (bar): 90 (6.2)
Air Consumption in CFM: P237AX-EU 100
P35A1-EU 160
Suspended solids max. dia. in. (mm): 1/4” (6.4)
Pump Housing Material: P237AX-EU Cast Iron
P35A1-EU Cast Iron
Weight lbs (kg): P237AX-EU 48 (21.8)
P35A1-EU 79 (36)
