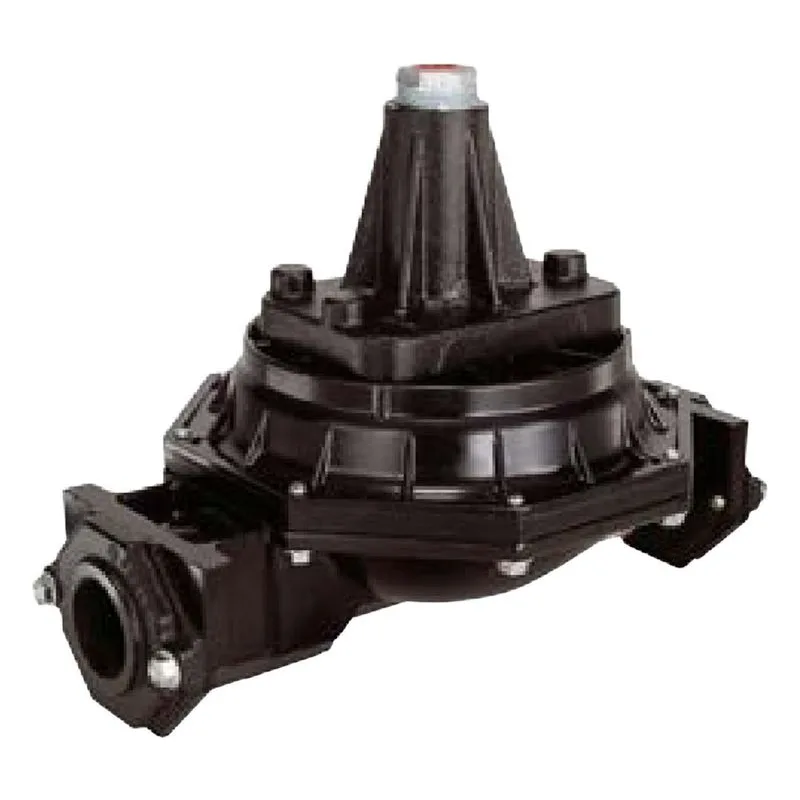

Image shown may not be actual product

SB20A-AAP-V

Name: SB20A-AAP-V PumpCatalog ARO
Brand: ARO
SKU: SB20A-AAP-V
Price: 1678.27 USD
Availability: InStock

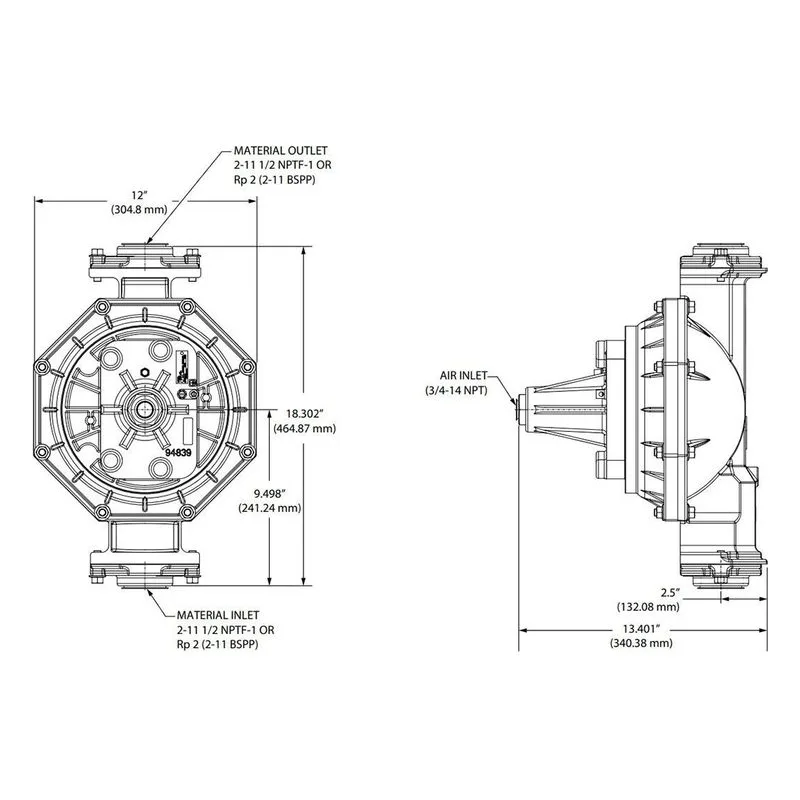

ARO SB20A-AAP-V 2" Metallic Shock Blocker Pulsation Dampener. Aluminum Air Section, Aluminum Fluid Caps, Carbon Steel Hardware, Viton Diaphragm. 2 - 11-1/2 NPTF - 1 Fluid Connection, 3/4 - 14 NPTF Air Inlet and, 120 PSIG Maximum Air Inlet Pressure. An Ingersoll Rand Brand

Brand: ARO

Series:

Pulsation Dampeners

Item: SB20A-AAP-V

List: ~~$2,061.00~~

$1,678.27

Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.

Returns accepted within 30 days. View Returns Policy

Estimate Shipping

Zip Code

Overview

Literature & Manuals

Find the manuals, product sheets and all the information you need

Type	Title	Link
Brochures	ARO Shock Blocker Pulsation Dampeners Product Brochure	View
Installation & Operation Manuals	ARO 2" Metallic Pulsation Dampeners Operator's Manual	View

Series Information

Pulsation Dampeners Information

General Description

Pulsation Dampeners
Diaphragm and piston pumps of any type have at least two points in their cycle where they provide no pressure or flow to a process. The unwanted result of this pressure fluctuation can often be material foaming, material pulsation, hydraulic shock or aterial splashing. While traditional pulsation dampeners can help reduce unwanted pulsation and other problems, they also require operator intervention and adjustments.
