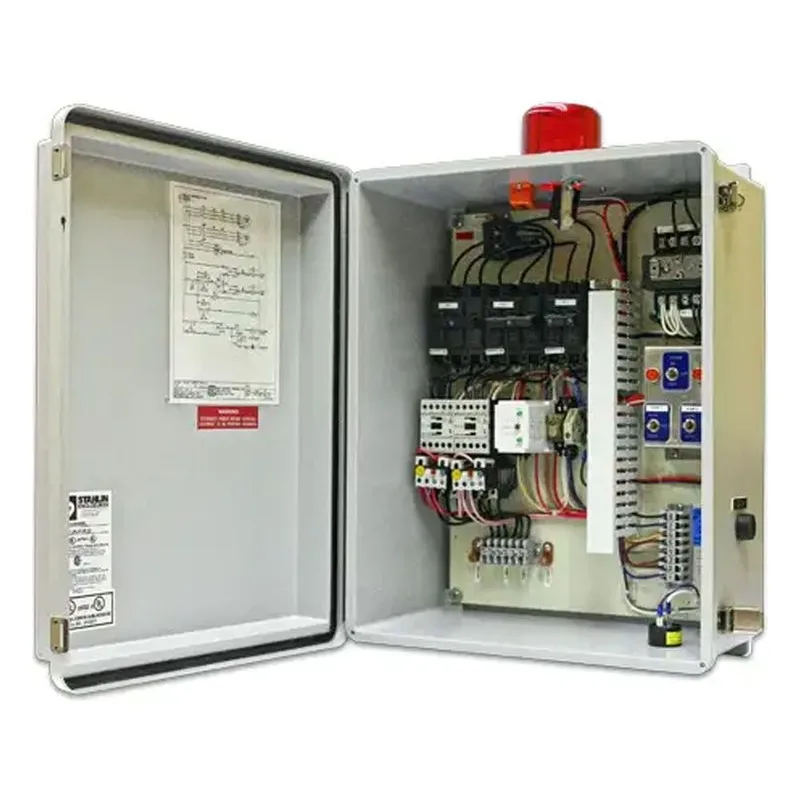

Image shown may not be actual product
BPH23D4XNM032
Barmesa Pumps BPH23D4XNM032 Duplex Control Panels. 3 Ph (Three Phase), 230 V, 32 Max Amps, Type 4X polycarbon Control Panel for Sewage, Effluent & Non-Clog Pumps.
List: $8,375.00
$5,385.12
1
Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.
Returns accepted within 30 days. View Returns Policy
Estimate Shipping
Overview
Barmesa Pumps BPH23D4XNM032 Duplex Control Panels. 3 Ph (Three Phase), 230 V, 32 Max Amps, Type 4X polycarbon Control Panel for Sewage, Effluent & Non-Clog Pumps.
Literature & Manuals
Find the manuals, product sheets and all the information you need
| Type | Title | Link |
|---|---|---|
| Brochures | Barmesa Pumps Control Panel Duplex 3PH 230v Brochure | View |
Series Information
Control Panels Information
Simplex CP / 1 ph, 115, 200 & 230 V
Key features:
Enclosure: type 4X polycarbonate
Circuit breaker: for pump and control circuits
Contactor: definite purpose
HOA switch: 3 position toggle HP rated
Alarm switch: 3 position toggle HP rated
Run light: amber neon pilot light
Bracket: bright aluminum
Fuse: control and alarm sized at 3 amps
Terminal strip: box type lugs sectional
Wiring: color coded
Visible alarm: 360 degree flashing
Audible alarm: piezo buzzer
Level control: requires 3 floats rated at 2 amps
Certifications: UL 508A
Consult factory for other available options. Some options may require an increase in the enclosure size.
Duplex CP / 1 ph, 115, 200 & 230 V
Key features:
Enclosure: type 4X polycarbonate
Circuit breaker: for pump and control circuits
Contactor: definite purpose
HOA switch: 3 position toggle HP rated
Alarm switch: 3 position toggle HP rated
Run light: amber neon pilot light
Alternating relay: with lead selector switch
Bracket: bright aluminum
Fuse: control and alarm sized at 3 amps
Terminal strip: box type lugs sectional
Wiring: color coded
Visible alarm: 360 degree flashing
Audible alarm: piezo buzzer
Level control: requires 4 floats rated at 2 amps
Certifications: UL 508A
Consult factory for other available options. Some options may require an increase in the enclosure size.
Simplex CP / 1 ph, 200/230 V
with start components
Key features:
Enclosure: type 4X polycarbonate
Circuit breaker: for pump and control circuits
Contactor: definite purpose
HOA switch: 3 position toggle HP rated
Alarm switch: 3 position toggle HP rated
Run light: amber neon pilot light
Start components: potential relay and capacitors
Moiseture sensor*: seal fail circuit and light
Temp. sensor*: heat sensor connections
Bracket: bright aluminum
Fuse: control and alarm sized at 3 amps
Terminal strip: box type lugs sectional
Wiring: color coded
Visible alarm: 360 degree flashing
Audible alarm: piezo buzzer
Level control: requires 3 floats rated at 2 amps
Certifications: UL 508A
* Requires sensor to be in pump.
Consult factory for other available options. Some options may require an increase in the enclosure size.
Duplex CP / 1 ph, 200/230 V
with start components
Key features:
Enclosure: type 4X polycarbonate
Circuit breaker: for pump and control circuits
Contactor: definite purpose
HOA switch: 3 position toggle HP rated
Alarm switch: 3 position toggle HP rated
Run light: amber neon pilot light
Start components: potential relay and capacitors
Moiseture sensor*: seal fail circuit and light
Temp. sensor*: heat sensor connections
Bracket: bright aluminum
Fuse: control and alarm sized at 3 amps
Terminal strip: box type lugs sectional
Wiring: color coded
Visible alarm: 360 degree flashing
Audible alarm: piezo buzzer
Level control: requires 4 floats rated at 2 amps
Certifications: UL 508A
* Requires sensor to be in pump.
Consult factory for other available options. Some options may require an increase in the enclosure size.
Simplex CP / 3 ph, 200 V
Key features:
Enclosure: type 4X polycarbonate
Circuit breaker: for pump and control circuits
Motor starter: IEC rated with class 10 overload
HOA switch: 3 position toggle HP rated
Alarm switch: 3 position toggle HP rated
Run light: amber neon pilot light
Transformer: with fuse protection
Moiseture sensor*: seal fail circuit and light
Temp. sensor*: heat sensor connections
Bracket: bright aluminum
Fuse: control and alarm sized at 3 amps
Terminal strip: box type lugs sectional
Wiring: color coded
Visible alarm: 360 degree flashing
Audible alarm: piezo buzzer
Level control: requires 3 floats rated at 2 amps
Certifications: UL 508A
* Requires sensor to be in pump.
Consult factory for other available options. Some options may require an increase in the enclosure size.
Duplex CP / 3 ph, 200 V
Key features:
Enclosure: type 4X polycarbonate
Circuit breaker: for pump and control circuits
Motor starter: IEC rated with class 10 overload
HOA switch: 3 position toggle HP rated
Alarm switch: 3 position toggle HP rated
Run light: amber neon pilot light
Transformer: with fuse protection
Moiseture sensor*: seal fail circuit and light
Temp. sensor*: heat sensor connections
Bracket: bright aluminum
Fuse: control and alarm sized at 3 amps
Terminal strip: box type lugs sectional
Wiring: color coded
Visible alarm: 360 degree flashing
Audible alarm: piezo buzzer
Level control: requires 3 floats rated at 2 amps
Certifications: UL 508A
* Requires sensor to be in pump.
Consult factory for other available options. Some options may require an increase in the enclosure size.
Simplex CP / 3 ph, 230 V
Key features:
Enclosure: type 4X polycarbonate
Circuit breaker: for pump and control circuits
Motor starter: IEC rated with class 10 overload
HOA switch: 3 position toggle HP rated
Alarm switch: 3 position toggle HP rated
Run light: amber neon pilot light
Transformer: with fuse protection
Moiseture sensor*: seal fail circuit and light
Temp. sensor*: heat sensor connections
Bracket: bright aluminum
Fuse: control and alarm sized at 3 amps
Terminal strip: box type lugs sectional
Wiring: color coded
Visible alarm: 360 degree flashing
Audible alarm: piezo buzzer
Level control: requires 4 floats rated at 2 amps
Certifications: UL 508A
* Requires sensor to be in pump.
Consult factory for other available options. Some options may require an increase in the enclosure size.
Duplex CP / 3 ph, 230 V
Key features:
Enclosure: type 4X polycarbonate
Circuit breaker: for pump and control circuits
Motor starter: IEC rated with class 10 overload
HOA switch: 3 position toggle HP rated
Alarm switch: 3 position toggle HP rated
Run light: amber neon pilot light
Transformer: with fuse protection
Moiseture sensor*: seal fail circuit and light
Temp. sensor*: heat sensor connections
Bracket: bright aluminum
Fuse: control and alarm sized at 3 amps
Terminal strip: box type lugs sectional
Wiring: color coded
Visible alarm: 360 degree flashing
Audible alarm: piezo buzzer
Level control: requires 4 floats rated at 2 amps
Certifications: UL 508A
* Requires sensor to be in pump.
Consult factory for other available options. Some options may require an increase in the enclosure size.
Simplex CP / 3 ph, 460 V
Key features:
Enclosure: type 4X polycarbonate
Manual motor protector: with class 10 overload
Motor contactor: IEC rated
HOA switch: 3 position toggle HP rated
Alarm switch: 3 position toggle HP rated
Run light: amber neon pilot light
Transformer: with fuse protection
Moiseture sensor*: seal fail circuit and light
Temp. sensor*: heat sensor connections
Sub door: bright aluminum
Fuse: control and alarm sized at 3 amps
Terminal strip: box type lugs sectional
Wiring: color coded
Visible alarm: 360 degree flashing
Audible alarm: piezo buzzer
Level control: requires 3 floats rated at 2 amps
Certifications: UL 508A
* Requires sensor to be in pump.
Consult factory for other available options. Some options may require an increase in the enclosure size.
Duplex CP / 3 ph, 460 V
Key features:
Enclosure: type 4X polycarbonate
Manual motor protector: with class 10 overload
Motor contactor: IEC rated
HOA switch: 3 position toggle HP rated
Alarm switch: 3 position toggle HP rated
Run light: amber neon pilot light
Transformer: with fuse protection
Moiseture sensor*: seal fail circuit and light
Temp. sensor*: heat sensor connections
Sub door: bright aluminum
Fuse: control and alarm sized at 3 amps
Terminal strip: box type lugs sectional
Wiring: color coded
Visible alarm: 360 degree flashing
Audible alarm: piezo buzzer
Level control: requires 4 floats rated at 2 amps
Certifications: UL 508A
* Requires sensor to be in pump.
Consult factory for other available options. Some options may require an increase in the enclosure size.
