BCS1-1/4-3-2

BCS & BCSF Series Technical Specifications and Mechanical Overview

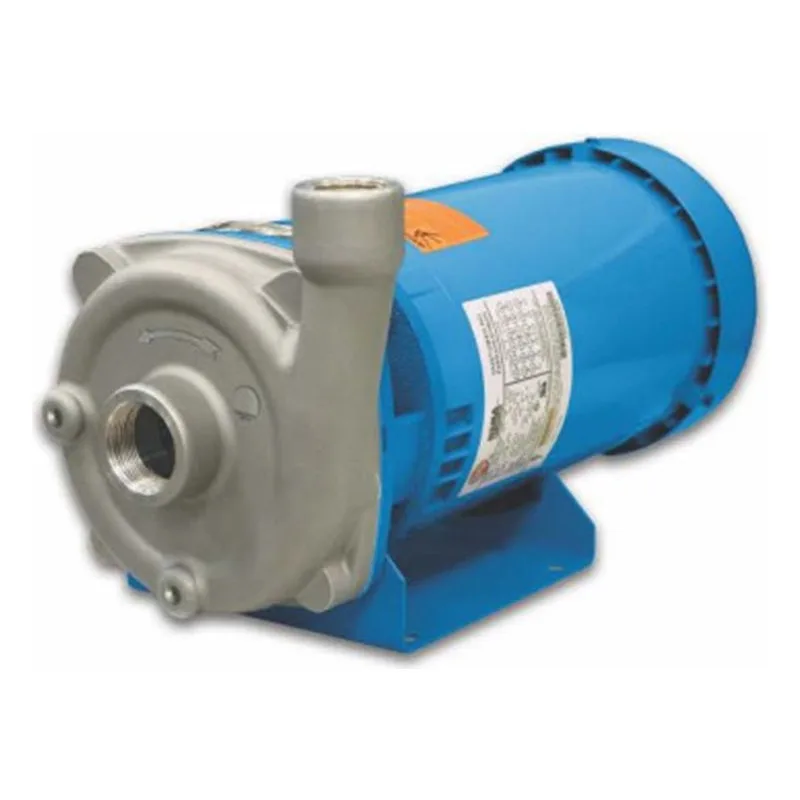

The BCS and BCSF Series represent a high-tier hydraulic solution for fluid transfer tasks across industrial, commercial, and municipal landscapes. These centrifugal pumps are engineered for operators who require the ultimate in material compatibility and mechanical reliability. By utilizing AISI 316 stainless steel for every major wetted component—including the body, seal plate, impeller, and shaft sleeve—these pumps eliminate the risk of fluid contamination and maximize the lifecycle of the hardware in aggressive or high-purity environments.

Mechanical Integrity and Advanced Material Science

The structural foundation of the BCS/BCSF series is its AISI 316 stainless steel construction, which offers superior resistance to corrosion and oxidation. To ensure a leak-proof and durable seal under continuous duty, these pumps utilize high-specification mechanical seals:

• BCS Seal (Type 01): Features a high-performance combination of carbon/silicon-carbide faces with Viton® elastomers and 316 SS metal components.

• BCSF Seal (Type 12): A robust mechanical design utilizing the same premium silicon-carbide and Viton® materials for high-temperature and chemical resilience. The use of Viton® O-rings as a standard ensures that the internal seals remain compatible with a wide array of industrial chemicals and high-temperature fluids up to 250 °F.

Optimized Impeller Design and Solids Handling

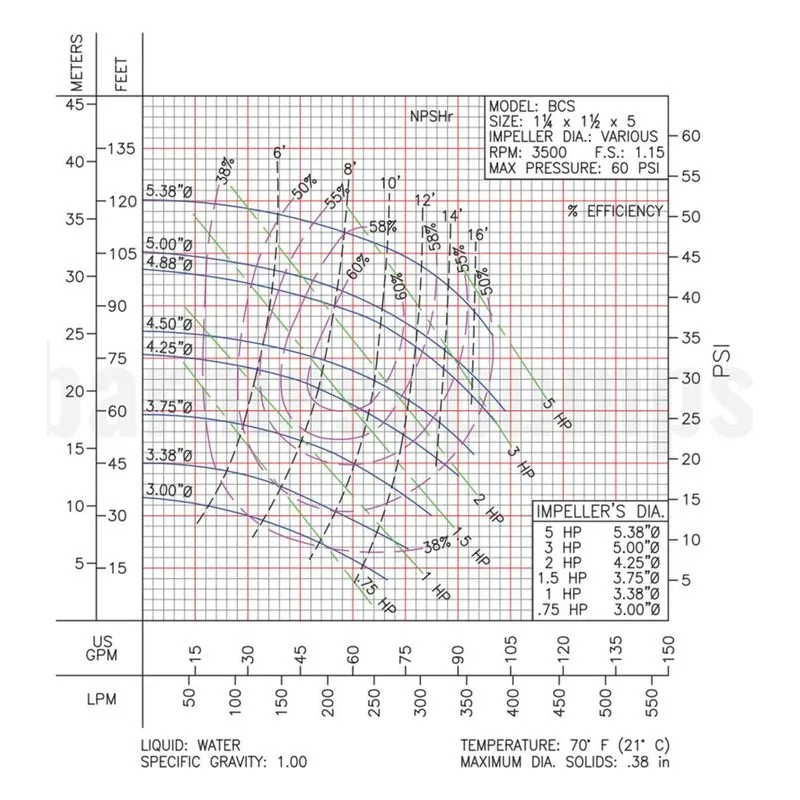

The series offers two distinct hydraulic profiles to meet specific application needs. The BCS Series utilizes an open impeller design, which is specifically engineered to allow for the passage of spherical solids up to 3/8". This prevents clogging and internal damage in applications like effluent transfer or industrial wash-water where debris is present.
