Advanced Back Pull-Out Architecture

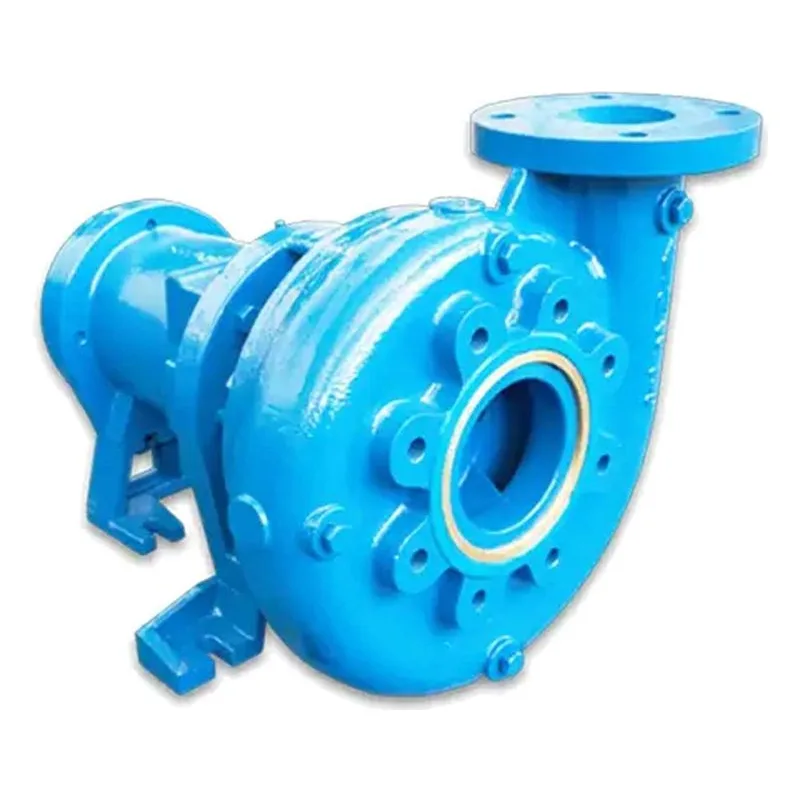

One of the most valuable features for mechanical contractors is the Back Pull-Out Design. In traditional pump configurations, servicing the impeller or seal often requires disconnecting the suction and discharge lines. The BES Series body (Cast Iron ASTM A-48, Class 30) is designed so that the internal rotating assembly can be pulled from the rear of the casing. This allows for rapid inspection and part replacement while the pump casing remains securely bolted and aligned with the system piping.

Internal Component Excellence

The longevity of the BES Series is driven by the quality of its internal components and precision balancing:

• Enclosed Impellers: Available in both Bronze C95200 and 304 Stainless Steel (model dependent), these impellers are dynamically balanced to ISO G6.3. This precision ensures silent operation and prevents the premature wear of internal seals.

• Shaft Protection: Every BES pump features a high-strength shaft (Stainless Steel or Steel) protected by a Bronze C95200 shaft sleeve. This design preventing wear on the shaft itself and simplifying seal maintenance.

• Premium Bearing System: The pumps utilize grease-lubricated ball bearings at both the drive and pump ends. The BES4030HCU model features double-row ball bearings at the drive end to handle increased radial and thrust loads.

• Mechanical Sealing: Standard configurations utilize a Carbon / Ni-Resist / Buna-N mechanical seal, providing a resilient barrier against leaks in continuous-duty water applications.

Configurable Discharge Orientations

A standout feature of the BES Series is its installation flexibility. Depending on the model, the discharge flange can be rotated into 4 or 8 different positions. This provides unparalleled versatility for tight mechanical rooms and complex piping designs, allowing the pump to meet the pipe at the most efficient angle, reducing the need for additional elbows and hydraulic friction loss.
