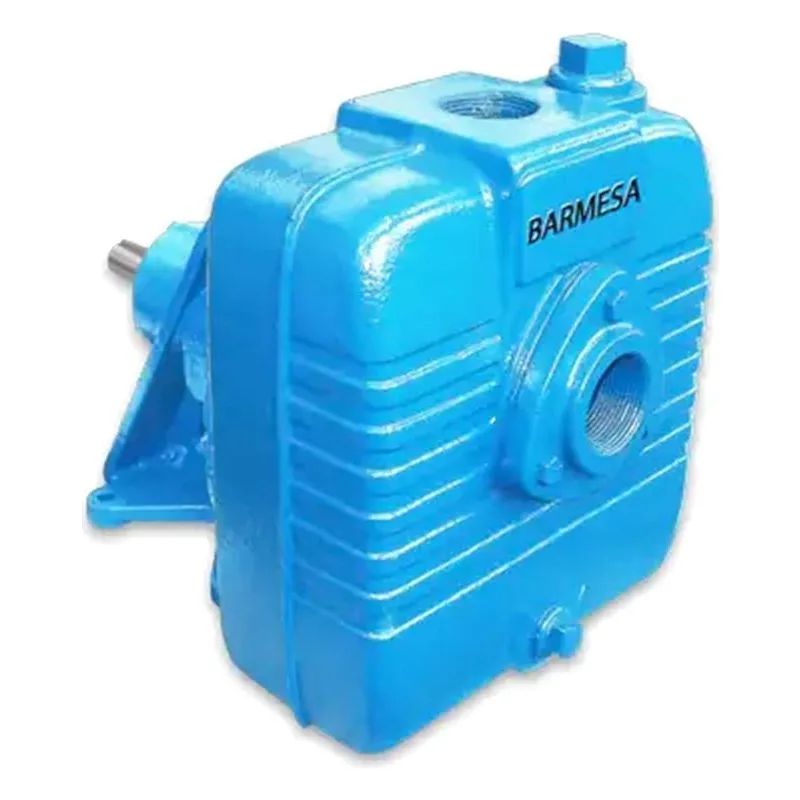

The Professional Choice: Scalable Self-Priming Performance

When your infrastructure demands consistent fluid transfer without the need for external priming aids, the Barmesa BSP series delivers a rugged, high-speed solution for residential, commercial, and industrial loops. Operating at a nominal 3450 RPM, these pumps are specifically engineered to provide the high-head pressure required for rapid dewatering and circulation. By offering both close-coupled and frame-mounted configurations, Barmesa allows engineers to prioritize either the compact footprint of an integrated unit or the independent bearing support of a pedestal-mounted design. This series eliminates the maintenance overhead of foot valves and vacuum systems, ensuring your operation remains fluid and efficient.

Optimized Hydraulics: The Open Trash-Type Impeller Advantage

Unlike standard centrifugal pumps that struggle with particulates, the BSP series utilizes a 2-vane, open, trash-type impeller that is dynamically balanced to ensure long-term mechanical stability. Cast from ASTM A-48 Class 30 iron, this impeller is designed to maintain hydraulic efficiency even when handling "trashy" water containing small solids. This specific hydraulic design, paired with a female NPT discharge ranging from 1.5" to 3", ensures that the pump remains the primary choice for applications where water quality is unpredictable.

Industrial Sealing and High-Temperature Versatility

Thermal resilience is a critical differentiator for the BSP series, which is rated for continuous operation at liquid temperatures up to 160°F (71°C). To ensure seal integrity at these elevated temperatures, the unit features a mechanical, self-lubricating seal with a ceramic stationary part and a carbon ring, backed by a Buna-N elastomer and a stainless steel spring. This robust sealing system protects the 416 series stainless steel shaft (or general stainless steel on pedestal models), preventing the corrosion and seizing commonly found in lower-grade utility pumps.

Critical Service and Treatment Applications

• Industrial Process Loops: Reliable for hot water circulation and chemical transfer up to 160°F where self-priming is mandatory.

• Commercial Dewatering: The 2-vane open impeller handles debris-laden fluids, making it ideal for clearing excavation sites or treatment basins.

• Pressure Boosting: High-speed 3450 RPM operation provides the necessary lift for building water supply and circulation systems.

• Municipal Waste Management: Frequently used in sewage effluent and drainage projects that require a non-clogging hydraulic path.
