IB Series Close-Coupled End-Suction Centrifugal Pumps

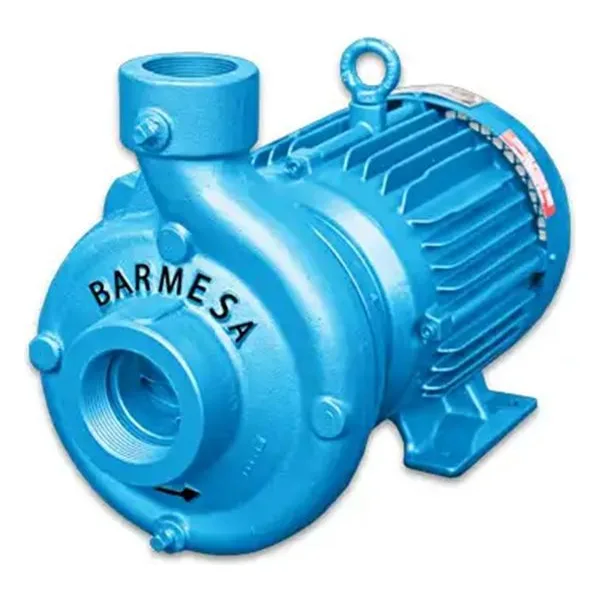

Barmesa IB Series Close-Coupled End-Suction Centrifugal Pumps

The Barmesa IB Series is a line of close-coupled end-suction centrifugal pumps engineered for water transfer, booster systems, chilled water circulation, industrial fluid handling, and high-flow medium-pressure applications. Available in configurations from 1 HP to 15 HP and operating at either 1750 RPM or 3500 RPM, the IB Series provides efficient performance for commercial, industrial, irrigation, and process water systems.

Designed around centrifugal pumping principles, the IB Series converts impeller rotation into fluid velocity and pressure, making these pumps ideal for applications requiring consistent flow rates, dependable pressure generation, and efficient liquid movement. Available suction sizes range from 2" to 3" NPT, with discharge sizes from 1½" to 2½" NPT, supporting a variety of system requirements.

Engineered for Reliability

The IB Series utilizes heavy-duty materials throughout its construction to provide long service life and dependable operation.

Key construction features include:

• Cast iron volute

• Cast iron intermediate coupling

• Dynamically balanced 304 stainless steel impeller

• Stainless steel shaft sleeve

• Buna-N O-rings

• Mechanical shaft seal

• Carbon steel hardware

• Air-dry enamel protective finish

The 304 stainless steel investment-cast impeller is dynamically balanced to promote efficient hydraulic performance and smooth operation across the pump's operating range.

Premium Efficiency Motor Options

The IB Series is equipped with premium-efficiency TEFC (Totally Enclosed Fan Cooled) motors designed for industrial and commercial pumping systems.

Available configurations include:

• 1-phase and 3-phase models

• 115V, 230V, and 460V options

• 1750 RPM and 3500 RPM designs

• Horsepower ratings from 1 HP to 15 HP

• NEMA JM frame motors

These motor options provide flexibility for a broad range of water transfer and pressurization applications.

Typical Applications

• Water booster systems

• Water transfer systems

• Chilled water circulation

• Irrigation systems

• Commercial building water supply

• Industrial process water systems

• Cooling and heating systems

• General fluid transfer applications

Key Benefits

• Close-coupled end-suction design

• High-flow capability

• Medium-pressure performance

• Stainless steel impeller construction

• Premium-efficiency TEFC motors

• Multiple suction and discharge sizes

• Mechanical shaft seal protection

• Maximum liquid temperature of 160°F (71°C)

• Broad horsepower and voltage selection

The Barmesa IB Series combines efficient hydraulic performance, durable construction, and versatile operating options to provide a dependable centrifugal pump solution for commercial, industrial, and water transfer applications.
