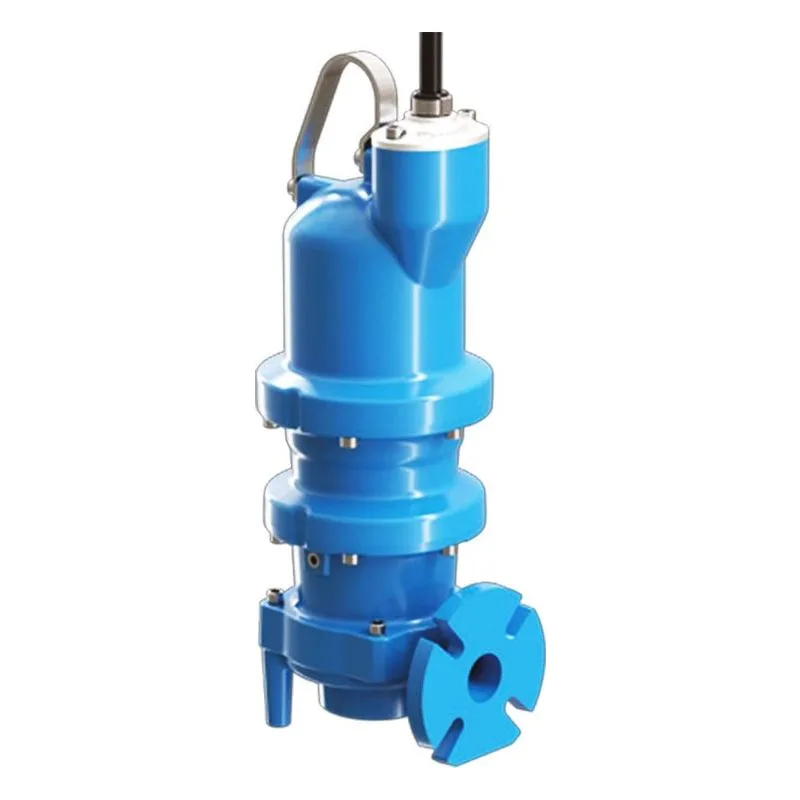

143387N

Specifications:

• DISCHARGE: Vertical .................... 2" NPT Flange ...................... 2"/2.50"/3", Horizontal

• LIQUID TEMPERATURE .............. 104°F (40°C) Continuous

• VOLUTE ....................................... Cast Iron ASTM A-48, Class 30

• MOTOR HOUSING ....................... Cast Iron ASTM A-48, Class 30

• SEAL PLATE ............................... Cast Iron ASTM A-48, Class 30

• IMPELLER: Design ...................... 12 Vane,Vortex, With Pump Out Vanes On Back Side. Dynamically Balanced, ISO G6.3 Material ................... Cast Iron

• SHREDDING RING ...................... Hardened 440C Stainless Steel, Rockwell® C-55

• CUTTER ....................................... Hardened 440C Stainless Steel, Rockwell® C-55

• SHAFT ......................................... 416 Stainless Steel

• SQUARE RINGS .......................... Buna-N

• HARDWARE ................................. 300 Series Stainless Steel

• PAINT ........................................... Air Dry Enamel

• SEAL: Design ..................... Tandem Mechanical, Oil Filled Reservoir Material .................... Rotating Faces - Carbon Stationary Faces - Ceramic Elastomer - Buna-N Hardware -300 Series Stainless

• CORD ENTRY ............................... Custom Molded, Quick Connected for Sealing and Strain Relief

• POWER CORD ............................. CSA Certified Submersible Power Cable 2000V

• UPPER BEARING: Design ..................... Single Row, Ball, Oil Lubrication Load ........................ Radial

• LOWER BEARING: Design ..................... Double Row, Ball, Oil Lubrication Load ......................... Radial & Thrust

• MOTOR: Design ..................... NEMA B Three Phase Torque Curve Oil-Filled, Squirrel Cage Induction, Inverter Duty rated per NEMA MG1 Insulation.................. Class H Varnish & Magnet Wire

• SINGLE PHASE ............................ Requires overload protection to be included in control panel. Requires start components to be included in panel. Provided with pump

• THREE PHASE ............................. Requires overload protection to be included in control panel

• MOISTURE SENSORS ................. Normally Open (N/O), Requires relay in control panel

• TEMPERATUR SENSOR ........... Normally Closed (N/C) To be wired in series with control circuit

• OPTIONAL EQUIPMENT .............. Seal Material, Impeller Trims, Cord Length, Leg Kit
