Image shown may not be actual product

141461

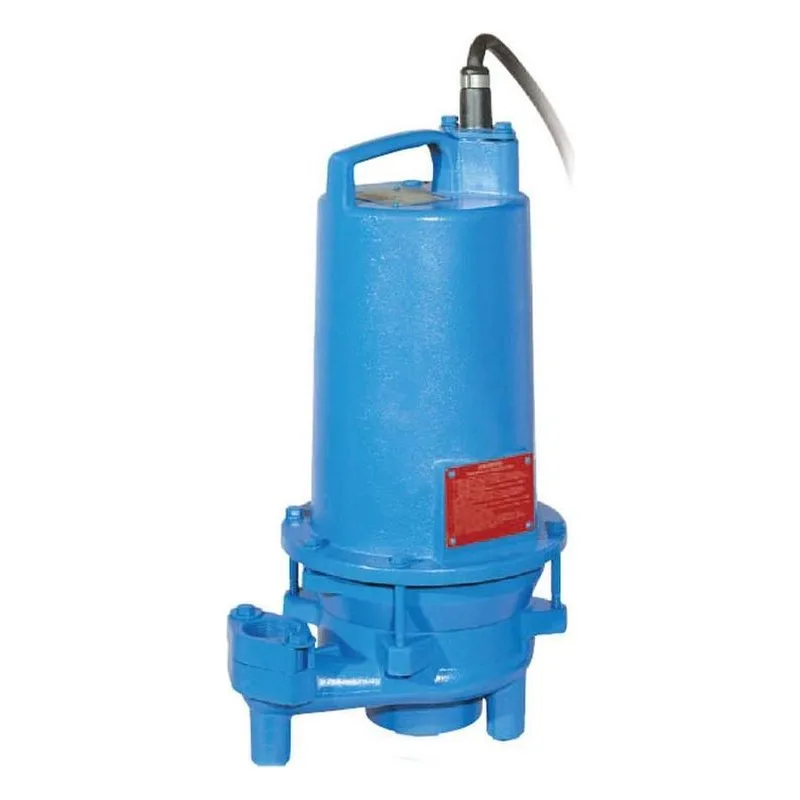

Barnes Submersible Grinder Recessed Vortex OGP Pump Package. 1-1/4" NPT, Vertical, Bolt-on Flange Discharge with a Silicon-carbide / Silicon-carbide / Buna-N Single Mechanical Seal. 2 HP, 240 Volts, 1 Ph (Single Phase) Motor. 12 Vane Vortex Bronze Impeller Design capable of handling Liquids at 104°F (40°C). Built with a 30 ft. (9.1 m) Cord Entry. A Crane Pumps & Systems Product.

Brand: Barnes

Series:

OGP Series

Item: 141461

Price on request

Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.

Returns accepted within 30 days. View Returns Policy

Estimate Shipping

Zip Code

Overview

Literature & Manuals

Find the manuals, product sheets and all the information you need

Type	Title	Link
Brochures	Barnes Pump OGP Omni Grind Series Brochure	View
Data Sheets	Barnes Pump OGP-AU Series Datasheet	View
Installation & Operation Manuals	Barnes Pump OGp Omni Grind Series Specifications	View
Installation & Operation Manuals	Barnes Pump OGP Series Manual	View
Installation & Operation Manuals	Barnes Pump OGP2022AUE Series Manual	View
Installation & Operation Manuals	Barnes Pump OGP2022AUE Series Specifications	View
Installation & Operation Manuals	Barnes Pump OGP2022CO Series Manual	View
Installation & Operation Manuals	Barnes Pump OGP2022CO Series Specifications	View

Series Information

OGP Series Information

Features & Benefits
Reduced Life-cycle Costs • Heavy-duty 2 hp motor with oil lubricated upper and lower ball bearing standard for minimal wear • Heavy-duty industrial silicon carbide seal for extended usage • Large pump end bearing and short shaft overhang signifi cantly extends mechanical seal life by reducing shaft defl ection • Reliable Solid Start Switch provides longer life-cycle and improves mean time between service calls • Oil-filled motor enables the pump motor to run cooler under severe operating conditions Higher Flow Version: Capacities to 55 GPM, Heads to 104 Feet Higher Head Version: Capacities to 33 GPM, Heads to 125 Feet Accessory Options: • Pump Support Stand • Break Away Fitting or moveable slide rail fitting • ESPS™ (Environmentally Sealed Pressure Switch) Level Controls Omni Grind Features 1. Quick disconnect cord 2. Threaded discharge " ange 3. Exclusive Slicerator 4. Integral capacitors for start and run 5. Oil # lled motor with overload protection 6. Silicon carbide mechanical seal for long life 7. Vortex impeller for solids handling

Features & Benefits

Reduced Life-cycle Costs
• Heavy-duty 2 hp motor with oil lubricated upper and lower ball bearing standard for minimal wear
• Heavy-duty industrial silicon carbide seal for extended usage
• Large pump end bearing and short shaft overhang signifi cantly extends mechanical seal life by reducing shaft defl ection
• Reliable Solid Start Switch provides longer life-cycle and improves mean time between service calls
• Oil-filled motor enables the pump motor to run cooler under severe operating conditions

Higher Flow Version:
Capacities to 55 GPM, Heads to 104 Feet

Higher Head Version:
Capacities to 33 GPM, Heads to 125 Feet

Accessory Options:
• Pump Support Stand
• Break Away Fitting or moveable slide rail fitting
• ESPS™ (Environmentally Sealed Pressure Switch) Level Controls

Omni Grind Features
1. Quick disconnect cord
2. Threaded discharge " ange
3. Exclusive Slicerator
4. Integral capacitors for start and run
5. Oil # lled motor with overload protection
6. Silicon carbide mechanical seal for long life
7. Vortex impeller for solids handling
