143301E

Reduced Life-cycle Costs
• Heavy-duty 2 hp motor with oil lubricated upper and lower ball bearing standard for minimal wear
• Heavy-duty industrial silicon carbide seal for extended usage
• Large pump end bearing and short shaft overhang signifi cantly extends mechanical seal life by reducing shaft defl ection
• Reliable Solid Start Switch provides longer life-cycle and improves mean time between service calls
• Oil-filled motor enables the pump motor to run cooler under severe operating conditions

Higher Flow Version:
Capacities to 55 GPM, Heads to 104 Feet

Higher Head Version:
Capacities to 33 GPM, Heads to 125 Feet

Accessory Options:
• Pump Support Stand
• Break Away Fitting or moveable slide rail fitting
• ESPS™ (Environmentally Sealed Pressure Switch) Level Controls

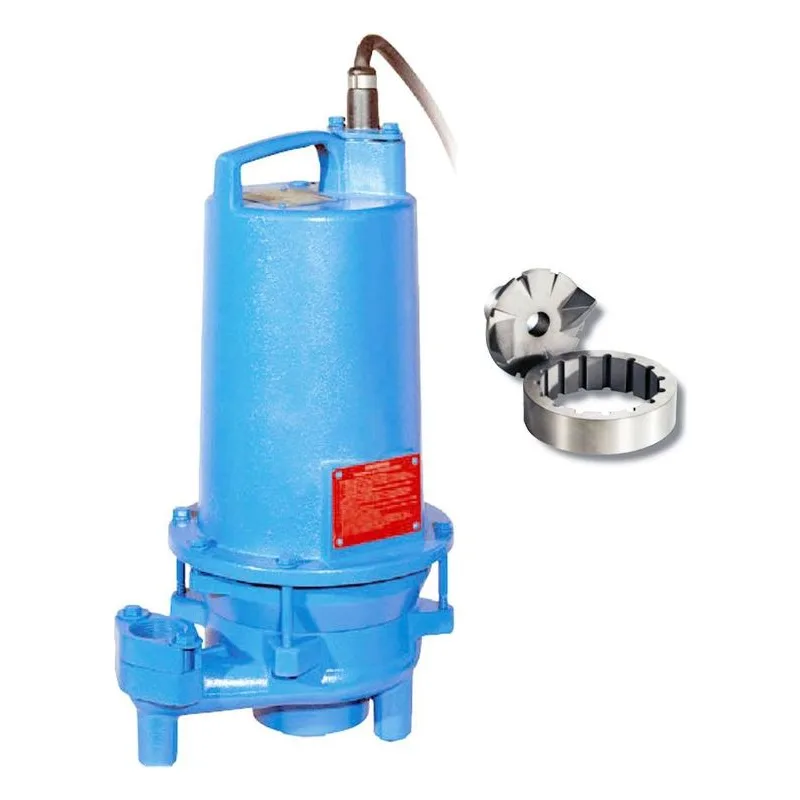

Omni Grind Features
1. Quick disconnect cord
2. Threaded discharge " ange
3. Exclusive Slicerator
4. Integral capacitors for start and run
5. Oil # lled motor with overload protection
6. Silicon carbide mechanical seal for long life
7. Vortex impeller for solids handling

Exclusive Slicerator™
The staggered slicing action of the grinder radial cutter dramatically increases the torque at the cutting surface, cuts with less horsepower, and increases the unit’s efficiency. Eliminates clogging with particularly troublesome objects such as plastic, rubber, sanitary napkins, disposable diapers and cloth items.
