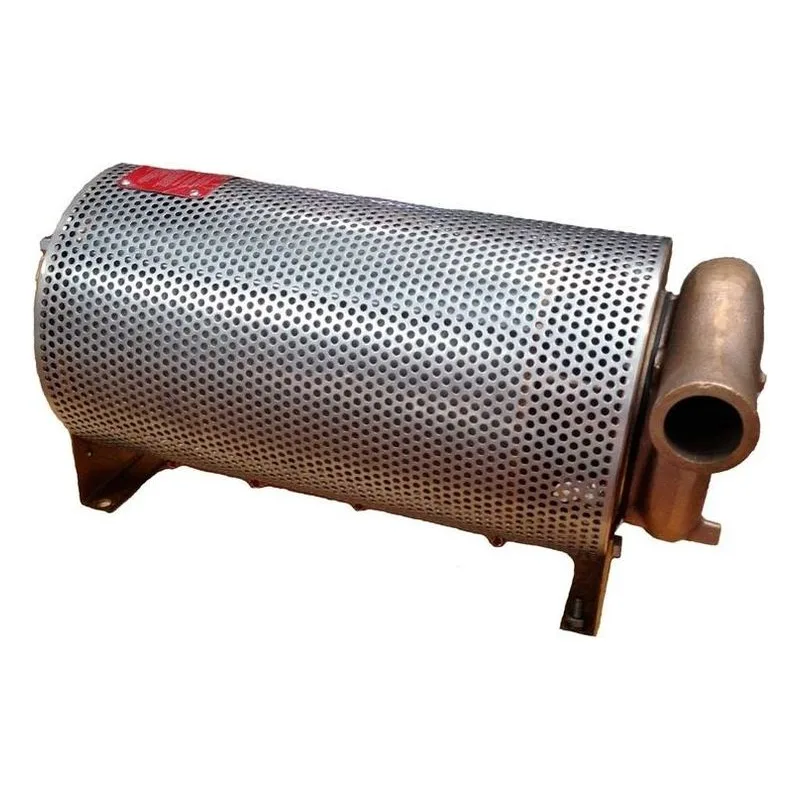

Image shown may not be actual product

SFU72

DISCONTINUED - Barnes Pumps SFU72 Water Display Fountain Pump, 1.25" Discharge, 3/4 HP, 230 Volt, 60 Hz, Single Phase, 3450 RPM, 087784 Part Number, UL Listed

Brand: Barnes

Series:

SFU Series

Item: SFU72

Price on request

Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.

Returns accepted within 30 days. View Returns Policy

Estimate Shipping

Zip Code

Overview

DISCONTINUED - Barnes Pumps SFU72 Water Display Fountain Pump, 1.25" Discharge, 3/4 HP, 230 Volt, 60 Hz, Single Phase, 3450 RPM, 087784 Part Number, UL Listed

Literature & Manuals

Find the manuals, product sheets and all the information you need

Type	Title	Link
Installation & Operation Manuals	Barnes Pump SFU Series Manual	View
Installation & Operation Manuals	Barnes Pump SFU Series Specifications	View
Parts Breakdowns	Barnes Pump SFU Series Repair Parts	View

Series Information

SFU Series Information

Features & Benefits
DISCHARGE - 1¾” (45mm) Hose Connection, 90° Rotation LIQUID TEMPERATURE - 145°F (63°C) Continuous VOLUTE - Brass ASTM A4, 85-5-5-5 INTERMEDIATE - Brass ASTM A4, 85-5-5-5 HOUSING TUBE - Stainless Steel HOUSING END PIECE - ASTM A4, 85-5-5-5 SCREEN: Design - Area, 264 sq. in. wrap around, 5/32" Dia. mesh Material - 304 Stainless Steel PUMP SUPPORTS - Brass DIAPHRAGM - Buna-N, Pressure Equalized IMPELLER: Design: 1/3 & 1/2HP - Four Vane Open, 3/4 & 1HP - Six Vane Open Material - Brass ASTM A4, 85-5-5-5 SHAFT - 416 Stainless Steel O-RINGS - Buna-N HARDWARE - 300 Series Stainless Steel SEAL - Single Mechanical, Carbon/Ceramic/Buna-N CABLE ENTRY - 12 ft. (4m) Cord. Pressure gromment for sealing and strain relief MOTOR END BEARING - Single Row, Ball, Oil Lubricated PUMP END BEARING - Sleeve, Oil Lubricated MOTOR: Design - NEMA L, Oil Filled, Squirrel Cage Induction Insulation - Class A SINGLE PHASE - Permanent Split Capacitor (PSC) Includes Overload Protection in Motor

Features & Benefits

DISCHARGE - 1¾” (45mm) Hose Connection, 90° Rotation
LIQUID TEMPERATURE - 145°F (63°C) Continuous
VOLUTE - Brass ASTM A4, 85-5-5-5
INTERMEDIATE - Brass ASTM A4, 85-5-5-5
HOUSING TUBE - Stainless Steel
HOUSING END PIECE - ASTM A4, 85-5-5-5
SCREEN: Design - Area, 264 sq. in. wrap around, 5/32" Dia. mesh
Material - 304 Stainless Steel
PUMP SUPPORTS - Brass
DIAPHRAGM - Buna-N, Pressure Equalized
IMPELLER:
Design: 1/3 & 1/2HP - Four Vane Open, 3/4 & 1HP - Six Vane Open
Material - Brass ASTM A4, 85-5-5-5
SHAFT - 416 Stainless Steel
O-RINGS - Buna-N
HARDWARE - 300 Series Stainless Steel
SEAL - Single Mechanical, Carbon/Ceramic/Buna-N
CABLE ENTRY - 12 ft. (4m) Cord. Pressure gromment for sealing and strain relief
MOTOR END BEARING - Single Row, Ball, Oil Lubricated
PUMP END BEARING - Sleeve, Oil Lubricated
MOTOR: Design - NEMA L, Oil Filled, Squirrel Cage Induction
Insulation - Class A
SINGLE PHASE - Permanent Split Capacitor (PSC) Includes Overload Protection in Motor
