111617-50

SGV Pump Advantages
• Recessed vortex impeller design virtually eliminates pump damage from cavitation
• Unique and robust 3-bearing shaft support design significantly extends mechanical seal life by minimizing shaft deflection
• Cast iron impeller will not corrode
• Exclusive Slicerator grinder eliminates jams
• Quick-connect power cord eliminates wiring mistakes
• Available from factory with pre-wired and tested basin package
• Available in 2 hp, 3 hp, 5 hp, and 7.5 hp models
• Double mechanical seal provides clean environment for long life

UltraGrind™ Systems Offer
• Low initial costs
• Extended MTBSC (Mean Time between Service Calls)
• Low life-cycle costs
• Installation ease
• Trouble-free operation

High Capacity

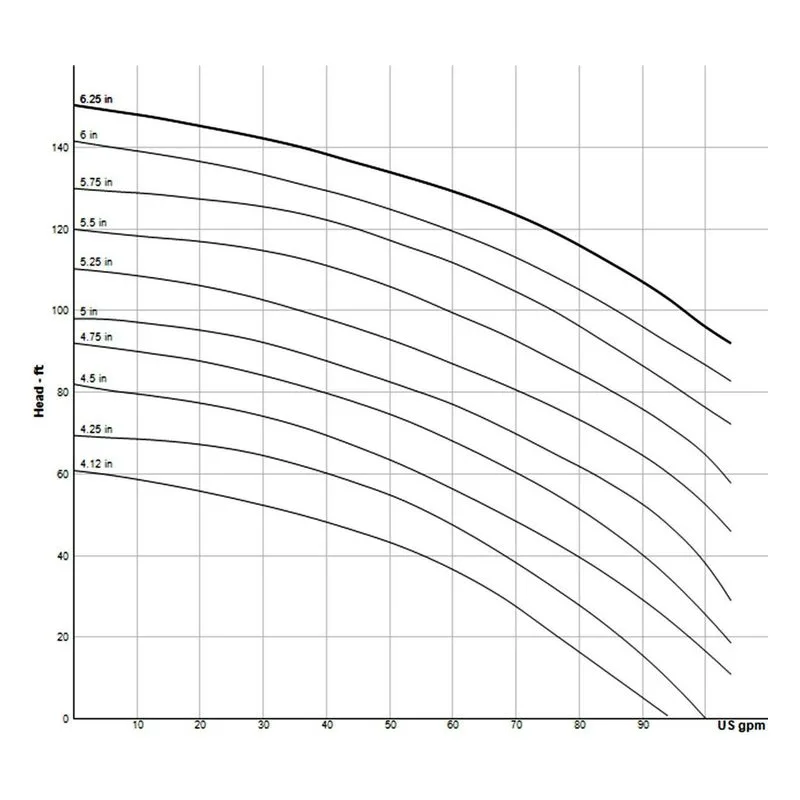

To 200 (duplex) gpm; heads to 160 ft TDH

Installation and Start-Up Assistance
Barnes’ maintenance experts can provide on site training and assistance to make sure installation is correct, efficient and easily repeatable.

Exclusive Slicerator™
The staggered slicing action of the radial grinder cutter dramatically reduces the
torque requirement of the motor, cuts with less horsepower, and increases the unit’s
efficiency. This helps prevent clogging with particularly troublesome objects such as
plastic, rubber, sanitary napkins, disposable diapers and cloth items.

UltraCAP II™ Removable Dry Well
Optional rotomolded polyethylene removable dry well with integrated control panel
eliminates the need to connect any wires inside the pump station.

Flexible Connector
Prevents potential misalignment problems
by compensating for different settling
rates of basin and discharge pipe.

Level Control Systems
Options including modularized control
assemblies are available including
mechanical floats and the ESPS™
(Environmentally Sealed Pressure Switch).

Stealth™ Control Panels
UL Listed, family of Stealth control panels provides cost effective and reliable
pump station operation along with potential malfunction warning.
