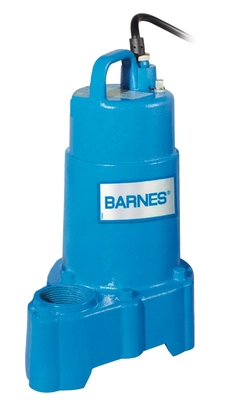

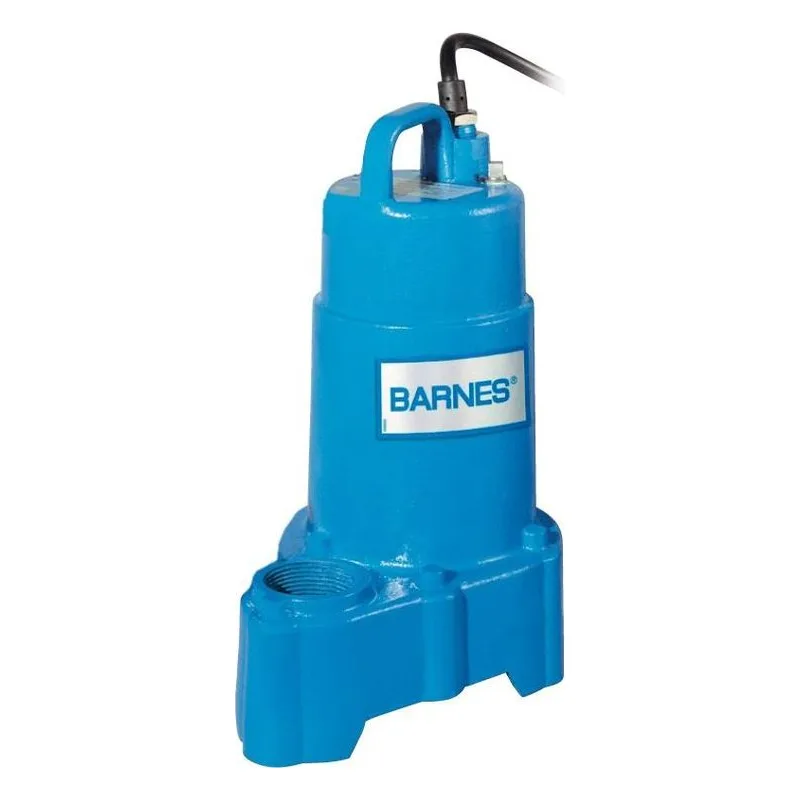

Image shown may not be actual product

SP33

Name: SP33 PumpCatalog Barnes
Brand: Barnes
SKU: SP33
Price: 262.64 USD
Availability: OutOfStock

Barnes Pumps SP33 Submersible Effluent Sump Pump, 1.5" Discharge, 1/3 HP, 120 Volt, 60 Hz, Single Phase, 3450 RPM, 1/2" Solids Handling, 112547 Part Number, 10' Cord Length, Manual

Brand: Barnes

Series:

SP Series

Item: SP33

List: ~~$392.00~~

$262.64

Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.

Returns accepted within 30 days. View Returns Policy

Estimate Shipping

Zip Code

Overview

Barnes Pumps SP33 Submersible Effluent Sump Pump, 1.5" Discharge, 1/3 HP, 120 Volt, 60 Hz, Single Phase, 3450 RPM, 1/2" Solids Handling, 112547 Part Number, 10' Cord Length, Manual

Literature & Manuals

Find the manuals, product sheets and all the information you need

Type	Title	Link
Brochures	Barnes Pump SP33, SP50 & SP75 Series Brochure	View
Installation & Operation Manuals	Barnes Pump SP33 Series Manual	View
Installation & Operation Manuals	Barnes Pump SP33 Series Specifications	View
Installation & Operation Manuals	Barnes Pump SP33HTX Series Specifications	View
Installation & Operation Manuals	Barnes Pump SP33VFAL Series Specifications	View
Installation & Operation Manuals	Barnes Pump SP50 Series Manual	View
Installation & Operation Manuals	Barnes Pump SP50 Series Specifications	View
Installation & Operation Manuals	Barnes Pump SP75X Series Manual	View
Parts Breakdowns	SP33, SP50 & SP75 Sump Pump Parts 5/2020	View

Series Information

SP Series Information

Features & Benefits
• Cast iron vortex impeller • 1/2” spherical solids capacity • Permanent split capacitor motor • Automatic thermal overload protection • Upper and lower ball bearings • CSA C/US listed • Stainless steel shaft hardware • Heavy duty industrial Type 21 carbon/ ceramic seal • SP33 - 1/3 HP, SP50 - 1/2 HP, SP75 - 3/4 HP
General Description
Best Performance in the Industry • Maximum flow rate to 80gpm (SP75), 66gpm (SP50), 50gpm, (SP33) • Maximum shutoff head of 33' • Permanent split capacitor motor for reliable, high performance, longer motor life, greater starting torque, and lower amp draw • Stainless steel hardware and shaft • GFCI compatible for safety • Pass up to 1/2” solids Interchangeability with other Effluent Pumps Barnes effluent pumps save time and replacement costs because they are interchangeable with competing effluent pump models. They require no additional plumbing when replacing most competitors’ pumps.

Popular Series

Series associated to this product and brand

Features & Benefits
• Cast iron vortex impeller • 1/2” spherical solids capacity • Permanent split capacitor motor • Automatic thermal overload protection • Upper and lower ball bearings • CSA C/US listed • Stainless steel shaft hardware • Heavy duty industrial Type 21 carbon/ ceramic seal • SP33 - 1/3 HP, SP50 - 1/2 HP, SP75 - 3/4 HP
General Description
Best Performance in the Industry • Maximum flow rate to 80gpm (SP75), 66gpm (SP50), 50gpm, (SP33) • Maximum shutoff head of 33' • Permanent split capacitor motor for reliable, high performance, longer motor life, greater starting torque, and lower amp draw • Stainless steel hardware and shaft • GFCI compatible for safety • Pass up to 1/2” solids Interchangeability with other Effluent Pumps Barnes effluent pumps save time and replacement costs because they are interchangeable with competing effluent pump models. They require no additional plumbing when replacing most competitors’ pumps.
