B85660

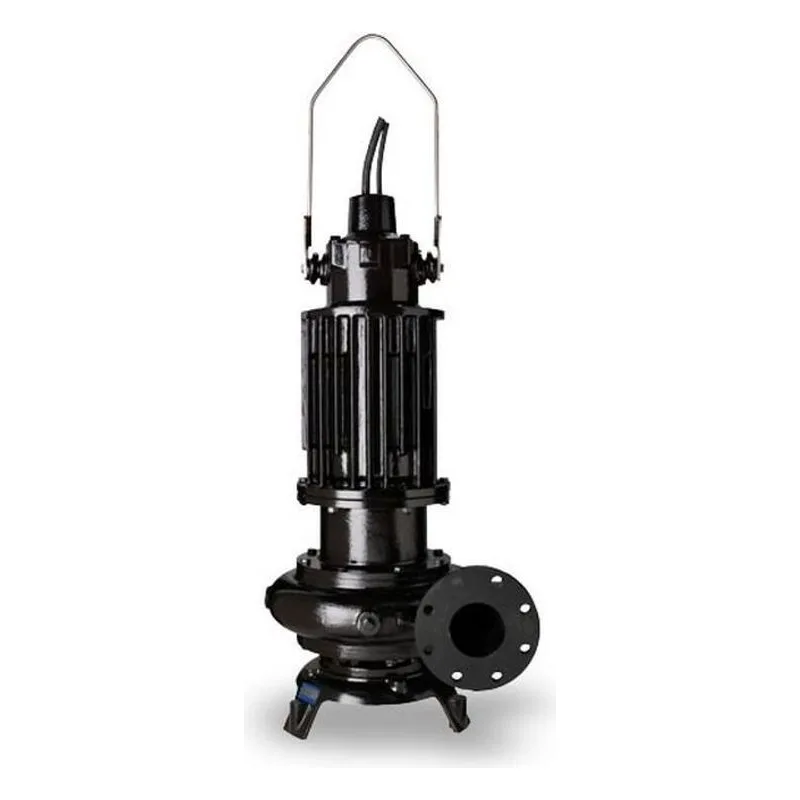

Berkeley BSW Pump Series Key Features:
- 4” Flanged discharge size
- Flows up to 1000 gpm
- Pressures up to 70 feet TDH
- Continuous duty motor
- Stainless steel wear ring
- 100,000 Hour bearing life

Construction Features:
- Moisture detector detects moisture entering seal cavity andtransmits signal to controller
- Continuous duty motor for outstanding reliability
- Stainless steel wear ring – more resistant to abrasives
- 100,000 Hour bearing life ensures long pump life
- A heavy cast iron motor frame houses the silicon steel laminations of the stator and a reliable die-cast rotor in a high efficiency motor design
- High-quality one piece shaft
- Two separate mechanical seals protect the motor from the pumpage for added reliability
- Impellers have blunt, well-rounded leading edges and a thick hydrofoil shape. Impellers are a twovane design to pass large solids and stringy material
- Electrical power and control cable assemblies are epoxy sealed at the motor’s entry point
- Automatic resetting thermostats are imbedded in the motor windings
- A power and control cable terminal board ensures positive wire connections and provides an additional seal between hostileenvironment and motor windings
