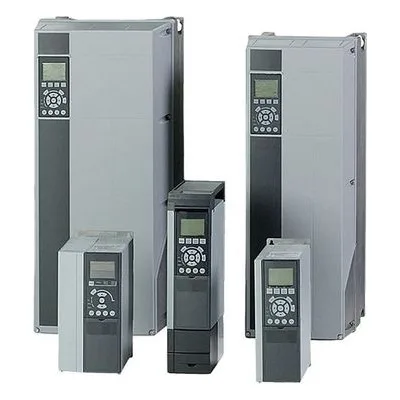

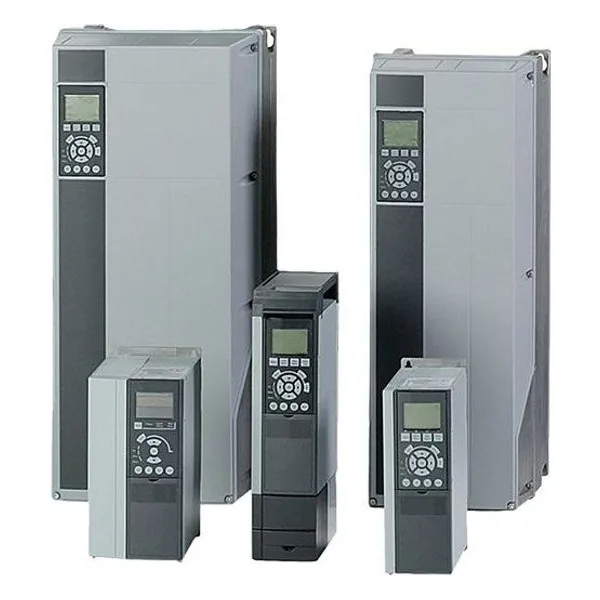

Pentek Intellidrive XL Variable Frequency Drive VFD

An Easy Way to Manage Water and Energy

Pentek Intellidrive™ XL VFD, the latest addition to our line of our variable frequency drives, is designed for large horsepower pumping applications. Up to 150 HP. Selection is easy. Setup for single pump, constant pressure is simple. And you have powerful opportunities to customize as needs arise. All backed by expert, dedicated tech support, available to quickly and efficiently resolve any issues.

The Intellidrive XL VFD drive is designed to be used on submersible pumps with lead lengths up to 1,000 feet and with above ground pumps. Standard set-up is for constant pressure. However, the Pentek Intellidrive XL may be custom programmed for constant pressure, constant flow and level control. With a wider variety of applications, enhanced sleep mode, protection against dry runs, overcurrent and over pressure, the Pentek Intellidrive XL is the one drive to meet all of your needs.

Pentek Intellidrive™ XL VFD Variable Frequency Drive Benefits & Features

Simple Setup

• Enter Pump and Motor Settings

• Submersible/Above Ground

• Horsepower

• Voltage, Nominal Current

• Nominal Speed

Power Ratings

• 1 Phase 230V – 7.5 to 30 HP

• 3 Phase 230V – 1 to 60 HP

• 1 Phase 460V – 10 to 50 HP

• 3 Phase 460V – 1 to 150 HP

• 3 Phase 575V – 1 to 150 HP

Enclosure Types:

• NEMA 1

• NEMA 3R

• NEMA 4X

• IP20 Open / Chassis

More Standard I/O:

• Digital Inputs – 6

• Analog Inputs – 5

• Pulse Inputs – 2

• Digital Outputs – 2

• Analog Output – 4

• Relay Output – 2

Communication:

• Includes Modbus RTU.

• Also available: PROFIBUS, DeviceNet, PROFINET, EtherNet/IP, Modbus TCP

Other Features:

• Real Time Clock Battery Back-up
