205956

Features & Benefits

The BIC Series is designed to deliver dependable performance in dewatering applications involving clear water and light sewage. Its twin channel impeller design allows liquid to move efficiently while accommodating small solids, making it well suited for rainwater, surface water, and groundwater transfer.

The pump's hydraulic efficiency ensures strong flow rates while maintaining consistent pressure, allowing it to perform reliably across a variety of light-duty applications. This makes the series a practical solution for users who require both performance and durability in daily operation.

EVO versions enhance reliability through advanced sealing systems, improving protection against water intrusion while supporting longer service life in submerged conditions.

Construction and Operational Design

The BIC Series is constructed using GG20 cast iron across its key structural components, including the pump body, impeller, and motor housing. This provides the mechanical strength required for continuous-duty operation in wet environments. Stainless steel elements are incorporated where needed to improve corrosion resistance and overall durability.

The submersible motor is designed for continuous operation and runs at approximately 3450 RPM, providing reliable power delivery across varying system demands. Both single-phase and three-phase configurations are available, allowing for flexible integration into different electrical setups.

Single-phase models can include optional float switches for automatic operation, while certain three-phase models utilize relay systems to ensure correct float switch function. When installed correctly, these pumps are capable of operating at submersion depths up to 65 feet and handling liquid temperatures up to 104°F.

Design Characteristics

Impeller Design: Twin channel two vane impeller provides efficient flow while allowing passage of small solids

Solids Handling Capability: Handles solids up to 20 × 10 mm, making it suitable for light sewage and debris

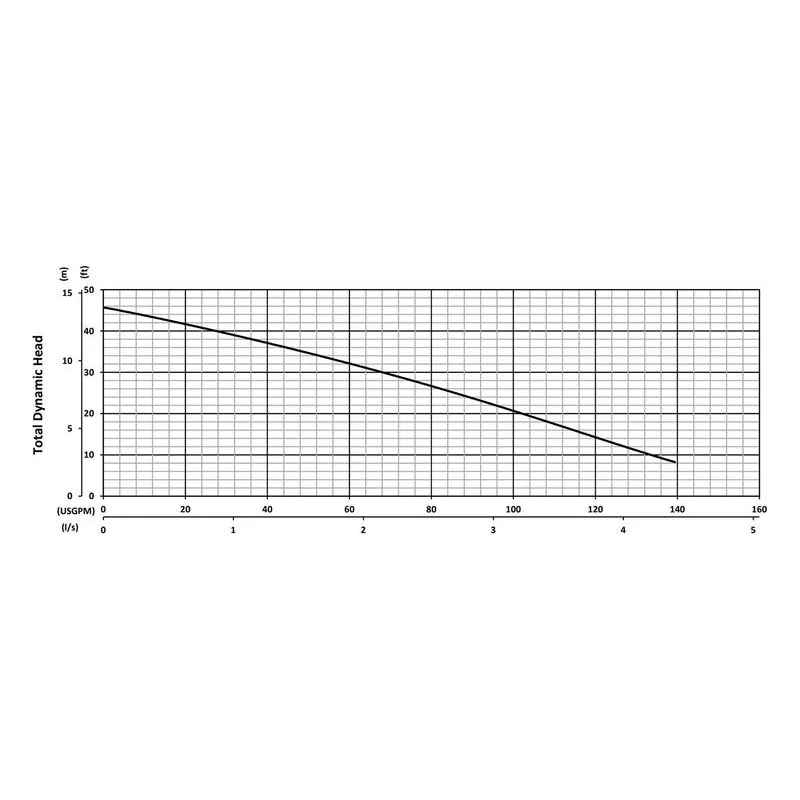

Hydraulic Performance: Designed for strong flow and head performance in dewatering and fluid transfer applications

Seal Configuration: EVO versions include a double mechanical seal in an oil chamber for enhanced protection

Construction Materials: Cast iron components provide structural strength while stainless steel parts improve durability

Maintenance Accessibility: Inspection oil chamber allows for easier monitoring and servicing of internal components

Technical Summary

Power Range: 0.5 HP to 2 HP

Flow Capacity: Up to 139 GPM

Head Range: Up to 46 feet

Solids Handling: Up to 20 mm (0.79 in)

Voltage Options: 115V, 230V, 460V

Operation: Continuous duty submersible motor

Typical Services & Ideal Applications

The BIC Series is designed for clear water and light sewage applications where consistent hydraulic performance and moderate solids handling are required. These pumps are commonly used for rainwater collection systems, groundwater removal, surface water drainage, and light dewatering tasks.

Their efficient design makes them suitable for residential, commercial, and light industrial use, particularly in environments where water clarity varies but heavy solids are not present. The combination of durable materials, accessible maintenance features, and dependable performance allows the BIC Series to operate effectively in a wide range of fluid transfer applications.
