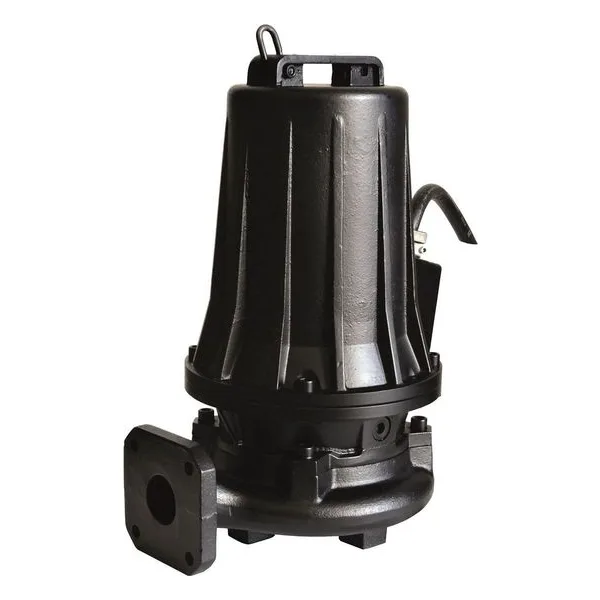

H2 Series Submersible Electric Pumps

The H2 Series Advantage: High-Head Dewatering with Reliable Solids Handling

The BJM Pumps H2 Series Submersible Electric Pumps are engineered for high-pressure dewatering applications where both performance and durability are critical. Designed with double channel impellers, this series delivers efficient fluid movement while handling solids, making it ideal for clear water and light sewage environments.

Built for demanding installations, the H2 Series combines high-head capability with rugged construction, making it a dependable solution for water features, irrigation systems, and dewatering applications requiring strong discharge pressure.

Engineered for High Pressure and Efficient Flow

The H2 Series is specifically designed for applications where elevated head performance is essential. Across the full model range, these pumps deliver strong discharge pressure along with high flow capacity, supporting consistent performance in systems such as fountains, waterparks, and agricultural irrigation.

The double channel impeller design enables efficient liquid movement while allowing small solids to pass through the pump, reducing clogging risk and maintaining steady operation.

Key Features & Benefits

• High-Head Performance: Designed to deliver strong discharge pressure for demanding applications

• Double Channel Impeller: Handles solids while maintaining efficient hydraulic performance

• Solids Handling Capability: Supports solids up to 20 mm in select models

• Seal Minder® Protection: Built-in probe monitors seal condition for added reliability

• Thermal Protection System: Dual switches prevent overheating during operation

• Heavy-Duty Construction: GG25 cast iron components ensure long-term durability

Advanced Protection and Long-Term Reliability

The H2 Series is designed with integrated monitoring and protection systems to support continuous-duty operation. Each pump includes a Seal Minder® moisture sensing probe, providing early warning of seal failure and helping prevent internal damage.

Dual thermal switches embedded in the motor windings protect against overheating by interrupting operation when temperature limits are reached. Combined with durable materials and precision engineering, these features help ensure long service life in demanding environments.

Performance Specifications

• Horsepower (HP): 2 HP to 13 HP

• Max Flow: Up to 247 GPM

• Max Head: Up to 193 ft

• Max Solids Handling: Up to 20 mm

• Voltage: 460V, 3-phase

• Max Liquid Temperature: 104°F

• Max Submersion Depth: Up to 65 ft

Typical Services & Ideal Applications

The H2 Series is designed for clear water and light sewage applications requiring high discharge pressure and reliable performance. These pumps are commonly used in water fountains, waterparks, irrigation systems, agricultural operations, and dewatering installations where elevated head is required.

Their combination of high-pressure capability, solids handling, and durable construction makes them well suited for both continuous and heavy-duty operating environments.
