JXF Series High Temperature / Corrosion Resistant Dewatering Pumps

The JXF Series Advantage: Built for Heat and Corrosion

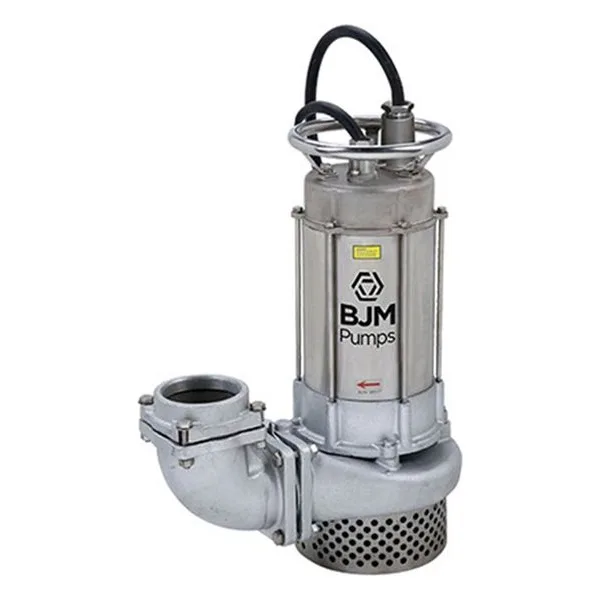

The BJM Pumps JXF Series Fahrenheit® Submersible Pumps are engineered for the most demanding dewatering applications where both high temperatures and corrosive liquids are present. By combining cast 316 stainless steel construction with the ability to handle liquids up to 200°F (93°C), this series delivers dependable performance in extreme conditions where standard pumps cannot operate.

From compact low-flow units to high-capacity industrial models, the JXF Series provides durability, reliability, and consistent performance across a wide operating range.

Engineered for Extreme Environments

The JXF Series features a fully cast 316 stainless steel construction with no welds, ensuring superior corrosion resistance and structural integrity. This design eliminates weak points while improving resistance to aggressive chemicals, salts, and harsh industrial fluids.

Equipped with high-speed 2-pole motors operating at approximately 3450 RPM, the JXF pumps deliver strong hydraulic performance while maintaining efficiency in high-temperature applications.

Key Features & Benefits

• High Temperature Capability: Handles liquids up to 200°F (93°C)

• Corrosion-Resistant Construction: Cast 316 stainless steel with no welds

• High Flow Capacity: Delivers up to approximately 700+ GPM

• Side Discharge Design: Simplifies installation and supports guide rail systems

• Advanced Seal System: Double mechanical seal with independent lip seal

• Seal Minder® Monitoring: Moisture detection system for early warning of seal failure

• High-Temperature Motor Design: Class R insulation rated for extreme heat

Designed for Continuous Duty in Harsh Conditions

The JXF Series is engineered for continuous-duty operation in both high-temperature and corrosive environments. Class R motor insulation supports extreme heat resistance, while thermal sensors embedded in the windings help protect against overheating.

A robust sealing system, including a double mechanical seal paired with a separate lip seal, provides multiple layers of protection against fluid intrusion. This ensures longer service life and reduced maintenance in demanding operating conditions.

Performance Specifications

• Horsepower (HP): 0.5 HP to 30 HP

• Max Flow: Up to ~700+ GPM

• Max Head: Up to ~180 ft

• Max Solids Handling: Up to 3/8" (larger models up to ~1")

• Max Liquid Temperature: 200°F (93°C)

• Voltage Options: Single-phase and three-phase available

• Motor Speed: ~3450 RPM

Typical Services & Ideal Applications

The JXF Series is specifically designed for challenging applications involving both high temperatures and corrosive environments. These pumps are widely used in chemical processing systems, industrial wastewater treatment, food and beverage facilities, hot liquid handling systems, and marine environments.

Their ability to withstand both thermal stress and chemical exposure makes them ideal for applications requiring reliable performance and long service life under extreme operating conditions.
