Features & Benefits

The KZN Series delivers dependable slurry pumping performance with strong resistance to abrasion and wear. The integrated agitator ensures solids remain suspended, improving efficiency and reducing maintenance.

With multiple configurations available, users can select models optimized for either higher head pressure or greater flow capacity depending on application requirements.

Construction and Operational Design

KZN pumps are constructed using Class 30 ductile iron housings with hardened ductile iron volutes for enhanced durability. Critical wear components, including the impeller, wear plate, and agitator, are manufactured from high chrome iron to resist abrasion.

The pumps feature a semi-open impeller design that allows solids to pass through efficiently without clogging, even in high-density slurry applications.

A double mechanical seal system with silicon carbide faces is housed in an oil-filled chamber, providing reliable sealing and extended service life. Additional protection is provided by heavy-duty lip seals and robust sealing arrangements.

Each pump is powered by a 4-pole motor operating at approximately 1750 RPM. Class H insulation supports demanding operating conditions, while built-in thermal and amperage overload protection safeguards the motor.

Design Characteristics

Hydraulic Design: Semi-open impeller optimized for slurry and solids handling

Abrasion Resistance: Hi-chrome iron impeller, wear plate, and agitator

Agitator System: Built-in agitator keeps solids suspended and improves efficiency

Seal System: Oil-filled double mechanical seal with silicon carbide faces

Materials of Construction: Class 30 ductile iron with hardened volute components

Solids Handling: Capable of passing solids up to approximately 1.5 inches

Motor Design: 4-pole motor (~1750 RPM) with Class H insulation

Protection Features: Thermal and overload protection with optional Seal Minder® system

Configurations: Available in standard, high head (H), and high flow (L) models

Technical Summary

Power Range: 5 HP to 50 HP

Flow Capacity: Up to ~2100+ GPM

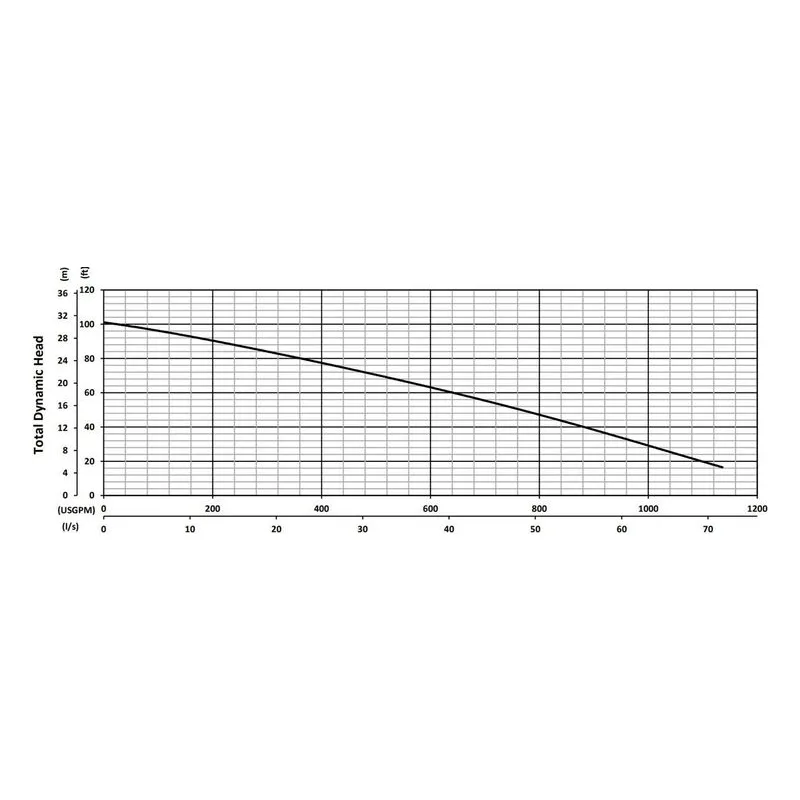

Head Range: Up to ~100+ ft

Solids Handling: Up to ~1.5 inch

Temperature Capability: Up to 104°F (40°C)

Motor Speed: ~1750 RPM

Typical Services & Ideal Applications

The KZN Series is designed for abrasive slurry handling across a wide range of industries. These pumps are commonly used in mining, construction dewatering, hydraulic fracturing, mineral processing, and industrial wastewater handling.

Their rugged construction, integrated agitation, and flexible performance options make them ideal for applications where solids, wear, and reliability are key concerns.
