200757

Features & Benefits

The KZNRF Series combines the abrasion resistance of hardened-volute designs with high-temperature motor technology, resulting in a pump capable of operating reliably in the most demanding environments.

This dual capability significantly reduces downtime, extends wear life, and improves overall system reliability in extreme applications.

Construction and Operational Design

KZNRF pumps are constructed using Class 30 ductile iron, with a hardened volute engineered for severe abrasion resistance.

Critical wear components, including the impeller, agitator, and wear plate, are manufactured from high chrome iron to withstand aggressive slurry conditions.

The semi-open impeller design allows efficient passage of solids while reducing clogging in high-density slurry applications.

High-Temperature Motor System

Class R insulation for elevated thermal limits

Oil-filled motor chamber for cooling and lubrication

Embedded thermal sensors in each phase winding

High-temperature-rated power and signal cables

This system ensures consistent performance even in sustained high-temperature environments.

Seal and Protection System

The pumps feature a dual mechanical seal system with silicon carbide faces housed in an oil-filled chamber for maximum durability.

The Seal Minder® system provides early warning of moisture intrusion, helping prevent seal failure and reducing maintenance costs.

Design Characteristics

Hydraulic Design: Semi-open impeller for slurry handling

Abrasion Resistance: Hardened ductile iron volute with high chrome wear parts

Temperature Capability: Up to 200°F fluid handling

Agitator System: Heavy-duty high-chrome agitator

Seal System: Oil-filled dual mechanical seals

Solids Handling: Up to ~1.5 inches

Motor Design: 4-pole (~1750 RPM) with high-temperature insulation

Protection Features: Thermal sensors and moisture detection system

Configurations: Standard (RF), high-head (HRF/CHRF), high-flow (LRF)

Technical Summary

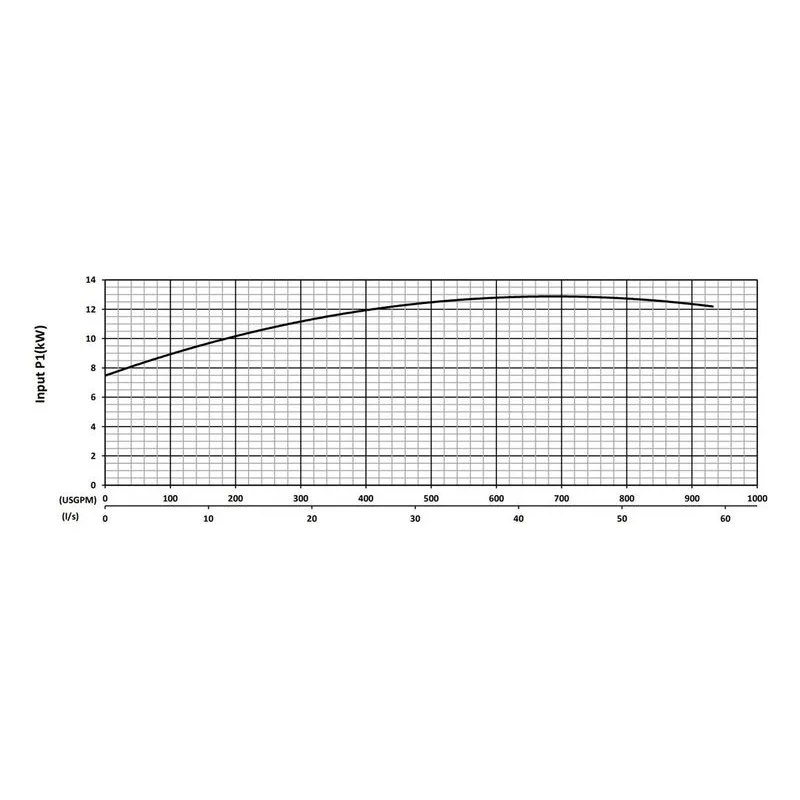

Power Range: 5 HP, 30 HP

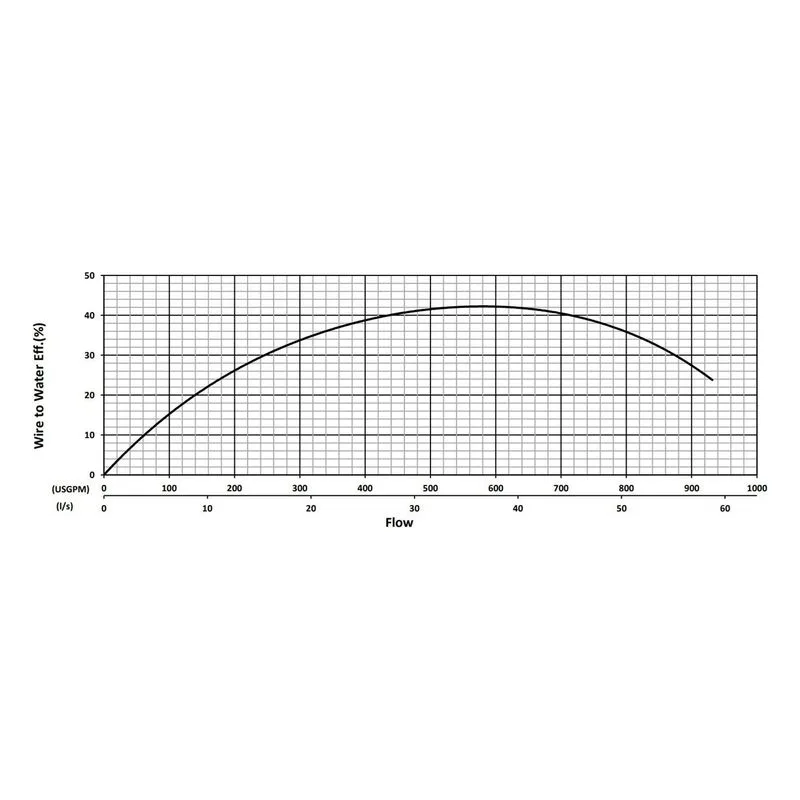

Flow Capacity: Up to ~1,691 GPM

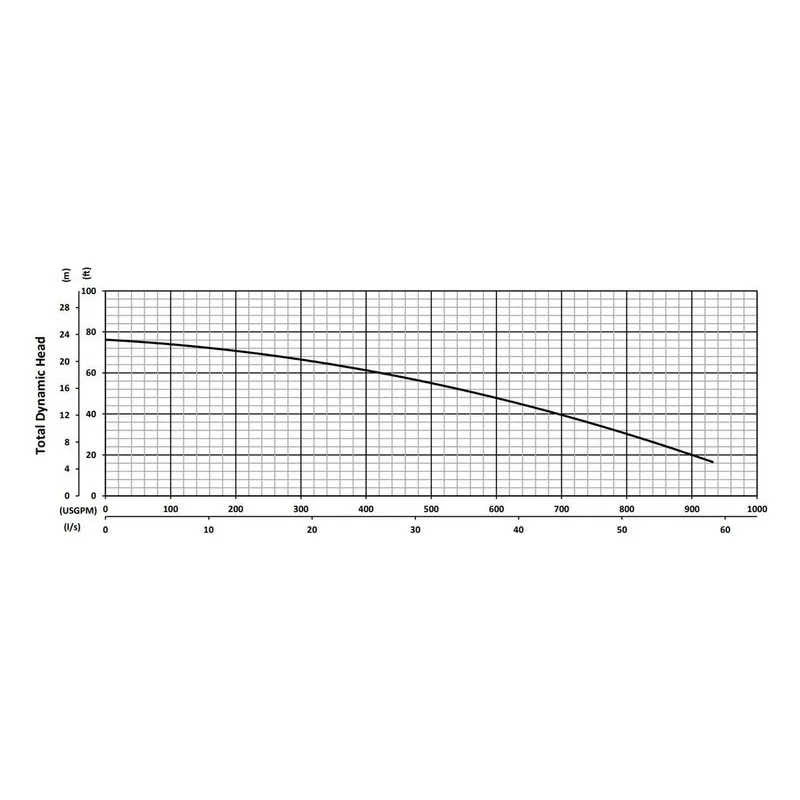

Head Range: Up to ~102 ft

Solids Handling: Up to ~1.5 inch

Temperature Capability: Up to 200°F (93°C)

Motor Speed: ~1750 RPM

Typical Services & Ideal Applications

The KZNRF Series is designed for applications where extreme abrasion and high temperature occur together.

Typical uses include mining, industrial process fluids, power generation, and any operation requiring maximum durability under combined thermal and wear stress.
