205641

Features & Benefits

The Perfecta Series is designed specifically for applications involving corrosive or chemically aggressive liquids. Its lightweight, non-metallic construction allows it to operate reliably in environments where traditional metal pumps would degrade or fail. The series focuses on portability, chemical compatibility, and ease of use while maintaining consistent performance.

Construction and Materials

The Perfecta Series uses engineered thermoplastics for the pump body and hydraulics, eliminating corrosion concerns associated with metal construction. Internal components are designed to resist chemical attack, while sealing elements are available in multiple elastomer options such as Buna-N, FKM, and EPDM to match application requirements. Hardware materials vary by model and may include stainless steel or titanium depending on the level of corrosion resistance required.

Hydraulic and Pump Design

These pumps are designed for clean liquid transfer and light-duty dewatering in chemically aggressive environments. The hydraulic design prioritizes compatibility and reliability rather than solids handling, making them best suited for applications with minimal debris. Compact dimensions allow installation in tanks, pits, and confined spaces.

Motor and Operational Design

The Perfecta Series operates with a compact motor design available in both 50 Hz and 60 Hz configurations. The motors are designed for continuous duty and include built-in overload protection to prevent overheating. Cooling is achieved through surrounding liquid, supported by the pump's compact construction.

Model Variations

The Perfecta Series includes multiple configurations tailored to different levels of corrosion resistance. Standard GF models provide general chemical resistance for moderate applications. IGF models offer enhanced corrosion resistance through upgraded materials. TIGF models provide maximum corrosion resistance using titanium hardware and advanced elastomer options, making them suitable for highly aggressive environments.

Design Characteristics

Pump Type: Submersible, non-metallic chemical-duty

Hydraulics: Clean liquid and chemical transfer

Solids Handling: Minimal, up to approximately 0.25 inch

Motor Design: Compact continuous-duty motor

Cooling Method: Surrounding pumped liquid

Installation: Portable or fixed

Protection: Built-in overload protection

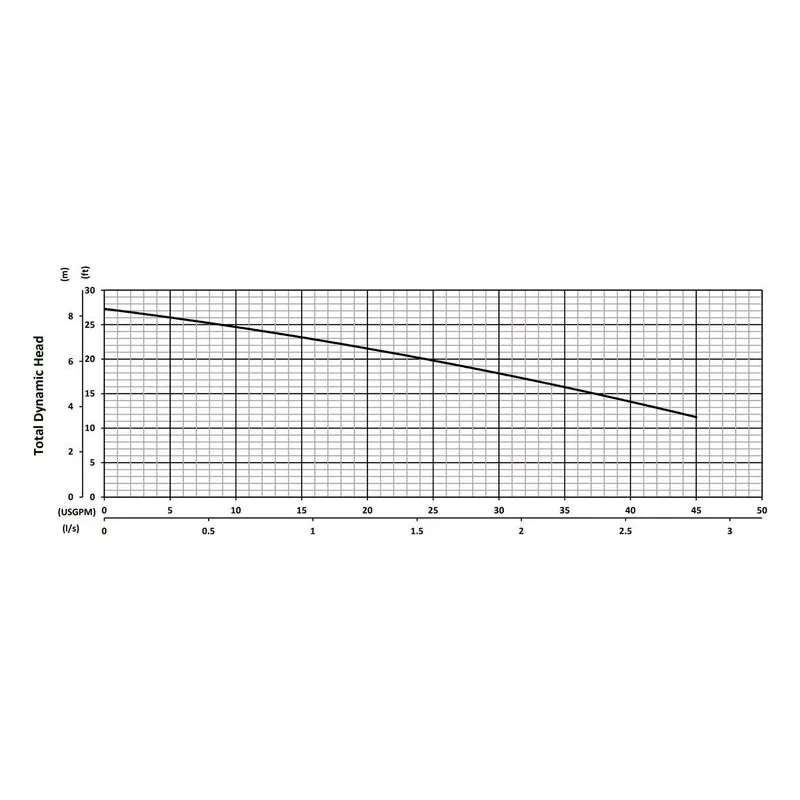

Technical Summary

Power Range: 0.4 HP

Flow Capacity: Up to ~45 GPM

Head Range: Up to ~28 ft

Solids Handling: Up to ~0.25 inch

Temperature Capability: ~135°F (57°C)

Motor Speed: ~2800-3450 RPM

Typical Services & Applications

The Perfecta® Series is used in applications requiring reliable performance in corrosive environments. Common uses include chemical transfer, containment systems, industrial processing, laboratory applications, and saltwater handling.
