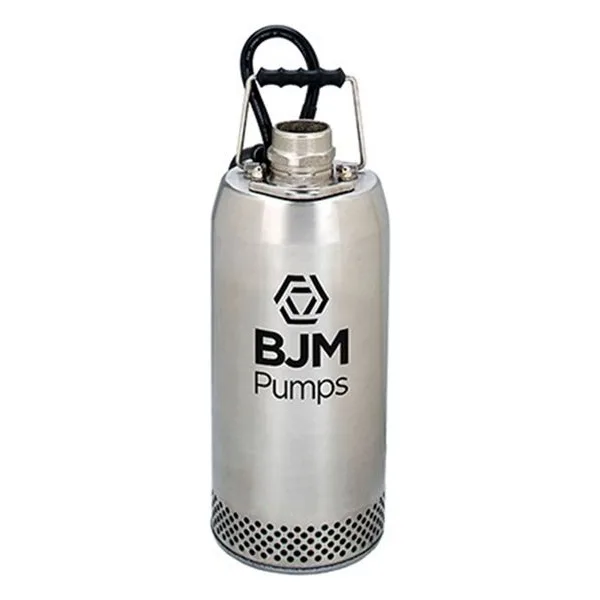

RX Series Lightweight, Corrosion-Resistant Dewatering Pumps

Lightweight Stainless Steel Dewatering for Corrosive Environments

The BJM Pumps RX Series is designed for lightweight, corrosion-resistant dewatering using fully cast 316 stainless steel construction. These pumps are ideal for applications involving corrosive liquids, saltwater, washdown, and chemically aggressive environments where traditional cast iron pumps would fail.

With a compact design and top discharge configuration, the RX Series delivers reliable performance while maintaining portability and ease of use.

Built for Corrosion Resistance

RX Series pumps are constructed entirely from cast 316 stainless steel, including the motor housing, volute, and internal components. The cast construction eliminates welds, improving structural integrity and reducing corrosion risk at joints.

Standard FKM elastomers provide additional chemical resistance, with optional EPDM or Buna materials available to match specific application requirements.

Key Features & Benefits

• Full 316 stainless steel construction for corrosion resistance

• Cast construction with no welds for increased durability

• Lightweight, portable design

• Top discharge configuration for motor cooling

• Mechanical seal system for reliable operation

• FKM elastomers standard (optional EPDM or Buna)

• Built-in thermal overload protection

• Class F motor insulation

• Three-phase models suitable for VFD operation

• Continuous duty rated

Designed for Corrosive Dewatering

The RX Series is optimized for clean water and lightly contaminated corrosive fluids with limited solids. These pumps provide a direct stainless steel alternative to standard dewatering pumps where corrosion resistance is critical for long-term reliability.

Performance Specifications

• Horsepower (HP): 1 HP, 2 HP

• Max Flow: Up to ~117 GPM

• Max Head: Up to ~70 ft

• Max Solids Handling: Up to ~1/4"

• Motor Speed: ~3450 RPM

• Max Liquid Temperature: ~104°F (40°C)

• Motor Insulation: Class F

Typical Services & Ideal Applications

• Corrosive liquid dewatering

• Saltwater and marine pumping

• Industrial washdown and drainage

• Food and beverage cleaning areas

• Chemical and petrochemical facilities

• Wastewater with corrosive components
