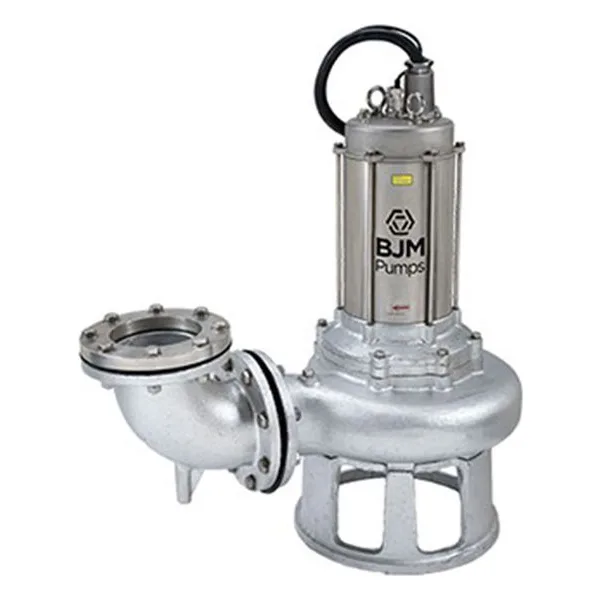

SKX Series Corrosion-Resistant, Solids-Handling, Non-Clog Shredder Pumps

Corrosion-Resistant Shredding for Demanding Wastewater Applications

The BJM Pumps SKX Series is designed for corrosion-resistant, solids-handling wastewater applications, combining full stainless steel construction with an integrated shredding system to manage difficult solids.

Engineered for environments where both corrosion and clogging are concerns, the SKX Series delivers reliable performance in industrial, municipal, and commercial applications.

Engineered for Corrosion Resistance

SKX Series pumps are constructed from 316 stainless steel for all major wetted components, including the motor housing, volute, and suction cover. This construction provides superior resistance to corrosion compared to traditional cast iron pumps and ensures long service life in aggressive environments.

Advanced Shredding System

The SKX Series features a wear-resistant shredding system designed to tear, break, and reduce solids prior to discharge. A tungsten carbide-tipped impeller works with hardened cutting components to process debris and minimize clogging.

This allows the pumps to handle solids ranging from approximately 1.6 inches to 3.5 inches, depending on model size.

Key Features & Benefits

• Corrosion-resistant 316 stainless steel construction

• Integrated shredding and cutting system

• Tungsten carbide-tipped impeller

• Handles solids from approximately 1.6" to 3.5"

• Dual mechanical seal system

• Built-in thermal and amperage overload protection

• Seal Minder® moisture detection system

• FKM elastomers for chemical compatibility

• ANSI flange or NPT discharge options

• Integral removable pump stand

• Heavy-duty lifting rings

• 33-foot power and sensor cables

• Class F and Class H insulation (model dependent)

• Two-pole and four-pole motor options

• Single-phase and three-phase configurations

• Free-standing or guide rail mounting

Designed for Corrosive Wastewater

The SKX Series is optimized for wastewater applications involving both corrosive fluids and challenging solids. It provides a corrosion-resistant alternative to standard shredder pumps while maintaining reliable solids-handling performance.

Performance Specifications

• Horsepower (HP): 1 HP, 20 HP

• Max Flow: Up to ~874 GPM

• Max Head: Up to ~105 ft

• Max Solids Handling: Up to ~3.5"

• Motor Speed: ~1750 / ~3450 RPM

• Max Liquid Temperature: ~104°F (40°C)

• Motor Insulation: Class F or Class H

Typical Services & Ideal Applications

• Corrosive wastewater systems

• Industrial and chemical processing facilities

• Food and beverage operations

• Marine and saltwater environments

• Municipal systems with aggressive liquids

• Applications with fibrous or clog-prone solids
