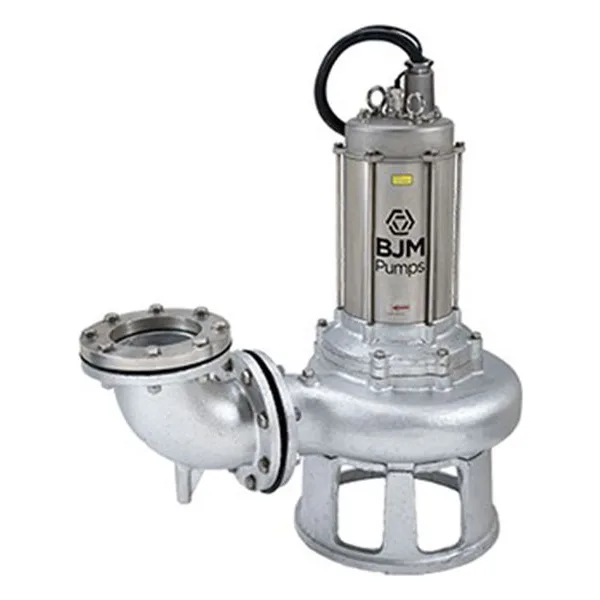

SXF Series High Temperature, Corrosion Resistant Solids Handling Non-Clog Pumps

High Temperature Stainless Steel Performance for Demanding Applications

The BJM Pumps SXF Series (Fahrenheit®) combines high temperature capability with corrosion-resistant stainless steel construction, delivering reliable performance in solids-handling applications where heat and aggressive fluids are present.

Designed to operate in liquids up to 200°F (93°C), the SXF Series is ideal for environments where standard stainless or wastewater pumps cannot withstand continuous thermal conditions.

Engineered for Heat and Corrosion Resistance

SXF Series pumps are constructed from cast 316 stainless steel with no welds, providing exceptional resistance to corrosion while eliminating structural weak points.

As part of the Fahrenheit® platform, the pumps incorporate high-temperature materials, oil-filled construction, and advanced motor protection to ensure durability in demanding environments.

Open Vane Non‑Clog Solids Handling

The SXF Series utilizes an open vane impeller design that allows solids to pass through efficiently while maintaining strong hydraulic performance.

This design enables handling of solids up to approximately 2.5 inches, making the pumps suitable for wastewater, industrial fluids, and chemically aggressive liquids.

Built for Extreme Operating Conditions

The SXF Series includes oil-lubricated dual mechanical seals, high-temperature cable systems, and Class R insulation, allowing continuous operation in elevated temperatures.

Embedded thermal sensors monitor winding temperature and automatically protect the motor from overheating, while Seal Minder® moisture detection provides early warning of seal failure.

Key Features & Benefits

• High temperature operation up to 200°F (93°C)

• Cast 316 stainless steel construction with no welds

• Corrosion-resistant design for aggressive environments

• Open vane non-clog impeller

• Handles solids up to approximately 2.5 inches

• Oil-filled motor with dual mechanical seals

• FKM elastomers standard (EPDM and Buna optional)

• Seal Minder® moisture detection system

• High temperature power cable

• Built-in thermal protection with embedded sensors

• Class R motor insulation

• 2-pole motor design (~3450 RPM)

• 1 HP, 10 HP range

Designed for High Temperature Corrosive Applications

The SXF Series is ideal for applications requiring both corrosion resistance and high temperature capability, without the need for shredding.

Performance Specifications

• Horsepower (HP): 1 HP, 10 HP

• Max Flow: Up to ~502 GPM

• Max Head: Up to ~105 ft

• Max Solids Handling: Up to ~2.5"

• Motor Speed: ~3450 RPM

• Max Liquid Temperature: ~200°F (93°C)

• Motor Insulation: Class R

Typical Services & Ideal Applications

• High temperature chemical processing

• Industrial wastewater with corrosive fluids

• Food and beverage processing

• Laundries and washdown systems

• Heated industrial sump applications

• Systems requiring stainless steel and high temperature durability
