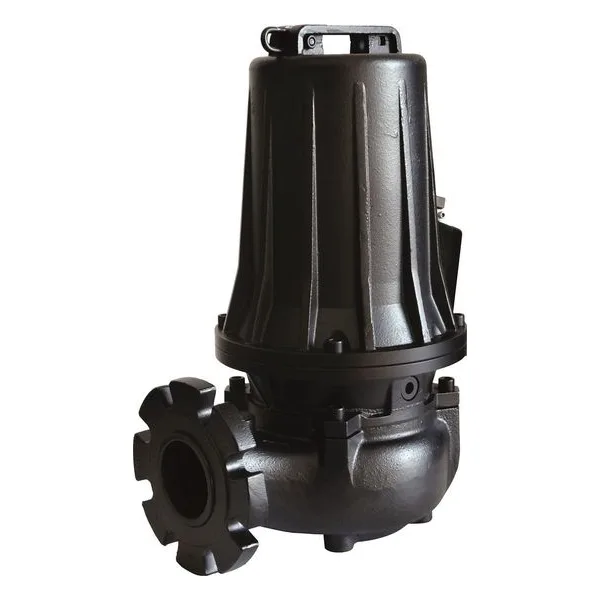

V Series High-Flow Submersible Pumps

High‑Flow Vortex Pumps for Wastewater and Solids Handling

The BJM Pumps V Series is engineered for high-flow, solids-handling applications, delivering reliable performance in demanding wastewater, industrial, and agricultural environments.

Using a vortex impeller design, the V Series moves fluid and solids without direct contact between most solids and the impeller, significantly reducing clogging, wear, and maintenance.

Vortex Impeller for Superior Solids Handling

The vortex impeller creates a strong hydraulic current that suspends and transports solids through the pump. Because solids typically do not pass through the impeller vanes, the design minimizes abrasion and blockage.

This makes the V Series especially effective for fibrous materials, suspended solids, and untreated sewage, where conventional impellers are prone to clogging.

Engineered for Durability and Reliability

The V Series features heavy-duty cast iron construction (GG25 / EN 1561) for long-lasting structural strength in harsh environments. Critical components are reinforced with stainless steel hardware for added durability.

Dual mechanical seals and a Seal Minder® system provide continuous monitoring and protection, helping extend pump life and reduce downtime.

Built for Continuous Operation

All models are equipped with thermal protection and continuous-duty motors, ensuring reliable performance under tough operating conditions. Available in both 2‑pole (high head) and 4‑pole (high flow) configurations, the V Series offers flexibility across a wide range of applications.

Key Features & Benefits

• Vortex impeller for non-clog solids handling

• High-flow performance across multiple configurations

• Handles fibrous materials and suspended solids

• Reduced clogging and abrasion (non-contact design)

• Heavy-duty cast iron construction (GG25)

• Dual mechanical seals for extended service life

• Seal Minder® moisture detection system (standard)

• Stainless steel cable glands and hardware

• Built-in thermal protection (dual switches)

• Available in 2‑pole and 4‑pole motor configurations

• Continuous duty operation

• Wide horsepower range (~1.5 HP, 12 HP)

Designed for Demanding Wastewater Applications

The V Series is ideal for applications requiring high flow and reliable solids handling without shredding, particularly where fibrous or abrasive materials are present.

Performance Specifications

• Horsepower (HP): ~1.5 HP, 12 HP

• Max Flow: Up to ~810 GPM

• Max Head: Up to ~100 ft

• Max Solids Handling: Up to ~3.5"+

• Motor Speed: ~1750 or ~3450 RPM

• Max Liquid Temperature: ~104°F (40°C)

Typical Services & Ideal Applications

• Municipal wastewater and sewage systems

• Wastewater treatment plants

• Industrial facilities

• Agricultural and farm operations

• Lift stations

• Applications with fibrous or suspended solids
