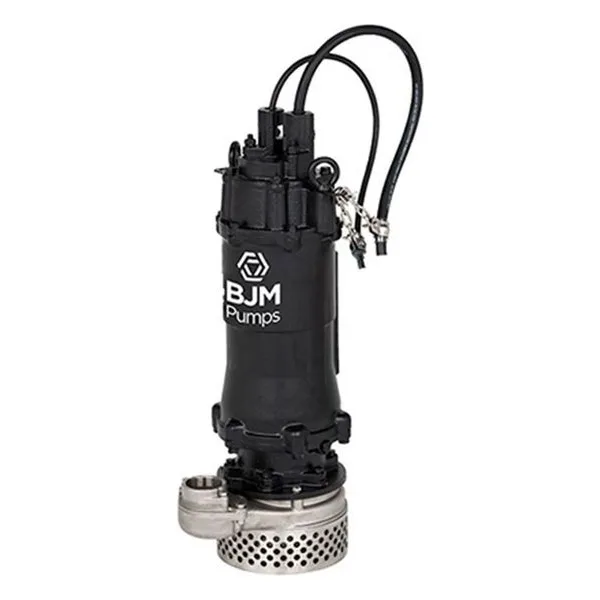

XP-JXH Series High Head, Explosion Proof Corrosion Resistant Dewatering Pumps

High Head Performance for Hazardous Environments

The BJM Pumps XP‑JXH Series is engineered for high head dewatering in hazardous and corrosive environments, combining explosion-proof safety with stainless steel durability.

Built for applications requiring additional discharge pressure, the XP‑JXH Series delivers reliable performance in systems where standard dewatering pumps cannot meet elevation or pressure demands.

Designed for Hazardous Locations

The XP‑JXH Series features an FM‑approved explosion-proof motor designed for Class I, Division 1, Groups C & D hazardous locations. This ensures safe operation in environments where flammable gases or vapors are present while maintaining compliance with NFPA, NEC, and OSHA standards.

Corrosion‑Resistant Stainless Steel Construction

The pump includes a cast 316 stainless steel wet end with no welds, providing enhanced corrosion resistance for aggressive fluids. This construction ensures long-term durability in chemical and industrial environments.

High Head Dewatering Design

The XP‑JXH Series is specifically designed for higher head applications, delivering increased pressure capability compared to standard XP‑JX models.

Performance across the series reaches up to approximately:

• ~190 GPM flow

• ~116 ft head

This makes the XP‑JXH Series ideal for applications requiring longer discharge runs or greater vertical lift.

Advanced Sealing and Protection

The XP‑JXH Series incorporates a double mechanical seal system with an additional lip seal, protecting against leakage and extending pump life.

Seal durability is enhanced with oil lubrication and robust materials, while Seal Minder® provides early detection of seal failure.

Key Features & Benefits

• FM‑approved explosion‑proof motor

• Rated for Class I, Division 1, Groups C & D hazardous locations

• High head capability up to ~116 ft

• Cast 316 stainless steel wet end (no welds)

• Corrosion-resistant construction

• Double mechanical seal with additional lip seal

• Oil-lubricated seal system

• Seal Minder® moisture detection system

• Built-in thermal protection

• Handles solids up to ~3/8"

• Side discharge configuration

• 2‑pole motor (~3450 RPM)

• Continuous duty operation

• Power range: ~2 HP, 5 HP

Performance Specifications

• Horsepower: ~2-5 HP

• Max Flow: Up to ~190 GPM

• Max Head: Up to ~116 ft

• Solids Handling: Up to ~3/8"

• Motor Speed: ~3450 RPM

• Max Liquid Temp: ~104°F (40°C)

Typical Applications

• Hazardous location dewatering

• High head industrial sump pumping

• Chemical and corrosive fluid handling

• Fuel and solvent environments

• Metal finishing and process plants

• Systems requiring increased discharge pressure
