CR

Burks CR Series exclusive, unique regenerative type turbine pumps are designed to handle clear water and many other nonabrasive, lower viscosity liquids on high pressure/low capacity applications with the greatest possible efficiency.

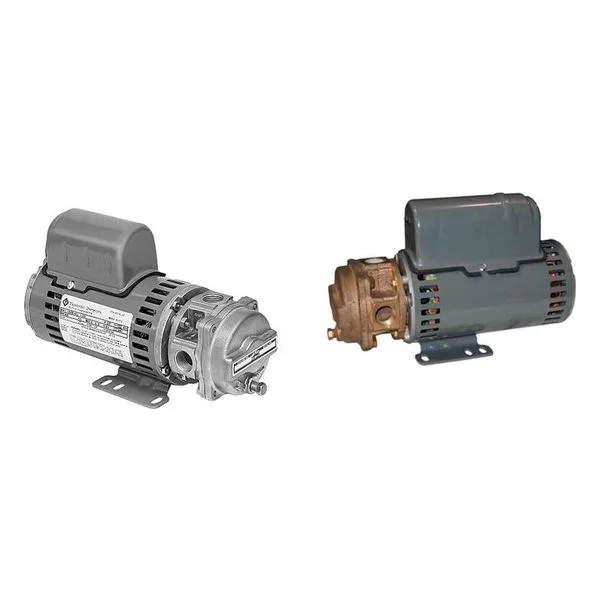

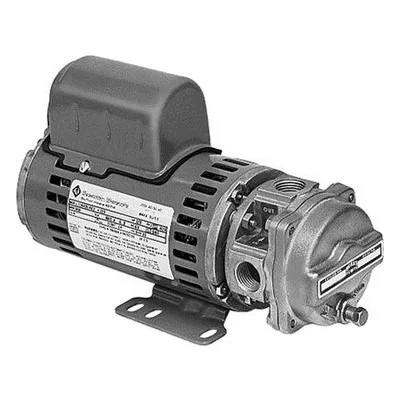

Burks CR Series Regenerative Turbine Pumps

Compact High-Pressure Performance for OEM and Industrial Applications

The Burks CR Series regenerative turbine pumps are designed for applications that require high pressure and lower flow rates in a compact, close-coupled package. Engineered for clean water and other non-abrasive, low-viscosity liquids, these pumps deliver dependable performance in booster systems, liquid transfer, circulation loops, steam generation equipment, and specialized industrial processes.

With their space-saving design and exceptional pressure-generating capabilities, CR Series pumps are particularly well suited for OEM equipment manufacturers and facilities where installation space is limited but reliable hydraulic performance is essential.

Key Features

• Compact close-coupled regenerative turbine pump design

• High-pressure performance in a small footprint

• Bronze impeller with durable Monel blades

• Carbon ceramic mechanical seal for dependable operation

• 316 stainless steel shaft for corrosion resistance

• Field-adjustable impeller for extended service life

• No coupling alignment required

• Continuous-duty motor construction

• Easy-to-service design

• Factory tested for performance and reliability

• Available in all-bronze construction

• Built for demanding commercial and industrial applications

Performance and Connection Sizes

The CR Series is designed for low-flow, high-head applications where pressure generation is more critical than overall flow capacity.

Performance Highlights

• Capacities up to 4 GPM

• Heads up to 225 feet

• Horsepower ratings of 1/3 HP

• 1/2" NPT suction connection

• 1/2" NPT discharge connection

• Available in 3450 RPM configurations

• Maximum liquid temperatures up to 225°F with standard seals

• Optional high-temperature seal configurations available

• Continuous-duty operation

The compact 1/2-inch suction and discharge connections make the CR Series an excellent choice for packaged systems, OEM equipment, and specialized circulation applications.

Regenerative Turbine Technology

Unlike conventional centrifugal pumps, the CR Series utilizes regenerative turbine technology to generate substantially higher pressures from a compact hydraulic assembly. As liquid circulates through the precision-engineered raceway and impeller design, pressure builds efficiently throughout the pumping cycle.

This design allows the pump to provide reliable high-head performance while maintaining compact dimensions and simplified installation requirements.

Designed for OEM Integration

The small footprint and close-coupled design make the CR Series especially attractive for equipment manufacturers and custom system builders.

Benefits for OEM Applications

• Minimal installation space required

• Simplified equipment packaging

• Reduced system complexity

• Reliable continuous-duty performance

• Easy integration into skid-mounted systems

• Long service life with reduced maintenance requirements

Maintenance-Friendly Design

The CR Series incorporates a field-adjustable impeller design that helps maintain hydraulic efficiency throughout the life of the pump. This feature allows operators to compensate for wear and restore performance without extensive service procedures.

Combined with the close-coupled construction and straightforward component layout, maintenance can be completed quickly and efficiently.

Typical Applications

• Boiler feed systems

• Small steam generators

• Pressure boosting systems

• Liquid transfer applications

• Low-flow circulation systems

• Injector and venturi systems

• Solar heating systems

• Spray nozzle applications

• Coolant circulation

• Aeration systems

• Carpet cleaning equipment

• OEM equipment packages

Why Choose the Burks CR Series?

The Burks CR Series delivers impressive pressure capabilities in a compact and economical package. With heads up to 225 feet, durable bronze construction, corrosion-resistant components, and a maintenance-friendly design, these regenerative turbine pumps are ideal for OEM equipment, booster systems, circulation applications, and specialized industrial processes. When high pressure, compact size, and dependable performance are required, the CR Series provides a proven solution.
