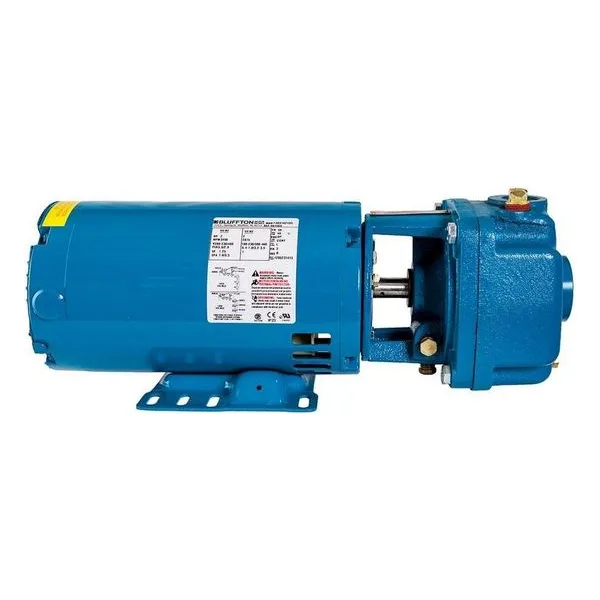

CS

Burks CS Series exclusive unique regenerative type turbine pumps are designed to handle clear water and many other nonabrasive, lower viscosity liquids on high pressure, low capacity applications with the greatest possible efficiency. BURKS is the only turbine pump with Life-Lok ® External Impeller Adjustment feature that allows readjustment of impeller without disturbing piping, disassembling pump or replacing parts. Gives up to 40% longer service life than turbine pumps of other designs.

• Self-Priming

• Compact, Space-saving size

• No coupling - eliminates misalignment problels

• Dependable carbon / ceramic mechanical shaft seal for temperatures to 225°F (107°C).

• Bronze impeller with Monel blades - the only moving part

• Bronze raceway with cast-in vortex pockets - will not vapor lock

• #303 Stainless Steel pump shaft

• Easy to service

• Every pump factory tested

• Available Bronze fitted, All Bronze, Stainless Steel

Burks CS Series Regenerative Turbine Pumps

High Pressure Performance for Low-Flow Applications

The Burks CS Series regenerative turbine pumps are engineered for applications requiring high pressure at relatively low flow rates. Designed to handle clean water and other non-abrasive, low-viscosity liquids, these pumps provide exceptional pressure generation in a compact, close-coupled package, making them ideal for boiler feed, condensate return, pressure boosting, heat transfer systems, and industrial process applications.

Unlike conventional centrifugal pumps, the CS Series utilizes regenerative turbine technology to produce significantly higher discharge pressures while maintaining smooth, reliable operation. This makes the series an excellent solution when high head performance is required without the need for larger multistage pump systems.

Key Features

• Regenerative turbine pump design for high-pressure applications

• Compact close-coupled construction

• Exclusive Life-Lok® external impeller adjustment system

• Self-priming capability

• Bronze impeller with Monel blades

• Bronze raceway with cast-in vortex pockets to resist vapor lock

• Carbon/ceramic mechanical shaft seal

• 303 stainless steel shaft for corrosion resistance

• No coupling alignment required

• Easy-to-service construction

• Factory tested for performance and reliability

• Available in bronze-fitted, all-bronze, and stainless steel configurations

Performance and Connection Sizes

The CS Series is built specifically for applications where high pressure is more important than high flow volume.

Performance Highlights

• Flow rates up to 95 GPM

• Heads up to 350 feet

• Horsepower ranges from 1/2 HP to 5 HP

• 1-1/4" NPT suction connection

• 1" NPT discharge connection

• Maximum liquid temperatures up to 225°F with standard seals

• Casing working pressures up to 250 PSI

• Available in 1750 RPM and 3450 RPM configurations

• Single-phase and three-phase motor options available

• Continuous-duty operation

The combination of a 1-1/4-inch suction port and 1-inch discharge connection allows the CS Series to provide outstanding pressure performance while maintaining compact dimensions.

Life-Lok® External Impeller Adjustment

One of the most valuable features of the Burks CS Series is its exclusive Life-Lok® External Impeller Adjustment system.

Benefits Include:

• Restores pump efficiency without disassembly

• No need to disconnect piping

• Reduces maintenance costs

• Extends pump service life

• Minimizes downtime

• Helps maintain peak hydraulic performance

This design can significantly increase pump longevity compared to traditional regenerative turbine pump designs.

Self-Priming Operation

The CS Series provides self-priming capabilities, allowing it to perform reliably in applications where maintaining prime is critical.

Advantages of Self-Priming Performance

• Simplified installation

• Faster startup

• Reduced operator intervention

• Reliable operation in suction-lift applications

• Improved system flexibility

High-Temperature Configurations Available

For hot water, thermal fluid, and heat transfer applications, the CS Series is available with an optional Jacketed Seal Cavity design. This configuration helps extend seal life and supports operating temperatures up to 500°F, making it well suited for demanding thermal systems.

Typical Applications

• Boiler feed systems

• Condensate return systems

• Pressure boosting applications

• Heat transfer fluid circulation

• Hot water systems

• Industrial process equipment

• Reverse osmosis systems

• Spray systems

• Cooling systems

• Water treatment applications

• General high-pressure liquid transfer

Why Choose the Burks CS Series?

The Burks CS Series combines regenerative turbine technology, compact design, and industry-leading serviceability to provide exceptional high-pressure performance in a small footprint. With flow rates up to 95 GPM, heads up to 350 feet, and Burks' exclusive Life-Lok® adjustment system, the CS Series delivers reliable, efficient operation for demanding boiler feed, pressure boosting, condensate return, and industrial process applications. When high pressure and long-term reliability are critical, the Burks CS Series is a proven solution.
