3DF4-1-1/4-AB-2.88

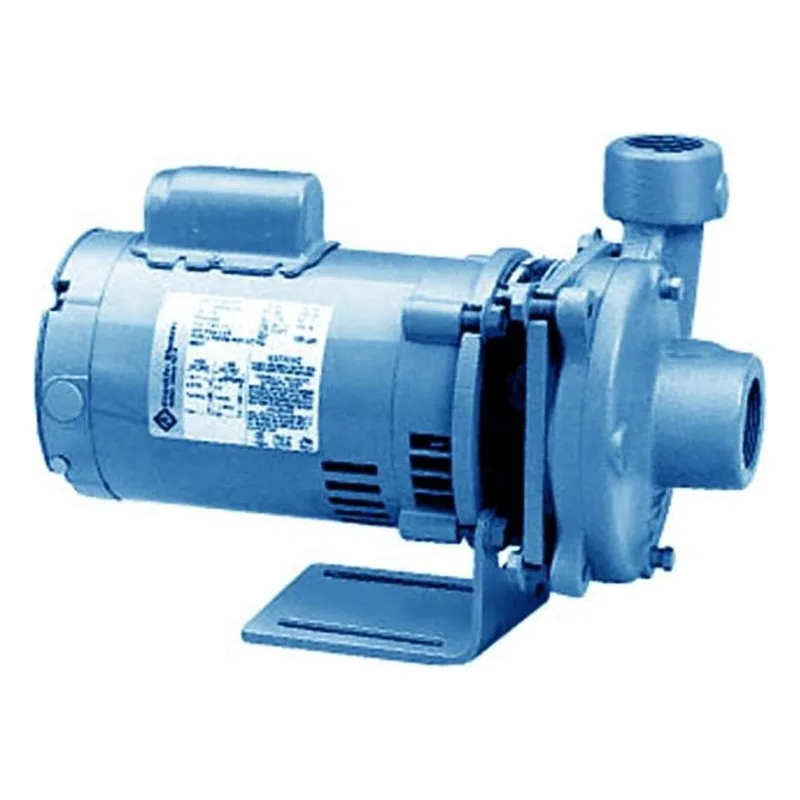

Burks DF4-1 1/4 Series - Centrifugal Pump, Close Coupled, End Suction

Adapter - All Iron: Cast Iron, Bronze Fitted: Cast Iron, All Bronze: Bronze.
Casing - All Iron: Cast Iron, Bronze Fitted: Cast Iron, All Bronze: Bronze.
Impeller - All Iron: Cast Iron, Bronze Fitted: Bronze, All Bronze: Bronze.
Shaft: #303 Stainless Steel.
Shaft Seal: Carbon Ceramic SS Buna-N

Standard pump motors have open drip proof construction and are rated with jet pump service factors for continuous duty operation. Motors are 56 frame size with NEMA standard mounting fl ange, one piece threaded stainless steel shaft and ball/ball bearing construction.

Centerline discharge can be located in any of four positions. Back pull-out design eliminates the need to disturb piping should the pump ever require service - the casing stays in the line.

Of the latest hydraulic design for maximum efficiency, impeller is balanced for vibration-free operation and threaded onto stainless steel motor shaft.

Standard self-adjusting shaft seal for temperatures to 225°F (107°C) and pressures to 150 psi (1034kpa). Ceramic seat and carbon seal face for long troublefree service. Special seals are available for higher temperatures and fl uids other than water.

After careful assembly and inspection, EVERY pump is factory tested and meets Hydraulic Institute standards.

60 Hz - 3500 RPM - ODP
Single Phase: 115/230 Volt
Three Phase: 208-230/460 Volt
50 Hz - 2900 RPM - ODP
Single Phase: 110/220 Volt
Three Phase: 380 Volt

All single phase ODP and Totally Enclosed motors have built-in overload protection. All three phase motors and all explosion proof motors must be installed with a magnetic starter which provides full 3-leg protection. Failure to use correct starter and overloads will void motor warranty.
