Burks EC and ED Series Turbine Pumps are designed for pumping any clean, non-corrosive, nonabrasive lower viscosity liquid on low flow, high head applications. They are used in a wide range of industries.

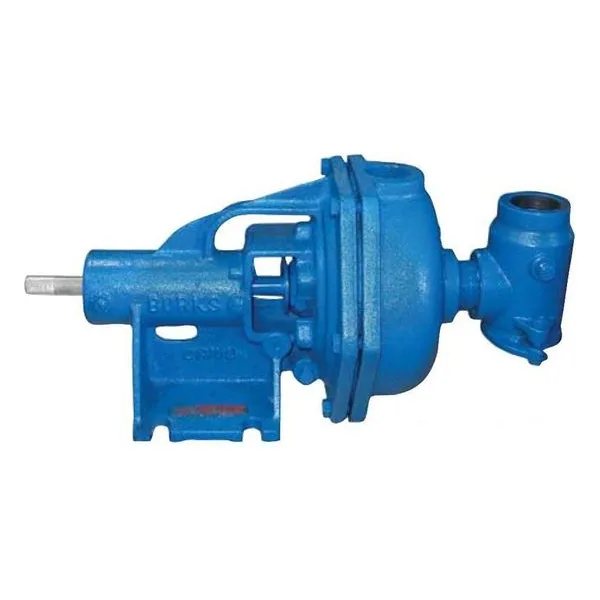

Burks EC & DC Series Regenerative Turbine Pumps

High-Pressure Performance for Demanding Commercial and Industrial Applications

The Burks EC and DC Series regenerative turbine pumps are engineered for applications requiring high discharge pressures at relatively low flow rates. Utilizing advanced regenerative turbine technology, these pumps provide pressure capabilities that exceed those of similarly sized centrifugal pumps, making them ideal for boiler feed systems, condensate return, pressure boosting, heat transfer circulation, water treatment, and industrial process applications.

Designed for continuous-duty operation, the EC and DC Series combine compact installation, dependable performance, and long service life. Whether serving a small boiler feed system or a demanding industrial process, these pumps deliver reliable pressure generation where conventional pump designs may fall short.

Key Features

• Regenerative turbine design for high-head pumping applications

• Available in close-coupled and base-mounted configurations

• High-pressure performance with efficient low-flow operation

• Durable bronze impeller construction

• Mechanical shaft seal for reliable leak protection

• Stainless steel shaft for corrosion resistance and durability

• Compact footprint simplifies installation

• Factory tested for hydraulic performance and reliability

• Available in bronze-fitted, all-bronze, and stainless steel constructions

• Continuous-duty commercial and industrial service design

• Easy-maintenance construction for reduced downtime

Performance and Connection Sizes

The EC and DC Series are specifically designed for systems where pressure performance is more important than high flow volume.

Performance Highlights

• Capacities up to 75 GPM

• Heads up to 400 feet

• Horsepower ranges from 1/3 HP to 10 HP

• Suction connections from 1-1/4" to 2"

• Discharge connections from 1" to 1-1/2"

• Maximum liquid temperatures up to 225°F with standard seals

• Maximum inlet pressures up to 100 PSI

• Maximum casing working pressures up to 250 PSI

• Available in 1750 RPM and 3450 RPM configurations

• Single-phase and three-phase motor options available

The compact connection sizes and high-pressure capabilities make these pumps especially well suited for boiler rooms, process systems, skid-mounted equipment, and engineered pumping packages.

Regenerative Turbine Technology

Unlike traditional centrifugal pumps, regenerative turbine pumps continuously recirculate fluid through precision-machined internal passages, allowing pressure to build progressively as the liquid moves through the pump. This design provides exceptional pressure generation while maintaining smooth, efficient operation.

The result is a pump capable of delivering substantial discharge pressure without requiring larger multistage equipment, helping reduce installation complexity and system costs.

Built for Reliability and Easy Service

The EC and DC Series are constructed using durable materials and precision-machined components designed for long service life. Their simplified maintenance design helps reduce downtime and allows for efficient inspection, seal replacement, and routine service.

With fewer moving components and rugged construction throughout the hydraulic assembly, these pumps provide dependable operation in demanding environments where system uptime is critical.

Material Construction Options

Available construction materials include:

• Bronze-Fitted Cast Iron

• All Bronze

• Stainless Steel

These material options allow the pump to be matched to specific fluid conditions, operating temperatures, and corrosion-resistance requirements.

Optional High-Temperature Configurations

For hot water, thermal fluid, and heat transfer applications, select models can be configured for elevated temperature operation. These specialized configurations help protect seals and extend equipment life in demanding thermal systems.

Typical Applications

• Boiler feed systems

• Condensate return systems

• Pressure boosting applications

• Heat transfer fluid circulation

• Hot water systems

• Industrial process equipment

• Water treatment systems

• Reverse osmosis systems

• Spray systems

• Chemical transfer operations

• OEM equipment packages

• General high-pressure liquid transfer

Why Choose the Burks EC & DC Series?

The Burks EC and DC Series combine compact design, exceptional pressure capability, and proven regenerative turbine technology to provide reliable performance in demanding high-head applications. With flow rates up to 75 GPM, heads up to 400 feet, and horsepower options up to 10 HP, these pumps offer an efficient and dependable solution for boiler feed, condensate return, pressure boosting, and industrial process systems. Built for long-term reliability and easy maintenance, the EC and DC Series deliver the performance and value expected from Burks pumping equipment.
