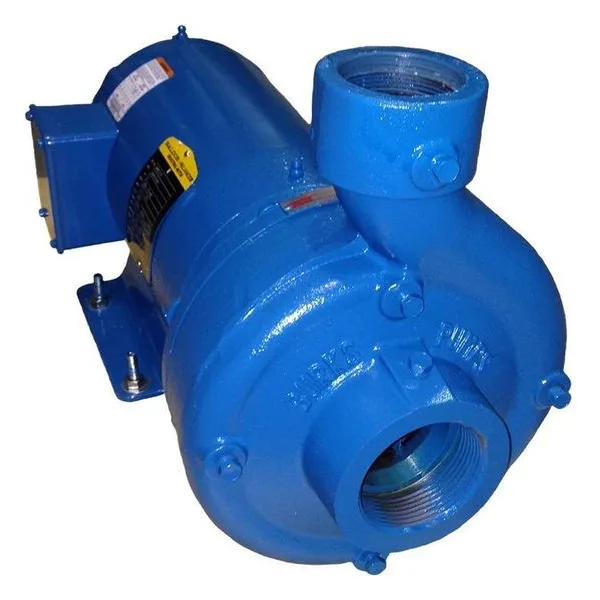

G6-2

Burks Series G6-2 close coupled centrifugal pumps are available in 1750 RPM with capacities to 1100 GPM, heads to 95 feet, and in 3500 RPM with capacities to 950 GPM, heads to 380 feet. These rugged pumps allow maximum pumping temperatures to 225°F; pump models with the optional MJ Jacketed Seal® allow temperatures to 500°F. Burks Series G pumps accept inlet pressure to 100 PSI, case working pressure to 200 PSI, and suction from 1 ½" to 5", with discharge from 1 ¼" to 4".

All Series G Models feature standard construction bronze fitted cast iron, and are also available in all bronze or all iron. Flanged casing is available on 2" and 2 ½" pumps; 3" and 4" pumps are flanged only. And every Burks pump is factory tested to meet stringent Hydraulic Institute standards.

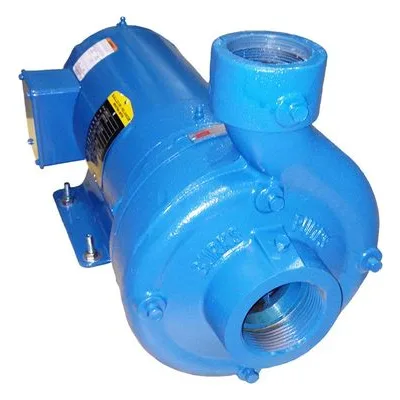

Burks G6-2 Series Close-Coupled Centrifugal Pumps

Flexible Connection Options. Proven Burks Reliability.

The Burks G6-2 Series close-coupled centrifugal pumps are designed for commercial, industrial, and OEM applications requiring dependable performance, installation flexibility, and long service life. With higher flow capabilities, rugged construction, and multiple connection configurations, the G6-2 Series provides an ideal solution for water circulation, booster service, fluid transfer, cooling systems, and process applications.

Its compact close-coupled design reduces footprint requirements while delivering the hydraulic performance needed for demanding pumping systems. Available with either threaded or flanged connections, the G6-2 Series can be configured to meet the specific needs of virtually any installation.

Key Features

• Close-coupled end suction centrifugal pump design

• Available with NPT threaded or flanged connections

• Enclosed bronze impeller for efficient hydraulic performance

• Four-position casing for flexible discharge orientation

• Back pull-out construction simplifies maintenance

• Replaceable casing wear ring helps extend pump life

• Mechanical shaft seal for dependable leak protection

• Stainless steel shaft for durability and corrosion resistance

• Factory-tested performance and reliability

• Available in bronze-fitted, all-bronze, and all-iron construction

Performance and Connection Sizes

The G6-2 Series is engineered for higher-capacity fluid handling applications and features:

• 2-1/2" suction connection

• 2" discharge connection

• Capacities up to 280 GPM

• Heads up to 140 feet

• Maximum liquid temperatures up to 225°F with standard seals

• Inlet pressures up to 100 PSI

• Casing working pressures up to 200 PSI

• Single-phase and three-phase motor options available

• 3500 RPM performance for demanding commercial and industrial service

NPT Threaded Connections

For compact systems and straightforward installations, the G6-2 Series is available with NPT threaded connections. Threaded models are often used in commercial buildings, packaged equipment, OEM applications, and light industrial systems where ease of installation and maintenance are priorities.

Advantages of NPT Connections:

• Economical installation

• Simplified piping connections

• Compact system design

• Ideal for skid-mounted and packaged equipment

• Easy servicing and replacement

• Well suited for commercial and light industrial applications

Flanged Connections

Flanged models are designed for larger piping systems and applications requiring enhanced support, easier alignment, and simplified pump removal. The bolted flange configuration provides a secure connection and is commonly specified for HVAC, cooling tower, manufacturing, and process water systems.

Advantages of Flanged Connections:

• Increased system reliability for larger pipe sizes

• Easier pump removal during maintenance

• Improved piping alignment

• Better suited for high-flow applications

• Reduced stress on pump connections

• Preferred for industrial and institutional installations

Maintenance-Friendly Design

The G6-2 Series incorporates Burks' proven back pull-out design, allowing the rotating assembly to be removed without disconnecting system piping. This feature helps minimize downtime, reduce labor costs, and simplify routine maintenance procedures.

A replaceable casing wear ring further protects critical pump components while helping maintain long-term hydraulic efficiency.

Optional High-Temperature Service

For applications involving hot water, thermal oils, and heat transfer fluids, the G6-2 Series can be furnished with an optional Jacketed Seal Cavity design. This specialized configuration helps extend seal life and improve reliability in elevated-temperature systems.

Typical Applications

• HVAC heating and cooling systems

• Chilled water circulation

• Cooling tower operation

• Industrial process water systems

• Water transfer and distribution

• Pressure booster systems

• Manufacturing facilities

• Commercial building services

• Municipal water applications

• OEM equipment packages

Why Choose the Burks G6-2 Series?

The Burks G6-2 Series combines robust hydraulic performance, installation flexibility, and proven durability in a compact close-coupled design. Whether your application requires NPT threaded connections for simplified installation or flanged connections for larger industrial systems, the G6-2 Series delivers reliable operation, easy maintenance, and long-term value for demanding fluid handling applications.
