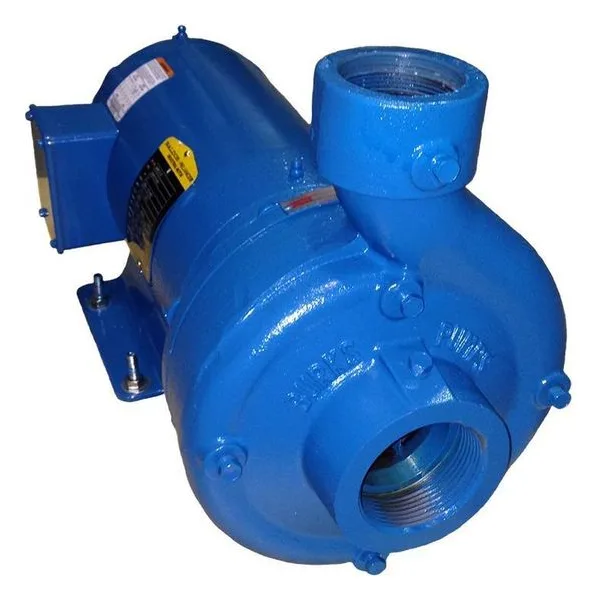

G7-2

Burks Series G7-2 close coupled centrifugal pumps are available in 1750 RPM with capacities to 1100 GPM, heads to 95 feet, and in 3500 RPM with capacities to 950 GPM, heads to 380 feet. These rugged pumps allow maximum pumping temperatures to 225°F; pump models with the optional MJ Jacketed Seal® allow temperatures to 500°F. Burks Series G pumps accept inlet pressure to 100 PSI, case working pressure to 200 PSI, and suction from 1 ½" to 5", with discharge from 1 ¼" to 4".

All Series G Models feature standard construction bronze fitted cast iron, and are also available in all bronze or all iron. Flanged casing is available on 2" and 2 ½" pumps; 3" and 4" pumps are flanged only. And every Burks pump is factory tested to meet stringent Hydraulic Institute standards.

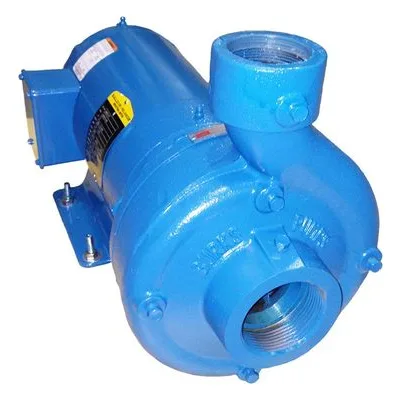

Burks G7-2 Series Close-Coupled Centrifugal Pumps

High-Capacity Pumping for Commercial and Industrial Systems

The Burks G7-2 Series close-coupled centrifugal pumps are designed to deliver dependable fluid handling performance in demanding commercial, industrial, municipal, and OEM applications. Combining Burks' proven hydraulic design with rugged construction and installation flexibility, the G7-2 Series provides an efficient solution for water circulation, transfer, booster, and process pumping duties.

Built for continuous-duty operation, these pumps offer higher flow capacities than smaller Series G models while maintaining the space-saving advantages of a close-coupled design. Their versatility makes them well-suited for everything from HVAC systems and cooling towers to manufacturing processes and water distribution networks.

Key Features

• Close-coupled end suction centrifugal pump design

• Available with NPT threaded and flanged connection configurations

• Enclosed bronze impeller for efficient hydraulic performance

• Four-position casing for flexible installation

• Back pull-out construction simplifies maintenance procedures

• Replaceable casing wear ring extends service life

• Mechanical shaft seal for reliable operation

• Stainless steel shaft for corrosion resistance and durability

• Factory tested to verify hydraulic performance and reliability

• Available in bronze-fitted, all-bronze, and all-iron construction options

Performance and Connection Sizes

The G7-2 Series is engineered for medium-to-high flow applications requiring dependable pressure and continuous-duty operation.

Performance Highlights

• Capacities up to 400 GPM

• Heads up to 145 feet

• Horsepower ranges from 2 HP to 10 HP

• 3" suction connection

• 2" discharge connection

• Maximum liquid temperatures up to 225°F with standard seals

• Inlet pressures up to 100 PSI

• Casing working pressures up to 200 PSI

• Available with single-phase and three-phase motor configurations

• Continuous-duty operation

The oversized 3-inch suction inlet helps promote smooth flow into the pump, while the 2-inch discharge connection delivers the pressure and performance needed for larger commercial and industrial systems.

NPT Threaded Connections

NPT-threaded models provide a cost-effective and compact solution for applications where threaded piping systems are preferred. These pumps are commonly used in OEM equipment, booster packages, water transfer systems, and commercial mechanical rooms.

Benefits of NPT Connections

• Lower installation costs

• Simplified piping modifications

• Compact system footprint

• Easier pump replacement

• Ideal for commercial and packaged equipment applications

• Reduced installation complexity

Flanged Connections

Flanged models are designed for higher-flow applications and larger piping systems where easier alignment and serviceability are important. The bolted flange design provides a secure connection while making maintenance procedures faster and more efficient.

Benefits of Flanged Connections

• Improved piping support and alignment

• Easier pump removal and replacement

• Enhanced reliability in large systems

• Ideal for HVAC, industrial, and municipal applications

• Preferred for high-flow piping networks

• Simplifies long-term maintenance

Maintenance-Friendly Design

The G7-2 Series incorporates Burks' proven back pull-out design, allowing the rotating assembly to be removed without disconnecting system piping. This feature helps reduce downtime, lower maintenance costs, and simplify routine service.

A replaceable casing wear ring further protects the pump casing from wear, helping preserve efficiency and extend equipment life.

Optional High-Temperature Service

For hot water circulation, heat transfer fluids, and thermal oil applications, the G7-2 Series is available with an optional Jacketed Seal Cavity design. This feature helps protect the mechanical seal from excessive heat and extends seal life in elevated-temperature systems.

Typical Applications

• HVAC heating and cooling systems

• Chilled water circulation

• Cooling tower systems

• Industrial process water

• Water transfer and distribution

• Pressure boosting systems

• Manufacturing facilities

• Municipal water systems

• Irrigation systems

• Commercial building services

Why Choose the Burks G7-2 Series?

The Burks G7-2 Series combines flow rates up to 400 GPM, horsepower options from 2 to 10 HP, and rugged industrial construction in a compact, easy-to-maintain package. Available with either NPT threaded or flanged connections, these pumps provide the flexibility, reliability, and performance required for demanding commercial and industrial fluid-handling applications.
