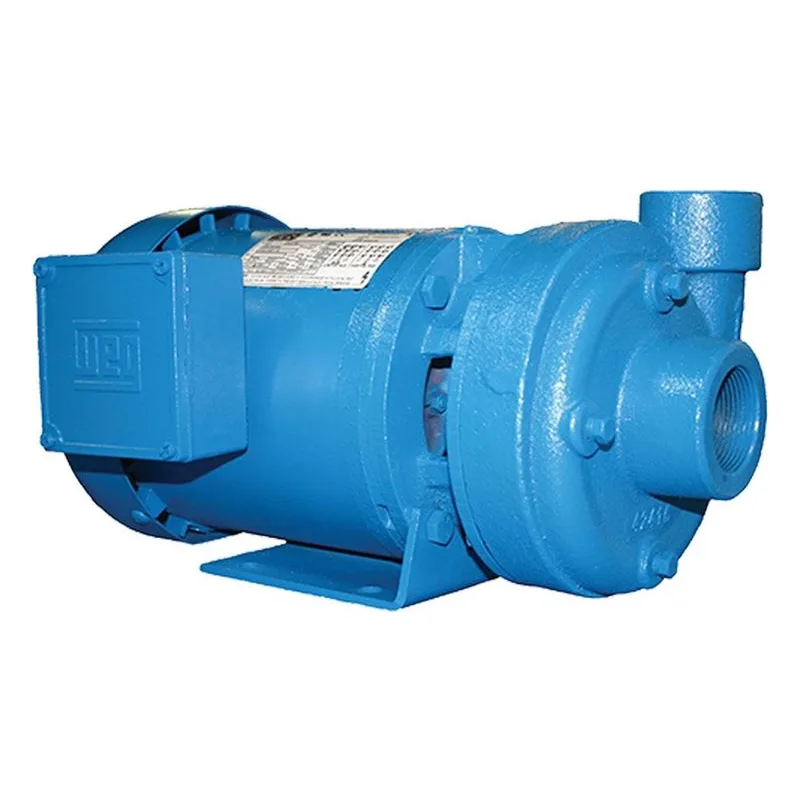

Image shown may not be actual product

T3GA4-3/4

Name: T3GA4-3/4 PumpCatalog Burks
Brand: Burks
SKU: T3GA4-3/4
Price: 1419.75 USD
Availability: InStock

Burks T3GA4-3/4 GA4 Series Close Coupled Centrifugal Pump. Bronze Fitted Construction, Carbon/Ceramic/Buna-N Mechanical Seal, 1" NPT Suction, 3/4" NPT Discharge. 1/3 HP, 115/230 Volt, 60 Hz, 3500 RPM, 1 Ph (Single Phase), TEFC - Totally Enclosed Fan Cooled Motor. A Crane Pumps & Systems Brand.

Brand: Burks

Series:

GA4

Item: T3GA4-3/4

List: ~~$1,893.00~~

$1,419.75

Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.

Returns accepted within 30 days. View Returns Policy

Estimate Shipping

Zip Code

Overview

Literature & Manuals

Find the manuals, product sheets and all the information you need

Type	Title	Link
Data Sheets	Burks Series G4 Centrifugal Pump Datasheet	View
Installation & Operation Manuals	Burks Series G4 Centrifugal Pump Manual	View

Series Information

GA4 Information

General Description
Burks GA4 Series - Centrifugal Pump, Close Coupled, End Suction
Materials of Construction
Adapter - All Iron: Cast Iron, Bronze Fitted: Cast Iron, All Bronze: Bronze. Casing - All Iron: Cast Iron, Bronze Fitted: Cast Iron, All Bronze: Bronze. Impeller - All Iron: Cast Iron, Bronze Fitted: Bronze, All Bronze: Bronze. Shaft: #303 Stainless Steel. Shaft Seal: Carbon Ceramic SS Buna-N
Motors
Standard pump motors are of open drip proof (ODP) construction and are rated with jet pump service factors for continuous duty operation. Motors are 56 frame size with NEMA standard mounting fl ange, one piece threaded stainless steel shaft and ball/ball bearing construction.
Four Position Casing
Discharge can be located in any of four positions. Casing is close grain iron of 30,000 psi minimum tensile strength. Back pull-out design eliminates the need to disturb piping should the pump ever require service - the casing stays in the line.
Enclosed Cast Iron Impeller
Of the latest hydraulic design for maximum efficiency, impeller is balanced for vibration-free operation and threaded onto stainless steel motor shaft. Impeller is available in bronze.
Mechanical Shaft Seal Information
Standard self-adjusting shaft seal for temperatures to 225°F (107°C) and pressures to 150 psi (1034 kpa). Ceramic seat and carbon seal face for long trouble-free service. Special seals are available for higher temperatures and fl uids other than water.
Factory Tested
After careful assembly and inspection, EVERY pump is factory tested and meets Hydraulic Institute standards.
Motor Information
60 Hz - 3450 RPM - ODP Single Phase: 1/3 thru 2 HP - 115/230 Volt, 3 HP - 230 Volt Only Three Phase: 1/3 thru 3 HP - 208-230/460 Volt 50 Hz - 2900 RPM - ODP Single Phase: 110/220 Volt Three Phase: 380 Volt
Overload Protection
All single phase ODP and Totally Enclosed motors have built-in overload protection. All three phase motors and all explosion proof motors must be installed with a magnetic starter which provides full 3-leg protection. Failure to use correct starter and overloads will void motor warranty.

Related Products and Parts

Popular Series

Series associated to this product and brand

T3GA4-3/4

Brand: Burks

Series:

GA4

Item: T3GA4-3/4

Type

Title

Link

Burks Series G4 Centrifugal Pump Datasheet

View

Burks Series G4 Centrifugal Pump Manual

View

General Description

Burks GA4 Series - Centrifugal Pump, Close Coupled, End Suction

Materials of Construction

Adapter - All Iron: Cast Iron, Bronze Fitted: Cast Iron, All Bronze: Bronze.
Casing - All Iron: Cast Iron, Bronze Fitted: Cast Iron, All Bronze: Bronze.
Impeller - All Iron: Cast Iron, Bronze Fitted: Bronze, All Bronze: Bronze.
Shaft: #303 Stainless Steel.
Shaft Seal: Carbon Ceramic SS Buna-N

Motors

Standard pump motors are of open drip proof (ODP) construction and are rated with jet pump service factors for continuous duty operation. Motors are 56 frame size with NEMA standard mounting fl ange, one piece threaded stainless steel shaft and ball/ball bearing construction.

Four Position Casing

Discharge can be located in any of four positions. Casing is close grain iron of 30,000 psi minimum tensile strength. Back pull-out design eliminates the need to disturb piping should the pump ever require service - the casing stays in the line.

Enclosed Cast Iron Impeller

Of the latest hydraulic design for maximum efficiency, impeller is balanced for vibration-free operation and threaded onto stainless steel motor shaft. Impeller is available in bronze.

Mechanical Shaft Seal Information

Standard self-adjusting shaft seal for temperatures to 225°F (107°C) and pressures to 150 psi (1034 kpa). Ceramic seat and carbon seal face for long trouble-free service. Special seals are available for higher temperatures and fl uids other than water.

Factory Tested

After careful assembly and inspection, EVERY pump is factory tested and meets Hydraulic Institute standards.

Motor Information

60 Hz - 3450 RPM - ODP
Single Phase: 1/3 thru 2 HP - 115/230 Volt, 3 HP - 230 Volt Only
Three Phase: 1/3 thru 3 HP - 208-230/460 Volt
50 Hz - 2900 RPM - ODP
Single Phase: 110/220 Volt
Three Phase: 380 Volt

Overload Protection

All single phase ODP and Totally Enclosed motors have built-in overload protection. All three phase motors and all explosion proof motors must be installed with a magnetic starter which provides full 3-leg protection. Failure to use correct starter and overloads will void motor warranty.
