3154GA6-2-5.75

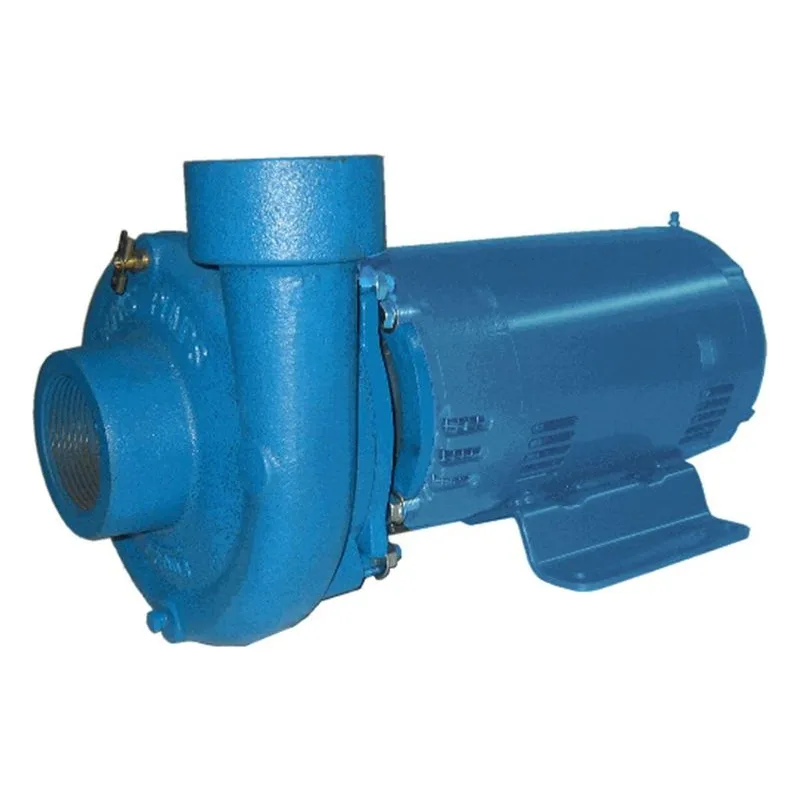

Burks GA6-2 Series - Centrifugal Pump, Close Coupled

Adapter - All Iron: Cast Iron, Bronze Fitted: Cast Iron, All Bronze: Bronze.
Casing - All Iron: Cast Iron, Bronze Fitted: Cast Iron, All Bronze: Bronze.
Impeller - All Iron: Bronze, Bronze Fitted: Bronze, All Bronze: Bronze.
Shaft: Steel.
Shaft Sleeve: All Iron: #316 Stainless, Bronze Fitted: Bronze, All Bronze: Bronze.
Shaft Seal: Carbon Ceramic SS Buna-N

Gasketed and keyed hook-type sleeve protects shaft from wear and corrosion in seal area.

JM Type motors have NEMA standard mounting flange, extended steel shaft and dual bearings. These motors offer the advantages of quiet operation, controlled shaft deflection for longer seal life, and bearings sized to provide good service life. All motors are supplied by manufacturers with national field service facilities.

GA6 Series pumps are not available with 7-1/2 HP Totally Enclosed or Explosion Proof motors.

Discharge can be located in any of four positions. Casing is close grain iron of 30,000 psi minimum tensile strength. Back pull-out design eliminates the need to disturb piping should the pump ever require service - the casing stays in the line.

Standard self-adjusting shaft seal for temperatures to 225°F (107°C) and pressures to 150 psi (1034kpa). Ceramic seat and carbon seal face for long trouble-free service. Special seals are available for higher temperatures and fl uids other than water.

After careful assembly and inspection, VERY pump is factory tested and will meet Hydraulic Institute standards.

60 Hz - 1750 RPM - ODP
60 Hz - 3500 RPM - ODP
Single Phase:
1 thru 2 HP - 115/230 Volt
3 & 7 1/2 HP - 230 Volt
Three Phase:
1 thru 10 HP - 230/460 V
50 Hz - 2900 RPM - ODP
50 Hz - 1450 RPM - ODP
Single Phase: 110/220 Volt
Three Phase: 380 Volt

All motors must be installed with magnetic starter which provides full overload protection on all legs. Failure to use correct starter and overloads will void motor warranty.

Of the latest hydraulic design for maximum efficiency, impeller is balanced for vibration-free operation. It is precision fit to shaft with key drive and cap screw lock.
