Image shown may not be actual product

20WA6-BF

Name: 20WA6-BF PumpCatalog Burks
Brand: Burks
SKU: 20WA6-BF
Price: 2949.75 USD
Availability: InStock

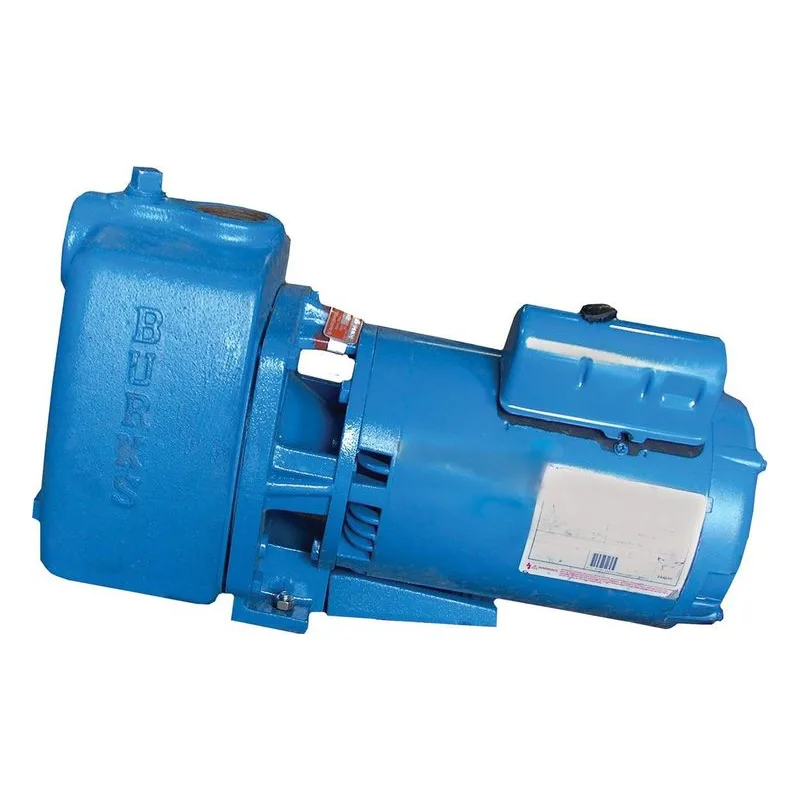

Burks 20WA6-BF WA6 Series Self-Priming Centrifugal Pump. Bronze Fitted Construction, Carbon/Ceramic/EPDM Mechanical Seal, 1-1/2" NPT Suction, 1-1/2" NPT Discharge. 2 HP, 115/230 Volt, 60 Hz, 3500 RPM, 1 Ph (Single Phase), ODP - Open Drip Proof Motor. A Crane Pumps & Systems Brand.

Brand: Burks

Series:

WA6

Item: 20WA6-BF

List: ~~$3,933.00~~

$2,949.75

Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.

Returns accepted within 30 days. View Returns Policy

Estimate Shipping

Zip Code

Overview

Literature & Manuals

Find the manuals, product sheets and all the information you need

Type	Title	Link
Data Sheets	Burks Series WA6 Self Priming CentrifugalmPump Datasheet	View
Installation & Operation Manuals	Burks Series WA6 Self Priming Centrifugal Pump Manual	View
Parts Breakdowns	Burks Series: WA6 Repair Parts Exploded View Breakdown (2018)	View

Series Information

WA6 Information

General Description
Burks WA6 Series - Centrifugal Pumps, Self Priming
Materials of Construction
Adapter - Standard Noryl: Cast Iron, All Iron: Cast Iron, All Bronze: Bronze Case - Standard Noryl: Cast Iron, All Iron: Cast Iron, All Bronze: Bronze Diffuser - Standard Noryl: Cast Iron, All Iron: Cast Iron, All Bronze: Bronze Impeller - Standard Noryl: Noryl, All Iron: Cast Iron, All Bronze: Bronze Shaft: 303 Stainless Steel Shaft Seal: Carbon Ceramic SS Buna-N
NORYL® Impeller
Glass filled Noryl® enclosed impeller with molded-in brass insert.
Factory Tested
Every pump is factory tested and will meet Hydraulic Institute standards
Motor Information
60 Hz - 3500 RPM - ODP Single Phase: 1 thru 2 HP - 115/230 Volts; 3 HP - 230 Volt Three Phase: 1 thru 3 HP - 208-230/460 Volt
Overload Protection
All single phase ODP and TEFC motors must have built-in overload protection. All three phase motors and all explosion proof motors must be installed with a magnetic starter which provides full 3-leg protection. Failure to use correct starter and overloads will void motor warranty.
