375WG6-2-MV

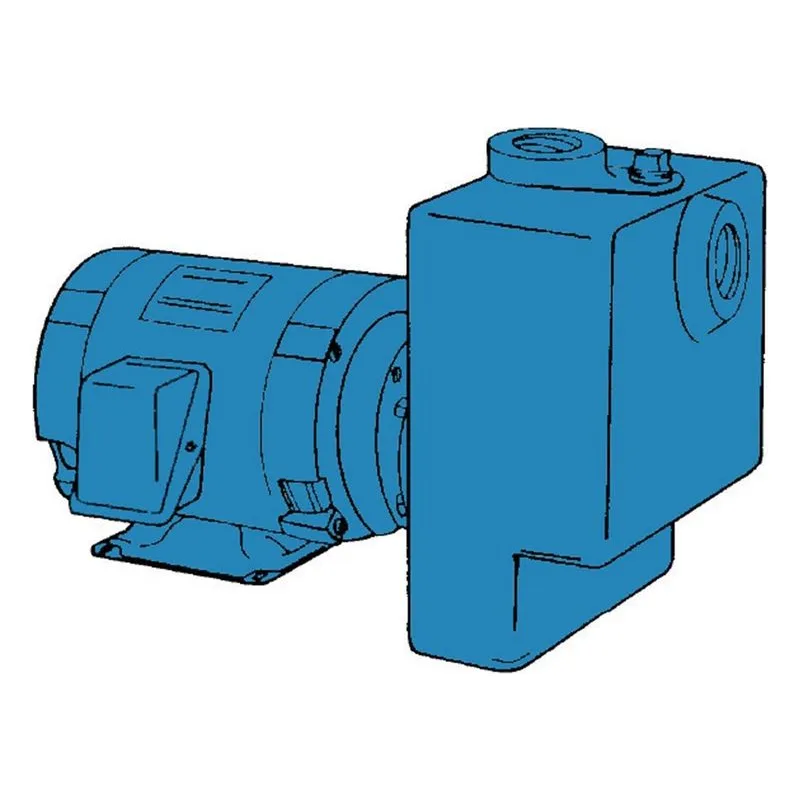

Burks WG6-2 Series - Centrifugal Pumps, Self Priming

Adapter - All Iron: Cast Iron, Bronze Fitted: Cast Iron
Casing - All Iron: Cast Iron, Bronze Fitted: Cast Iron
Casing Wear Ring - All Iron: Steel, Bronze Fitted: Bronze
Impeller - All Iron: Cast Iron, Bronze Fitted: Bronze
Shaft: #316 Stainless Steel
Shaft Seal: Carbon Ceramic SS Buna-N

Gasketed and keyed hook-type
sleeve protects shaft from wear and corrosion in seal area.

JM Type motors have NEMA standard mounting flange, extended steel shaft and dual bearings. These motors offer the advantage of quiet operation, controlled shaft deflection for longer seal life, and bearings sized to provide good service life. All motors are supplied by manufactures with national field service facilities. Flapper and check valves on the suction pipe are not required, but are recommended.

Standard self-adjusting shaft seal for temperatures up to 225°F (107°C) and pressures to 150 psi (1034kpa). Ceramic seat and carbon seal face for long trouble-free service. Special seals are available for higher temperatures and fluids other than water.

After careful assembly and inspection, EVERY pump is factory tested and will meet Hydraulic Institute standards.

60 Hz - 3500 RPM - ODP
Three Phase: 5, 7-1/2 & 10 Hp. - 230/460 Volt

All motors must be installed with a magnetic starter which provides full 3-leg protection. Failure to use correct starter and overloads will void motor warranty.

Enclosed Bronze Impeller is of the latest hydraulic design for maximum effi ciency. It is balanced for vibration-free operation. It is precision fit to shaft with key drive and cap screw lock.

Casing is close grain iron of 30,000 psi minimum tensile strength. Back pull-out design eliminates the need to disturb piping should the pump ever require service - the casing stays in the line.
