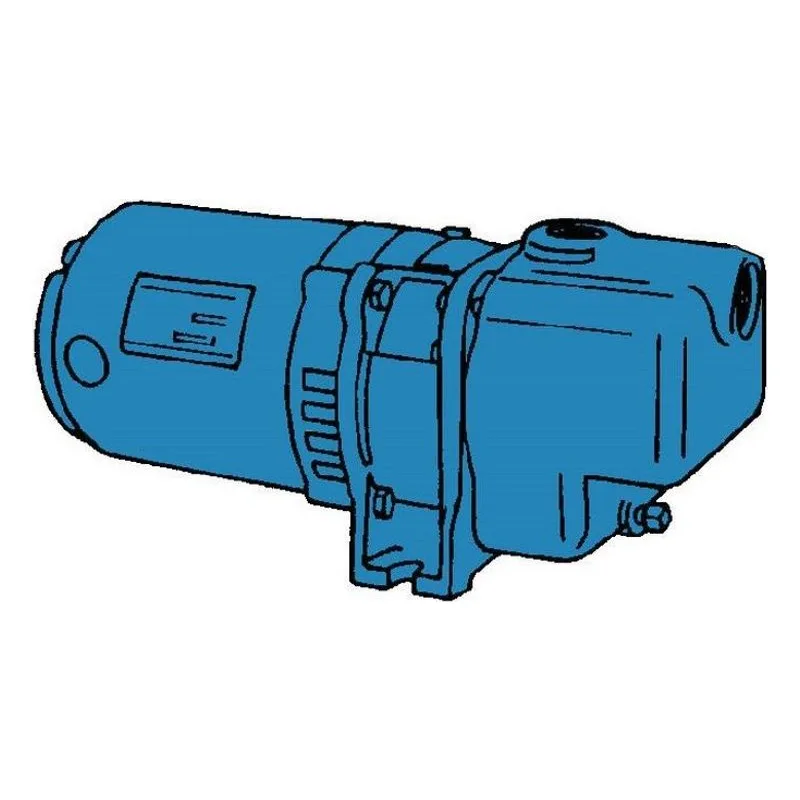

Image shown may not be actual product

3WT3A-BF

Name: 3WT3A-BF PumpCatalog Burks
Brand: Burks
SKU: 3WT3A-BF
Price: 1359.75 USD
Availability: InStock

Burks 3WT3A-BF WT3 Series Close Coupled Self-Priming Centrifugal Pumps, Item Number: -05PE003, Bronze Fitted Construction. 1" NPT Suction, 1" NPT Discharge, Carbon / Ceramic / SS / Buna-N Mechanical Seal. 1/3 HP, 115/230 Volts, 60 Hz, 1Ph (Single Phase), 3500 RPM, ODP-Open Drip Proof Motor. A Crane Brand Product.

Brand: Burks

Series:

WT3, WPT3

Item: 3WT3A-BFModel #: -05PE003

List: ~~$1,813.00~~

$1,359.75

Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.

Returns accepted within 30 days. View Returns Policy

Estimate Shipping

Zip Code

Overview

Literature & Manuals

Find the manuals, product sheets and all the information you need

Type	Title	Link
Data Sheets	Burks Series WPT Self Priming Centrifugal Pump Datasheet	View
Data Sheets	Burks Series WT Self Priming Centrifugal Pump Datasheet	View
Data Sheets	Burks-Series-WST-Self-Priming-Centrifugal-Pump-Datasheet	View
Installation & Operation Manuals	Burks Series WT, WPT, WST Self Priming Centrifugal Pump Manual	View
Parts Breakdowns	Burks Series: WT3, WT3A, WPT3, WPT3A Repair Parts Exploded View Breakdown (2018)	View

Series Information

WT3, WPT3 Information

General Description
Burks WT3 & WPT3 Series - Centrifugal Pumps, Self Priming
Materials of Construction
Adapter - All Iron: Cast Iron, Bronze Fitted: Cast Iron Case - All Iron: Cast Iron, Bronze Fitted: Cast Iron Diffuser - All Iron: Cast Iron, Bronze Fitted: Cast Iron Impeller - All Iron: Cast Iron, Bronze Fitted: Bronze Shaft - Stainless Shaft Seal: Carbon Ceramic SS Viton Suction Sleeve - All Iron: Buna-N, Bronze Fitted: Buna-N Strainer Gasket - All Iron: Buna-N, Bronze Fitted: Buna-N Strainer Basket - All Iron: Stainless, Bronze Fitted: Stainless All Plugs - All Iron: Brass, Bronze Fitted: Stainless
Motors
Ratings: A3WT3A-1/3 HP, Single Phase, 115 Volt, 60 Hz, 3500 RPM, ODP, Split Phase 3WT3A-1/3 HP, Single Phase, 115/230 Volt, 60 Hz, 3500 RPM, ODP, Capacitor Start 33WT3A-1/3 HP, Three Phase, 230/460 Volt, 60 Hz, 3500 RPM, ODP WT5 & WT5X Series: Single Phase: 1/2 thru 2 HP, 115/230 Volt, 60 Hz, 3500 RPM, ODP, Capacitor Start Three Phase: 1/2 thru 2 HP, 230/460 Volt, 60 Hz, 3500 RPM, ODP
Factory Tested
EVERY pump is factory tested and will meet Hydraulic Institute standards
Motor Information
WT3A Series have NEMA Jet Pump Motors. WT5 & WT5X Series have rugged Swimming Pool type motors with oversize ball/ball bearing construction. All motors have open-drip proof construction and are rated with standard NEMA Jet Pump service factors for continuous duty operation at all ratings shown.
Overload Protection
All single phase motors have builtin overload protection. All three phase motors must be installed with a magnetic starter which provides full 3-leg protection. Failure to use correct starter and overloads will void motor warranty. All Single Phase Open Drip Proof Motors Are U.L. Recognized.

Related Products and Parts

Popular Series

Series associated to this product and brand

3WT3A-BF

Brand: Burks

Series:

WT3, WPT3

Item: 3WT3A-BFModel #: -05PE003

Type

Title

Link

Burks Series WPT Self Priming Centrifugal Pump Datasheet

View

Burks Series WT Self Priming Centrifugal Pump Datasheet

View

Burks-Series-WST-Self-Priming-Centrifugal-Pump-Datasheet

View

Burks Series WT, WPT, WST Self Priming Centrifugal Pump Manual

View

Burks Series: WT3, WT3A, WPT3, WPT3A Repair Parts Exploded View Breakdown (2018)

View

General Description

Burks WT3 & WPT3 Series - Centrifugal Pumps, Self Priming

Materials of Construction

Adapter - All Iron: Cast Iron, Bronze Fitted: Cast Iron
Case - All Iron: Cast Iron, Bronze Fitted: Cast Iron
Diffuser - All Iron: Cast Iron, Bronze Fitted: Cast Iron
Impeller - All Iron: Cast Iron, Bronze Fitted: Bronze
Shaft - Stainless
Shaft Seal: Carbon Ceramic SS Viton
Suction Sleeve - All Iron: Buna-N, Bronze Fitted: Buna-N
Strainer Gasket - All Iron: Buna-N, Bronze Fitted: Buna-N
Strainer Basket - All Iron: Stainless, Bronze Fitted: Stainless
All Plugs - All Iron: Brass, Bronze Fitted: Stainless

Motors

Ratings:
A3WT3A-1/3 HP, Single Phase, 115 Volt, 60 Hz, 3500 RPM, ODP, Split Phase
3WT3A-1/3 HP, Single Phase, 115/230 Volt, 60 Hz, 3500 RPM, ODP, Capacitor Start
33WT3A-1/3 HP, Three Phase, 230/460 Volt, 60 Hz, 3500 RPM, ODP
WT5 & WT5X Series:
Single Phase: 1/2 thru 2 HP, 115/230 Volt, 60 Hz, 3500 RPM, ODP, Capacitor Start
Three Phase: 1/2 thru 2 HP, 230/460 Volt, 60 Hz, 3500 RPM, ODP

Factory Tested

EVERY pump is factory tested and will meet Hydraulic Institute standards

Motor Information

WT3A Series have NEMA Jet Pump Motors. WT5 & WT5X Series have rugged Swimming Pool type motors with oversize ball/ball bearing construction. All motors have open-drip proof construction and are rated with standard NEMA Jet Pump service factors for continuous duty operation at all ratings shown.

Overload Protection

All single phase motors have builtin overload protection. All three phase motors must be installed with a magnetic starter which provides full 3-leg protection. Failure to use correct starter and overloads will void motor warranty. All Single Phase Open Drip Proof Motors Are U.L. Recognized.
